• Model NO.：SKZ112
• Press Measuring Range(Kpa)：0-5kn
• Resolution：1n
• Printer：Mini-Type Printer
• Accuracy：1%
• Net Weight：75kg
• Dimension：345mm*300mm*505mm
• Trademark：SKZ
• Origin：China
• HS Code：9024800000
• Production Capacity：1000

Basic Info.

Model NO. SKZ112 Press Measuring Range(Kpa) 0-5kn Resolution 1n Printer Mini-Type Printer Accuracy 1% Net Weight 75kg Dimension 345mm*300mm*505mm Trademark SKZ Origin China HS Code 9024800000 Production Capacity 1000

Product Description

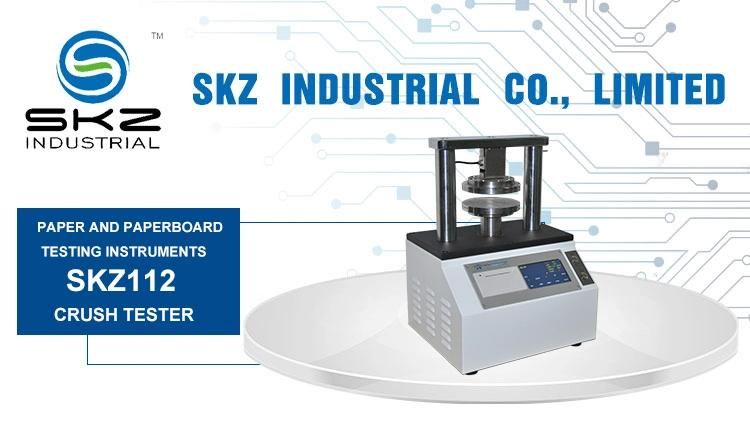

SKZ112 Lab ISO Cardboard Ring Crush tester Edge Crush Tester Flat Press Tester Adhesive Strength Tester and Paper Tube Compress Tester Equipment machine

Crush Tester is used to do the Ring Crush test, Edge Crush Test, Flat Press Test, Adhesive Strength Test, and Paper Tube Compress Test.
We also have the accessories for its each test.

Standards:
ISO 3070, ISO 12192-2011, ISO 7263-2011, ISO 3035-2011

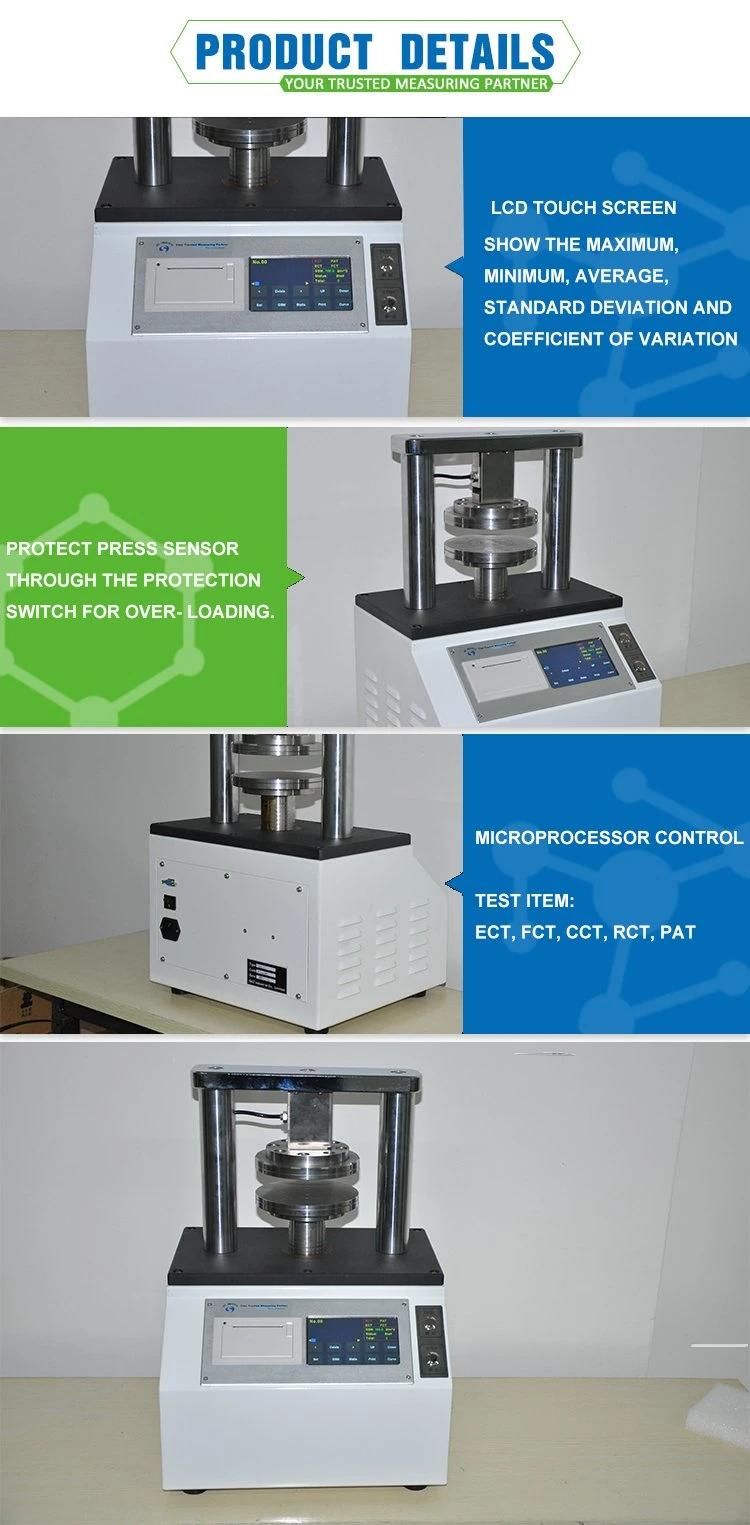

Feature:
1. Microprocessor control, automatically carry the test according to testing requests.
2. Protect press sensor through the protection switch for over- loading.
3. Analyzing the group of testing data and to show the maximum, minimum, average,
4. Standard deviation and coefficient of variation displayed by color touch screen, print out the data.

Technical parameter:

Press measuring range	0-5KN
Resolution	1N
Accuracy	±1%
Speed	12.5±2.5mm/min
Platen distance from top to bottom	0-78mm (customized)
Printer	mini-type printer
Power	AC220V 50Hz 1A
Working condition	Temperature: 0-40ºC, relative humidity <85%
Dimension	345mm×300mm×505mm
Weight	75kg
