• Model NO.：GD-3536
• Printing：No
• Communication Port：No
• Other Functions：Manually Adjust Heating Rate
• Dimension：350*290*350mm
• Delivery Time：10 Working Days(If Urgent, We Can Push)
• Transport Package：Wooden Case for Gd-3536
• Trademark：GOLD
• Origin：Chongqing, China
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. GD-3536 Printing No Communication Port No Other Functions Manually Adjust Heating Rate Dimension 350*290*350mm Delivery Time 10 Working Days(If Urgent, We Can Push) Transport Package Wooden Case for Gd-3536 Trademark GOLD Origin Chongqing, China Production Capacity 100 Sets/ Month

Product Description

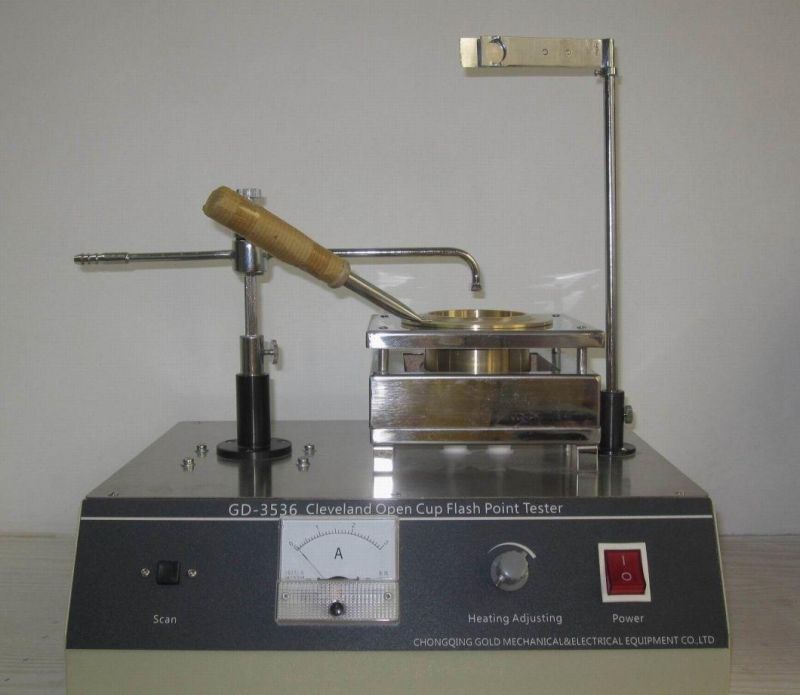

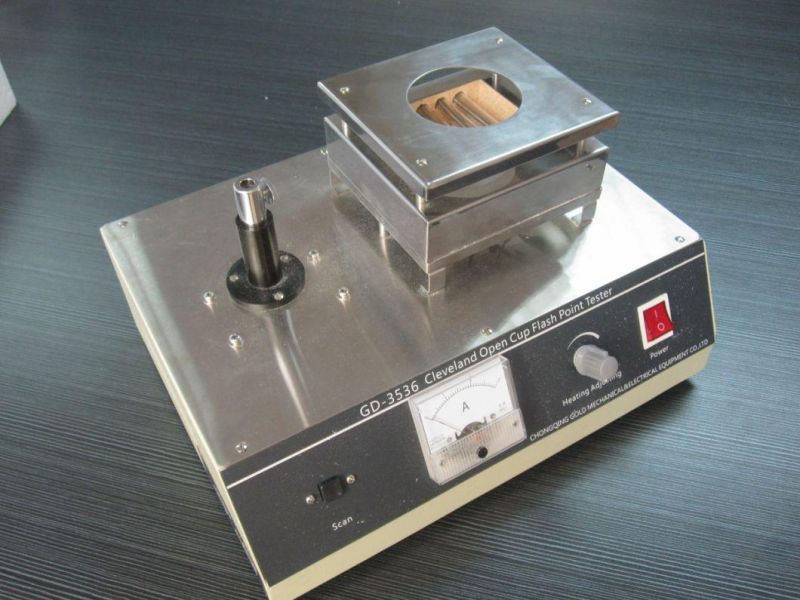

Manual Type Cleveland Open Cup Flash Point Tester ASTM D92



Introduction:
At which temperatures will your sample burn, ignite, or cause fire? Volatility is directly related to a substance's flash point temperature (flammability).

Our Flash Point Analyzer manual type is designed and made as per ASTM D 92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester.  It can safely and easily determines the values you require for the processing, storage, transportation and classification of dangerous liquids.


Features:
1.  It adopts special heating furnace to ensure the safety of test. The heating power is continuously adjustable.
It can meet requirements of test.

2.  The instrument adopts desktop structure. The stainless steel working table and furnace shell make it
beautiful and elegant.

3.  The instrument is fully self-contained complete. The operator can do determination as long as connecting
with coal gas or other civil gas.

4.  It equipped with flame extinguishing cover which accord with requirements of test.


Specifications:

Product name	Manual Type Cleveland Open Cup Flash Point Tester ASTM D92
Power supply	AC(220±10%)V, 50Hz
Heating device	Quartz tube furnace heating, no naked fire, explosion prevented. The power is adjustable from 0W to 600W
Test flame applicator	It applies the test flame automatically
Thermometer	(-6~400)ºC. It is the same as thermometer ASTM 11C
Igniting device	(1) Ignition source: coal gas(or civil gas) (2) Flame diameter is 3.2mm-4.8mm
Ambient temperature	(-10~50)ºC
Relative humidity	≤85%
Maximum power consumption	650W
Dimension	350*290*350mm (thermometer is not included)

Related Products:

Parameter	GD-3536	GD-3536-1	GD-3536A	GD-3536D
Temperature range	Ambient temperature~400ºC	Ambient temperature~400ºC	Ambient temperature~400ºC	Ambient temperature~400ºC
Ignition mode	Ignite once manually	Ignite once manually	Ignite once manually	Automatic
Temperature display	Thermometer	LCD	Color LCD	Color LCD
Printing	No	No	Yes	Yes
Communication port	No	No	No	Yes
Other function	Manually adjust heating rate	Automatically control temperature and display by LCD	Automatic	Automatic, with RS232 communication port
Dimension	350*290*350mm	340*320*450mm	410*360*420mm	520*380*310mm

Detail Images:
