Wdw-50kn Computer Controlled Electronic Universal Tensile Testing Machine
Jinan Kason Testing Equipment Co., Ltd.- Type:Universal Testing Machine
- Maxcapacity:50kn
- Accuracy Grade:1 or 0.5
- Load Way:Electronic Load
- Loading Method:Static Load
- Display:Computer Display
Base Info
- Model NO.:WDW-50
- Control:Computer Control
- Weight:100-500Kg
- Power Source:AC220V
- Oil Cylinder Position:Motor Under
- Transport Package:Plywood Exporting Package
- Specification:350kg 1.37CBM
- Trademark:HST
- Origin:Jinan, Shandong, China
- HS Code:9024109000
- Production Capacity:1200sets,Month
Description
Basic Info.
Model NO. WDW-50 Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Motor Under Transport Package Plywood Exporting Package Specification 350kg 1.37CBM Trademark HST Origin Jinan, Shandong, China HS Code 9024109000 Production Capacity 1200sets/MonthProduct Description

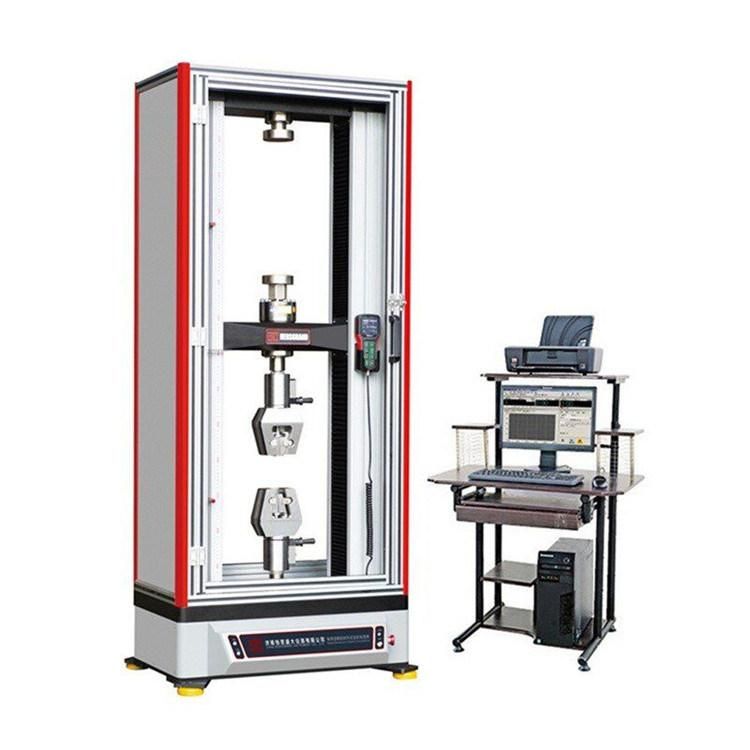

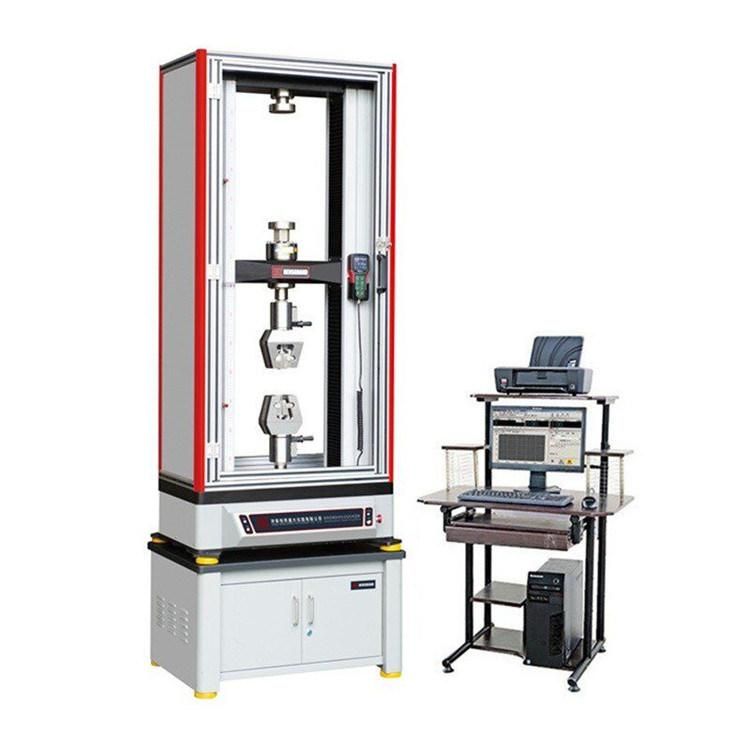

WDW-50kN Computer Controlled Electronic Universal Tensile Testing Machine
1. Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2.Standard:
ASTM, ISO, DIN, GB and other international standards.
3.Main Technical Parameters:
Model | WDW-50 |
Max. load | 50 kN |
Structure | Four-column floor model, (upper is tensile and lower is compression; upper is compression and lower is tensile) |
Control method | Computer control |
Load accuracy | 1 class/0.5 class (optional) |
Load range | 2%~100%F·S/0.4%-100% FS (optional) |
Resolution | 1/300000 |
Measuring range of deformation | 2%-100% |
Accuracy Indication of deformation | ≤±1% |
Disp. indicating relative error | ≤±1% |
Displacement Resolution | 0.01mm |
Test Speed | 0.05~500mm/min(can be customized) |
Effective Tensile space | 700mm(can be customized) |
Effective Compression space | 700mm(can be customized) |
Effective Testing width | 400mm(can be customized) |
Power supply | AC220V±10%,50Hz (can be customized) |
Load-extension, Force - time, force - displacement ect. more curve to choice
Excel, word and template test report, and the report can be edited customized.
