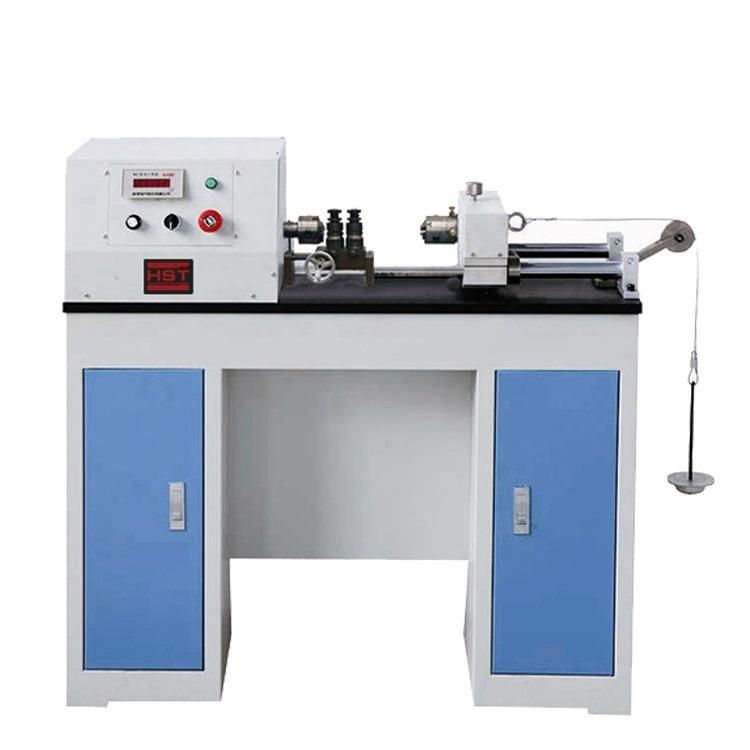

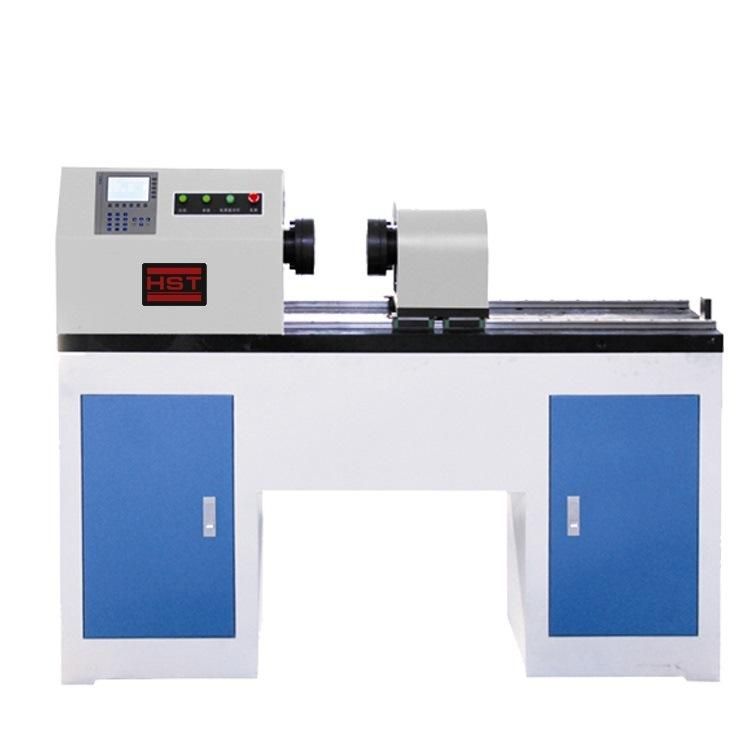

• Model NO.：NDW-500
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC380V
• Transport Package：Plywood Exporting Package
• Specification：350kg, 1.35CBM, color can customize
• Trademark：HST
• Origin：Jinan, Shandong, China
• HS Code：9024109000
• Production Capacity：1000 Sets,Month

NDW-200NDW-500NDW-1000NDW-2000NDW-3000NDW-5000Maximum Torque(N/m)1002005001000200030005000Control MethodConstant torque and constant speed rotation, constant speed twist angle , close loop control mode  Machine level1 ClassTorque Test Range(F·S)2%~100%F·STorque value relative error(%)≤±1Torque display resolution1/20000Torsional Angle Test Range(F·S)2%~100%Torsional Angle value relative error (%) Better than ±0.5Torsional Angle display resolution1/20000intersection angle value relative error (%)≤±1intersection angle display resolution(°)0.01 Max. torsion Angle99999°Torsional angular rate control range (°/min)0.05-800Chuck spacing effectively (mm)600Power Supply220V±10%,50HzConfiguration
3.1 Desktop high strength wire torsion host--- 1 Set
3.1.1 High precision arc synchronous gear system --- 1 Set
3.1.2 Efficient cycloidal reducer --- 1 Set
3.1.3 High precision Taiwan ABBA linear bearings --- 1 Sets
3.1.4 Reverse the special auxiliary equipment
3.2 Measurement and Control Systems:
2.1 Photoelectric revolving speed measuring device ---- 1 Set ;
2.2 DC speed governing drive ---- 1 Set ;
2.3 DC variable speed motors---- 1 Set ;
3.2.4 High precision torsion sensor --- 1 Pc
3.2.5 Lenovo Computer --- 1 Set
3.2.6 HPA4 Color Printer --- 1 Set
3.2.7 Measurement and control system --- 1 Set
3.2.8 Windows operate testing machine control software --- 1 set
