• Model NO.：GDZG-300 Series
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC220V
• Rated Voltage：40kv,60kv,120kv,200kv,300kv
• Rated Current：2mA,3m a,4mA,5mA
• Power Supply：AC220V± 10%, 50Hz
• Ripple Coefficient：≤ 0.5%
• Voltage Meter Precision：± (1.0 %of The Reading± 2digit)
• Current Meter Precision：± (1.0 %of The Reading± 2digit)
• Relative Humidity：≤ 85%(No Condensate)
• Transport Package：Wooden Case
• Specification：ISO, SGS
• Trademark：HV Hipot
• Origin：China
• HS Code：9030339000
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. GDZG-300 Series Control Manual Control Weight 100-500Kg Power Source AC220V Rated Voltage 40kv/60kv/120kv/200kv/300kv Rated Current 2mA/3m a/4mA/5mA Power Supply AC220V± 10%, 50Hz Ripple Coefficient ≤ 0.5% Voltage Meter Precision ± (1.0 %of The Reading± 2digit) Current Meter Precision ± (1.0 %of The Reading± 2digit) Relative Humidity ≤ 85%(No Condensate) Transport Package Wooden Case Specification ISO, SGS Trademark HV Hipot Origin China HS Code 9030339000 Production Capacity 1000PCS/Year

Product Description

General introduction

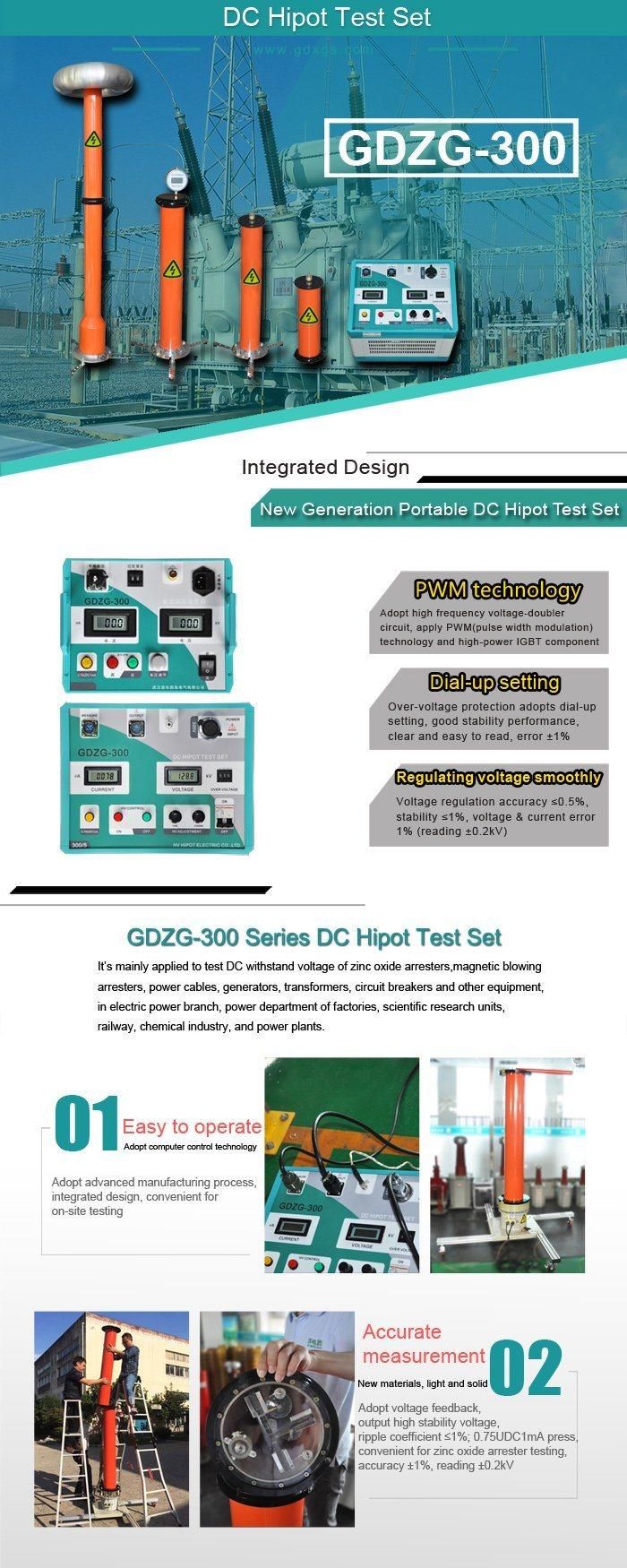

GDZG-300 series of DC high voltage tester is testing DC high voltage for zinc oxide arrester, magnetic blowing arrester, power cables, generators, transformers, switches and other equipments, which is suitable for electric power branch, power department of factories, scientific research units, railway, chemical industry, power plants.


Features

1. Simple operation and complete function, easy for wild work.

2. Higher voltage stability, smaller ripple coefficient.

3. More reliable and stable, can stay continuous discharge directly to earth.

4. High precision, exact measure, figure display, with good anti-interference function.

5. It has high stabilization of voltage regulation and regulates voltage smoothly.

6. Number dial switch for over-voltage set function, which can display figures of voltage clearly.

7. For Combined machine design of 40KV equipment, the high voltage can be output directly with earth cable. Other type of equipments can be supplied according to customer's specific requirements.


Specifications


Rated  voltage	40kV/ 60kV/ 120kV/ 200kV/ 300kV
Rated  current	2mA/ 3mA/ 4mA/ 5mA
Power  supply	AC220V± 10%, 50Hz
Ripple  coefficient	≤ 0.5%
Voltage  meter  precision	± (1.0 % of the reading± 2 digit)
Current  meter  precision	± (1.0 % of the reading± 2 digit)
Voltage  stabilization	stochastic  wave  , ≤ 1%   when power wave± 10%
Environmental	-10~40  degree
Relative  humidity	≤ 85% (no  condensate)
