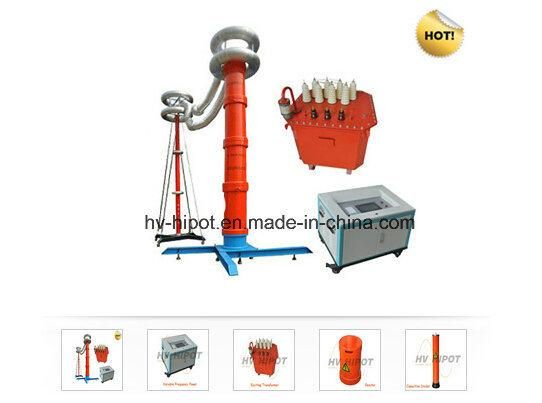

AC Resonance Test System (GDTF-HTS) for Substation Electrical Apparatus

HV Hipot Electric Co., Ltd.
  • Rated Output Voltage：0 ~ 800kv (AC ) and Below
  • Output Frequency：20 ~ 300Hz
  • Waveform of Resonance Voltage：Pure Sine Wave, Thd <1.0%
  • Max. Test Capacity：1000kVA and Below
  • Duty Cycle：Full Power Output, Continuous Working Time of 15mi
  • Quality Factor：30 ~ 90

Base Info

  • Model NO.：GDTF-HTS
  • Frequency Adjustment Sensitivity：0.1Hz, Instability <0.05%
  • Power Supply：380,220V +-15% , 50Hz +-5%
  • Transport Package：Wooden Case
  • Specification：ISO, SGS
  • Trademark：HV Hipot
  • Origin：Wuhan China
  • HS Code：9030339000
  • Production Capacity：500PCS,Year

Description

Rated output voltage0 ~ 800kV (AC ) and below;Output frequency20 ~ 300Hz;Waveform of Resonance voltagePure sine wave, THD <1.0%;Max. Test capacity1000kVA and below;Duty CycleFull power output, continuous working time of 15min;Quality factor30 ~ 90Frequency adjustment sensitivity0.1Hz, instability <0.05%Power Supply380/220V +-15% / 50Hz +-5%
AC Resonance Test System (GDTF-HTS) for Substation Electrical Apparatus
