• Model NO.：STLNJ-2
• Loading Method：No
• Display：Needle
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：ASTM D3910 Emulsified Asphalt Slurry Seal Mixtures
• Application：Determine Setting Time of an Emulsified Asphalt SL
• Pressure Gauge：0-1.0MPa
• Torquemeter：0-600n.Cm
• Rubber Foot with Hardness 60, Size：60, Size: 28.6 (Diameter)*6.4mm
• Ring Moulds：6*60mm, 10*60mm
• Transport Package：Wooden Case
• Specification：0.1CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STLNJ-2 Loading Method No Display Needle Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position No Product Name ASTM D3910 Emulsified Asphalt Slurry Seal Mixtures Application Determine Setting Time of an Emulsified Asphalt SL Pressure Gauge 0-1.0MPa Torquemeter 0-600n.Cm Rubber Foot with Hardness 60, Size 60, Size: 28.6 (Diameter)*6.4mm Ring Moulds 6*60mm, 10*60mm Transport Package Wooden Case Specification 0.1CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

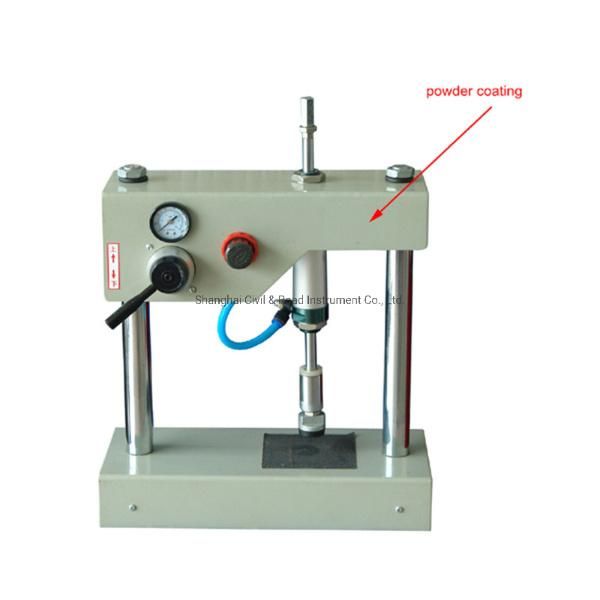

STLNJ-2 ASTM D3910 Emulsified Asphalt Slurry Seal Mixtures Cohesive Force Tester

Introduction:
Emulsified Asphalt Cohesion Tester is designed and made as per T 0754-2011 "Cohesive Force Test for Slurry Mixtures" in the Traffic Standard of People's Republic of China JTG E20-2011 "Highway Engineering Bitumen and Bituminous Mixtures Test Code" .
Emulsified Asphalt Cohesion Tester is used to determine setting time of an emulsified asphalt slurry seal mixture.
Features:
1.Emulsified Asphalt Cohesion Tester adopts desktop structure .Novel design ,reasonable structure and convenient to use .
2.The structure design of the instrument ,the specification size of the test apparatus ,act ,each meets the requirement of T 0754-2011 standard .
3.Emulsified Asphalt Cohesion Tester  is convenient to carry .And it can be used both in lab and on site ,and it widely used in the construction organizations ,scientific research institutes to analysis and confirm the emulsified asphalt and aggregate bond degree .

Parameters.

Rubber foot with hardness 60, size: 28.6 (diameter)×6.4mmRing moulds(6×60mm, 10×60mm)

Circular test mode	Φ 60mm*6mm;Φ60mm*10mm
Torque spanner	(0-5)N•m
Power supply	AC 220V+10%;50Hz
Pressure gauge	0-1.0MPa
Torque meter	(0-600N.CM)
Ring moulds	(6×60mm, 10×60mm)
The pressure head diameter	Φ 28 mm
The diameter of the rubber pad	28.6 mm
the rubber gasket at the bottom of the pressure head	diameterΦ28.6 mm thickness 6.4 mm hardness 60 HRC
The pressure head pressure	the pressure on the style stage is 128.5 N± 1.0 N   head falling speed is not more than 8 cm/s
