• Model NO.：GD-4508C
• Liquid Circulation：by Magnet Circulat
• Tensile Speed：10mm,Min and 50mm,Min, Two Grades
• Measurement Accuracy：+-1 mm
• Delivery Time：10 Working Days(If Urgent, We Can Push)
• Transport Package：Standard Wooden Case for Determine Ductility of Bi
• Trademark：GOLD
• Origin：Chongqing of China
• HS Code：9031809090
• Production Capacity：100PCS,Mon

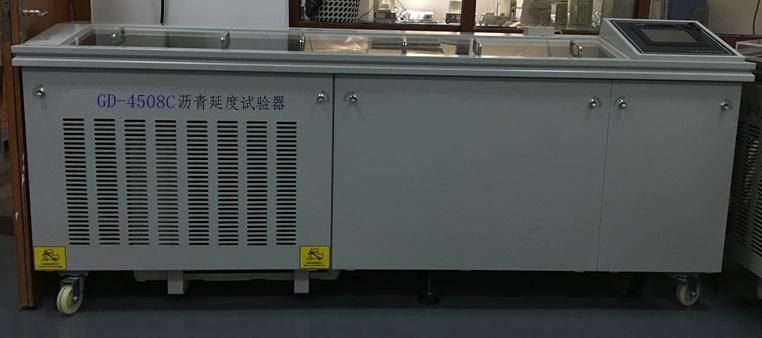

Product nameGd-4508c Bitumen Ductility test apparatusPower supplyAC220V(-5%~+10%),50HzMeasuring range1.5m(±10mm)Heating modeElectrical heatingHeating power3000WBath liquid circulationMagnet pumpTemperature range5ºC~49ºC, adjustable,
Digital display, resolution 0.01ºCTemperature accuracy±0.1ºCSpeed10 mm/min or 50mm/min. Two gradesMeasuring accuracy±1mmAmbient temperature-10ºC~+35ºCRH≤85%Overall dimension2365mm×520mm×1000mmMaximum power consumption4100W

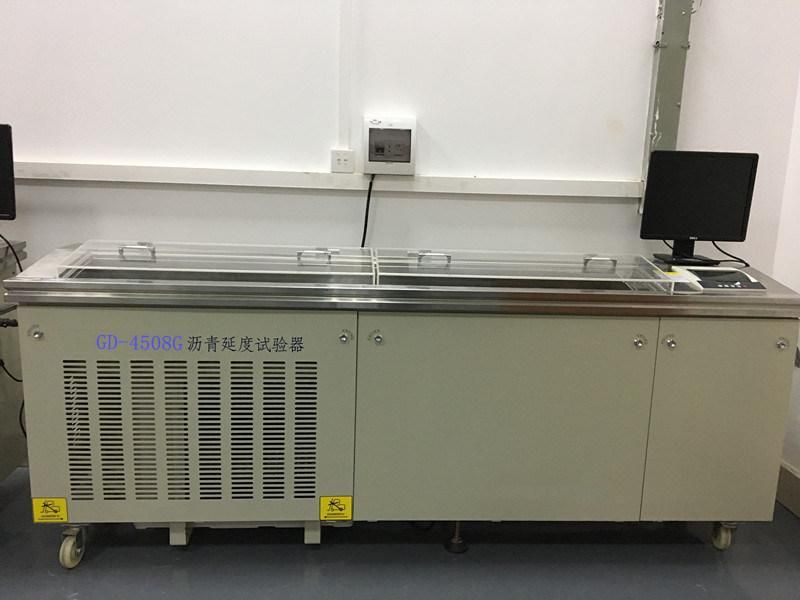

Related Products:ParameterGD-4508CGD-4508G(DUAL-PATH)Auto./ManualSemi-autoAutomaticMeasuring range1.5m±10mm2mTemperature range5~50ºC5~50ºCSpeed10mm/min, 50mm/min10~50mm/min,adjustableForce measurementnoyesPC communicationnoyessize2365*520*1000mm2365*520*1000mm



Company  Information:

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

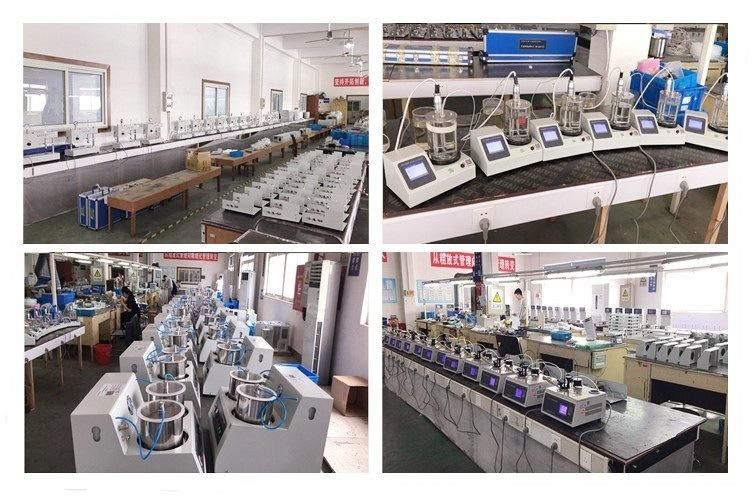

We mainly design and manufacture the petroleum testing instrument
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument .


Contact Us:
If you have interest, please feel free to contact with me:
Chongqing Gold Mechanical&Electrical Equipment Co., Ltd
website: chinainstrument.en.made-in-china.com
