• Model NO.：GDYJ-502A
• Test Stndards：IEC156,Is6792,BS5874, ASTM D1816 , ASTM D877
• Max Output Voltage：AC80kv,100kv
• Max. Test Times：9
• Rate of Voltage Rise：0.5kv,S, 2kv,S, 3kv,S, 5kv,S
• Temperature Measurement Range：0°c to 70°c, or Better
• Data Storage：100 Groups
• Stir Time：0~999s
• Oil Temperature Test：Yes
• Transport Package：Plywood Case
• Specification：50KG
• Trademark：GOLD
• Origin：Chongqing
• HS Code：9030849000
• Production Capacity：1000 Pieces,Month

Basic Info.

Model NO. GDYJ-502A Test Stndards IEC156/Is6792/BS5874, ASTM D1816 , ASTM D877 Max Output Voltage AC80kv/100kv Max. Test Times 9 Rate of Voltage Rise 0.5kv/S, 2kv/S, 3kv/S, 5kv/S Temperature Measurement Range 0°c to 70°c, or Better Data Storage 100 Groups Stir Time 0~999s Oil Temperature Test Yes Transport Package Plywood Case Specification 50KG Trademark GOLD Origin Chongqing HS Code 9030849000 Production Capacity 1000 Pieces/Month

Product Description

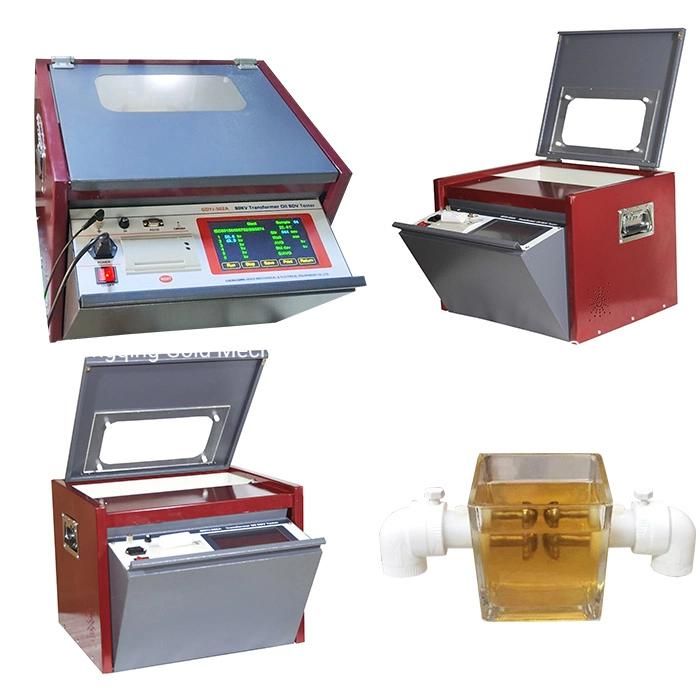

80kv 100kv Automatic Transformer Oil Dielectric Strength Insulating Oil Breakdown Voltage Bdv Tester

Introduction:

• 80kv 100kv Automatic Transformer Oil Dielectric Strength Insulating Oil Breakdown Voltage Bdv Tester is developed according to IEC156 Insulating Oil Dielectric Strength Testing Method;

• The oil test vessel with temperature measurement unit, so it can detect oil temperature.

• With 8 Kinds of test mode as optional: IEC156, IS6792, BS5874, ASTM D1816 , ASTM D877, Proof test, 5 minutes standard test, Manual test;

• 80kv 100kv Automatic Transformer Oil Dielectric Strength Insulating Oil Breakdown Voltage Bdv Tester has large LCD display, all the selection can be done by touch panel with color LCD;

• 80KV Transformer Oil Dielectric Strength Tester Oil BDV Analyzer Price also with micro-printer and can store 100 groups data, test data can also be unload to PC and output word report automatically;

• 80KV Insulating Oil Tester Dielectric Strength Test Machine Transformer Oil Breakdown Voltage Tester is multi-functional, stable, and easy for operation



Specifications:



1	Output voltage	AC 0V~80KV
2	Rate of voltage rise	0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5%
3	Max. test times	9
4	Stir time	0~999s
5	Wait time	0~999s
6	Measurement accuracy	±(1% of full scale + 2 digits)
7	Resolution	0.1KV
8	Temperature measurement range	0°C to 70°C, or better
9	Temperature resolution	1°C, or better
10	Data storage	100 groups
11	Weight	38kg
12	Size	550 mm*500mm*580mm
13	Power supply	AC220V, 50Hz
14	Working environment	Room temperature to 45°C, humidity<85%

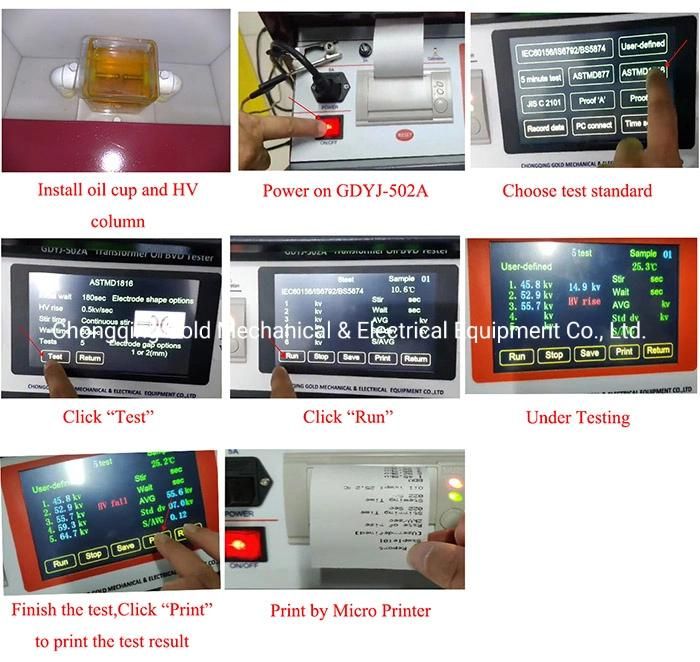

Testing Process of GDYJ-502A Transformer oil BDV Tester:

Three Sets GDYJ-502A 80KV Transformer Oil BDV Tester Sold to Philippines:

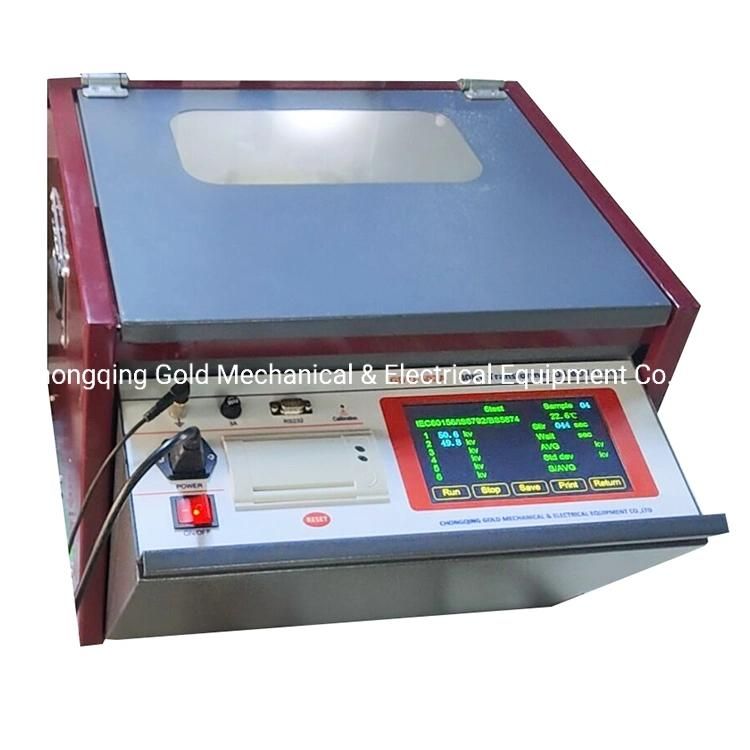

Inspection GDYJ-502A Transformer Oil Breakdown Voltage Tester:

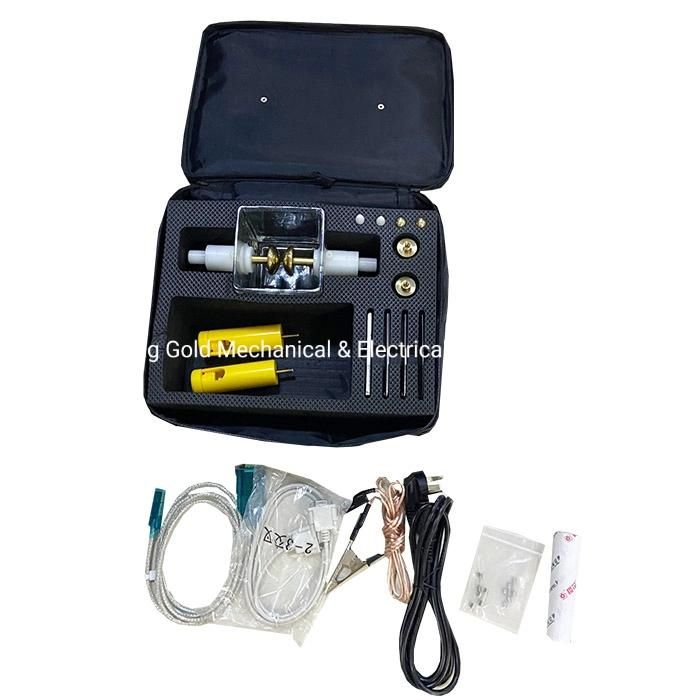

Spare Parts



Customer Feeback


Customer Visit


Exhibition
