• Model NO.：GW-8004
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：None
• Transport Package：Wooden Case
• Specification：1150 (L) * 9800 (W) * 1750 (H) mm
• Trademark：Great Win
• Origin：China
• HS Code：9024800000
• Production Capacity：500pieces,Year

Basic Info.

Model NO. GW-8004 Accuracy Grade 0.5 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position None Transport Package Wooden Case Specification 1150 (L) * 9800 (W) * 1750 (H) mm Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500pieces/Year

Product Description

Usage:

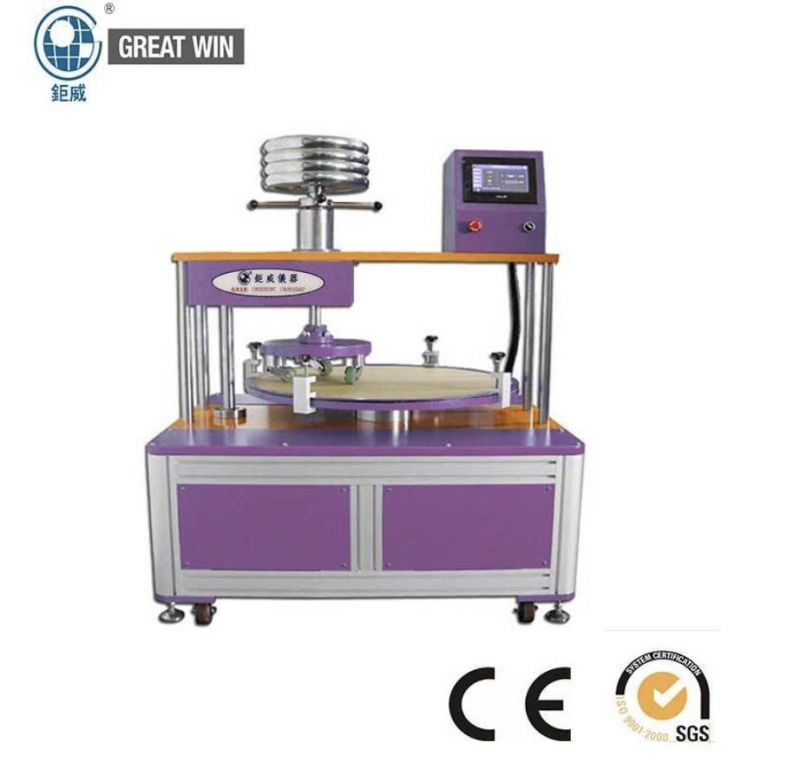

 The test machine is equipped with automatic counting and automatic transmission functions, the test base can be convenient to replace the test floor, the turntable is equipped with 3 roller mounting card, convenient to disassemble and install the roller, the machine structure is made of steel, abrasion resistance, high strength, to ensure that the flatness and verticality of the frame in the state of full load experiment within the tolerance range.


Standard:
  1. BS EN 425-2002 (R2012): Resilient and Laminate Floor Coverings - Castor Chair Test Resilient floor coverings - Determination of chair casters effects.
  2.BS EN 985-2001 Textile floor coverings -. Castor chair test textile floor casters wheelchair test
  3.ISO 4918-2009 Resilient, textile and laminate floor coverings - Castor chair test stratified elastic textile floor coverings - foot wheelchair test
  4.ISO 10581-2011 Resilient floor coverings - Homogeneous poly (vinyl chloride) floor covering - Specification Elastic Carpet - Homogeneous PVC carpet - Specification
  5.ANSI-NALFA-LF-01-2008.3.6 / ANSI-NALFA-LF-01-2011 Castor Chair Resistance-- North American Laminate Flooring Association chair casters anti-abrasion test
  6. GB / T 2611-2007: "General requirements for testing machines.".
  7. GB / T 5226.1-2008: "Safety of machinery - Electrical machinery electrical equipment Part General technical conditions."


Main Specifications:


Control: PLC control interface
Test function:  caster-resistant flooring effect test / resistant floor caster friction durability test
Place the sample table size  : ¢ 800mm
Sample size : ¢ 750mm

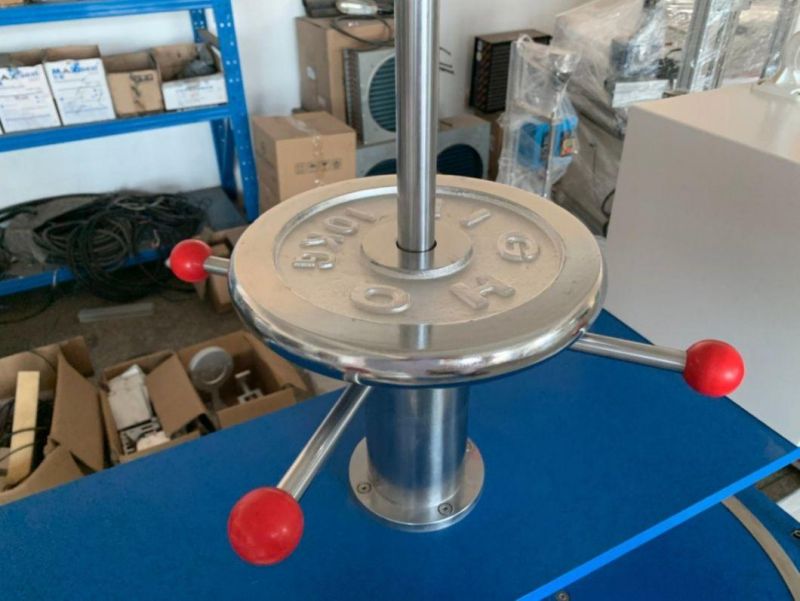

Load  : 90kg
Test speed:  rotary table (20 + 0 / -1) r / min, caster assembly (50 ± 1) r / min
Timer: (0 ~ 999999) times (25,000 times the standard can be set)
Run time control : After the rotation of the (180 ± 10) s, and maintain the platform stops (5 ± 2) s
Test way: A continuous cycle test
Power: 220V, 600W
Dimensions approximately :(L) 1460 × (D) 1000 × (H) 1750mm
Weight: About 180kg
