• Model NO.：GDYJ-502A
• Oil Temperature Measurement Range：0°c to 70°c, or Better
• Power Supply：AC220V, 50Hz,60Hz
• Net Weight：38kg
• Transport Package：Plywood Case for Transformer Oil Bdv Tester
• Specification：50kg
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9030849000
• Production Capacity：500 Pieces,Month

Basic Info.

Model NO. GDYJ-502A Oil Temperature Measurement Range 0°c to 70°c, or Better Power Supply AC220V, 50Hz/60Hz Net Weight 38kg Transport Package Plywood Case for Transformer Oil Bdv Tester Specification 50kg Trademark GOLD Origin Chongqing, China HS Code 9030849000 Production Capacity 500 Pieces/Month

Product Description

80kV Automatic Transformer Oil Dielectric Strength Test Set Insulating Oil Breakdown Voltage BDV Tester

1. Introduction

1) GDYJ-502A Transformer Oil Breakdown Voltage BDV Tester is used to measure breakdown voltage and dielectric strength value of transformer oil or insulating oil.
2) With 8 Kinds of test mode as optional: IEC156, IS6792, BS5874, ASTM D1816 , ASTM D877, Proof test, 5 minutes standard test, Manual test
3) The oil test vessel with temperature measurement unit, so it can detect oil temperature.

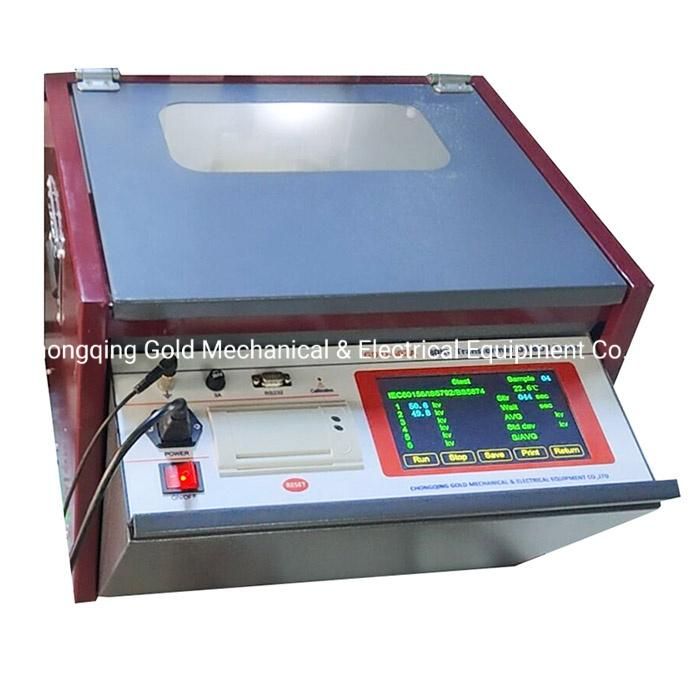

4) GDYJ-502A Insulating Oil Dielectric Strength Tester has large LCD display, all the selection can be done by touch panel with color LCD;
5) It also with micro-printer and can store 100 groups data, test data can also be upload to PC and output word report automatically;


2. Technical Index

1). Output voltage: AC 0~80KV (100KV for choice)
2). Rate of voltage rise: 0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5%
3). Max. test times: 9
4). Stir time: 0~999s
5). Wait time: 0~999s
6). Oil Temperature measurement range: 0°C to 70°C, or better
7). Data storage: 100 groups
8). Power supply:  AC220V, 50Hz/60Hz

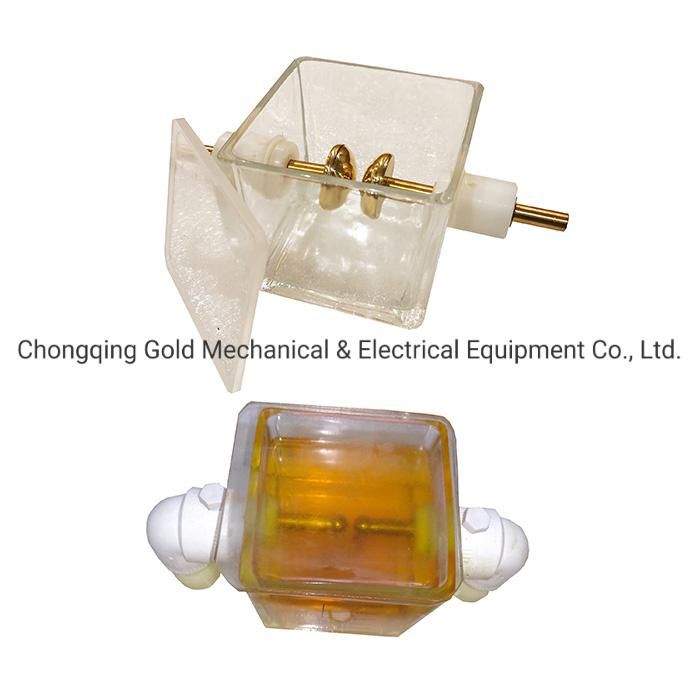

3. Oil Cup for GDYJ-502A Transformer Oil BDV Test Set

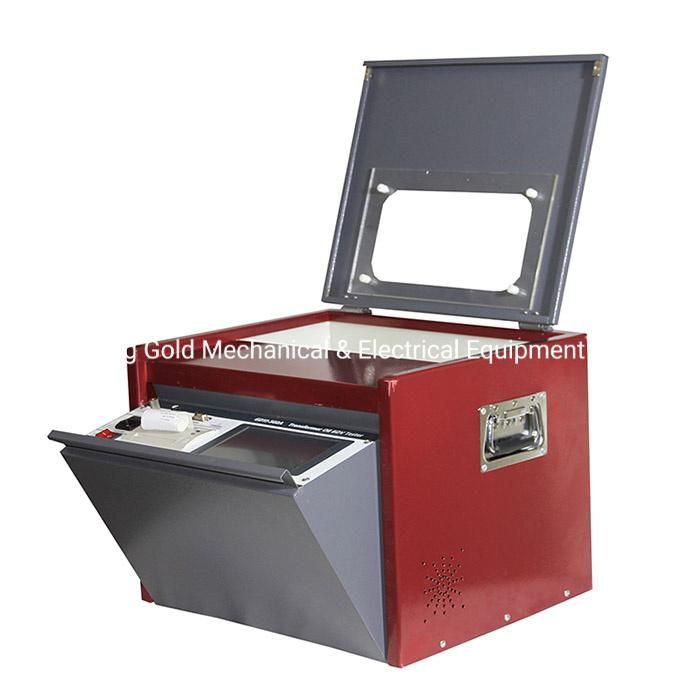

4. Product Pictures

5. Main Products

6. Our Company

Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd was founded in 2008. We have a strong team including top sales, skilled engineers and we have our own manufacture with high quality. we mainly design and manufacture the Transformer Tester, Circuit Breaker Analyzer, CT PT Analyzer, Hipot Tester , Relay Tester and so on for more than 10 years.

After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of oil purifier and electrical testing equipment in China;

We have developed sales channels in many countries such as UAE, Saudi Arabia, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide.
And we have gained strong advantage and high reputation in international market.

7. Exhibition
