Non Linear 5degrees/Min Fast Temperature Change Chamber

Guangdong Yuanyao Test Equipment Co., Ltd.
  • Max Diameter of Workpiece：900mm
  • Mass Scope of Workpiece：<900kg
  • Type：Material Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load

Base Info

  • Model NO.：YICT-408
  • Loading Method：Static Load
  • Display：Digital
  • Control：Controller
  • Weight：500-1000Kg
  • Power Source：AC380V
  • Inner Size：600*850*800mm
  • External Size：1600*2030*1750mm
  • Volume：408 Liters
  • Temp. Range：-40degrees---+150degrees(Ks)
  • Temp. Rapid Change Range：-40degrs--+85degrs
  • Heating&Cooling Rate：5degrees,Min
  • Temp. Fluctuation：+,- 2 Degree
  • Temp. Uniformity：+,-1.5degrees
  • Interior Chamber Material：SUS#304 Stainless Steel Plate
  • Exterior Chamber Material：Stainless Steel Plate + Powder Coated
  • Transport Package：Strong Wood Carton
  • Specification：SGS, TUV Certification
  • Trademark：Yuanyao
  • Origin：China
  • HS Code：9032100000
  • Production Capacity：10 Sets,Month

Description

ModelYICT-225YICT-306YICT-1000Inner chamber size w×h×d(cm)50×75×6060×85×60Exterior chamber size w×h×d(cm)Depends on inner chamber sizeTesting temperature range -70~150ºC(KS);-40~150ºC(KL);-20~150ºC(KR)Fast change temperature range -70ºC kinds:-50~+85ºC(KS);-40ºC kinds:-20~+85ºC(KL);-20ºC kinds:0~+85ºC(KR)Heating-up&Cooling-down speed3ºC/min,5ºC/min,8ºC/min,10ºC/min,15ºC/min(Linear or Non-linear)PerformanceTemp.fluctuation±2.0ºCTemp.uniformity±1.5ºCTemp.resolution0.01ºCHeating-up time -70~150ºC<60min;-40~150ºC<50min;-20~150ºC<35minCooling-down time +20~ -70ºC<70min;+20~ -40ºC<55min;+20~ -20ºC<35minMaterialExterior chamber materialCold-rolled steel+Powder coatingInterior chamber materialSUS#304 Stainless steelInsulationPU fiberglass woolSystemWind circulationCooling fanHeating systemSUS#Stainless steel high-speed heaterRefrigeration systemImported tecumseh compressor+fin type evaporator+air(water)cooling systemOther componentsMulti-layer vacuum glass observation window,cable port(50mm),controlling status indicator lamp,chamber light,specimenloading shelf(2pcs,position adjustable)Safety protection deviceOver-heat protection circuit breaker,compressor overload protection,control system overload protection,humidifying system overload protection indicator lampPower supplyAC 3phase380V 60/50HzCustomization serviceNon-standard or special requirements are all welcome
Customization service is available, we can set & design equipments according to your own specific requirements!
Non Linear 5degrees/Min Fast Temperature Change Chamber

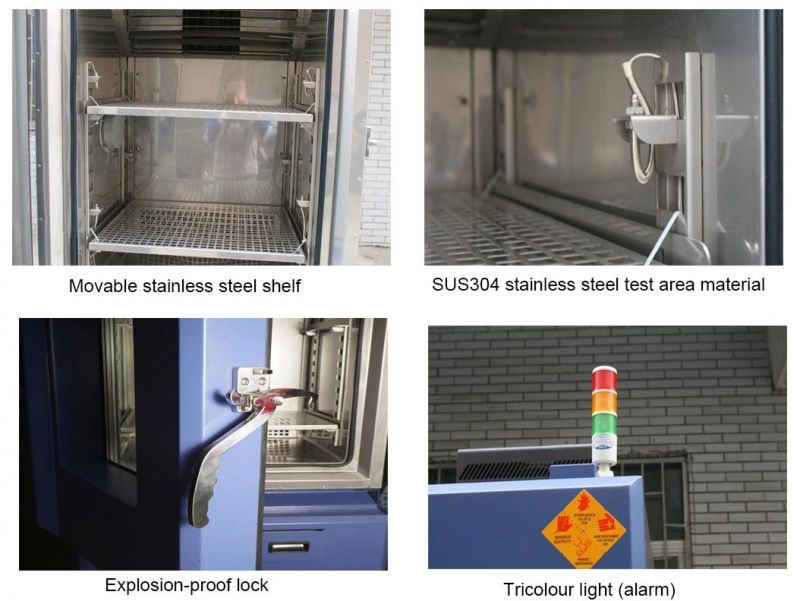

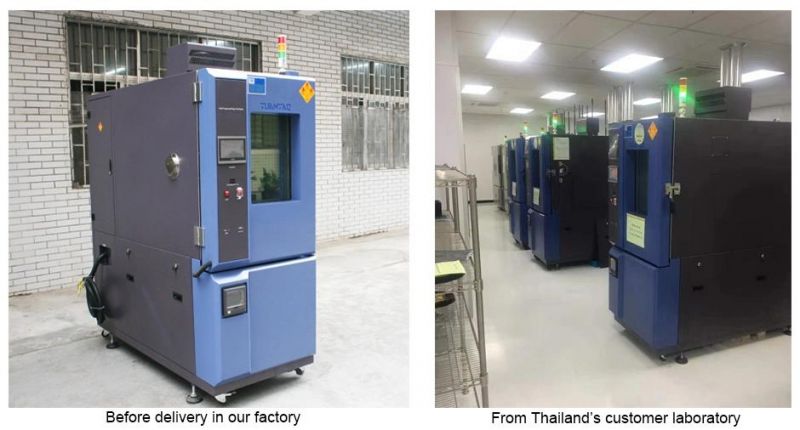

Product detailes:

Non Linear 5degrees/Min Fast Temperature Change Chamber

Company profile

Non Linear 5degrees/Min Fast Temperature Change Chamber

Non Linear 5degrees/Min Fast Temperature Change Chamber
Non Linear 5degrees/Min Fast Temperature Change Chamber
Non Linear 5degrees/Min Fast Temperature Change Chamber
Non Linear 5degrees/Min Fast Temperature Change Chamber

Non Linear 5degrees/Min Fast Temperature Change Chamber

In addition to water rain spray test chamber, we are also manufacturing:

Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.

Other styles / size with different configurations are available upon request, welcome to enquire and purchase!
Non Linear 5degrees/Min Fast Temperature Change ChamberIf you want to know more about water resisitance test chamber,please feel free to contact us.
