• Model NO.：KMHW-8
• Temp. Constancy：+,-0.5oc
• Humidity Constancy：+,-2.5%R.H.
• Temp. Uniformity：+,-2.0oc
• Door Size：Single Wing:W80*H180;Double Wing:W160*H180
• Controller：Touch Screen Controller
• Operation Mode：Setting, Program
• Standard Accessories：No Fuse Breaker, Over Pressure, Over Heat and Over
• Transport Package：Strong Plywood Case, Meet International Standards
• Specification：Standard and Customized
• Trademark：KOMEG
• Origin：Dongguan, China
• HS Code：90321000
• Production Capacity：1000 Sets,Year

Specification of Walk-In Chambers

ModelKMHW-8Volume(m³)16.8CBMInterior DimensionsW3900*H2100*D2050mmExterior DimensionsW5050*H2350*D2250mmSafety Devices(standard)No fuse breaker, over pressureover heat and over current protection for compressor,over temperature protection, over load protection for blower, dry heat protectionStandard accessoriesSight window*1,cable port(portΦ50mm)*1,chamber lamp*1, status indicatorControl System Balanced Temperature & Humidity Control SystemRefrigeration systemWater CooledSemi-hermetic compressor, single stage or cascade refrigeration system,CFC free refrigerant(HFC-507 and HFC-23)ControllerPanel7-inch LCD Touch panel,Chinese or English display selectableOperation modelProgram or fix point runningMemory capacity120 programs,1200steps, all repeat 999 cycles,part repeat 99 cyclesAccuracyTemp.:0.1% of F.S±1 digit  Humidity:0.1% of F.S±1 digitInputTemp.:pt-100, Humidity:pt-100 or ~5V DCVComm.port RS-232 or RS-485 (Softawre is option)Temp. rangeMaximum:80ºC,120ºC;Minimum:-60ºC,-50ºC,-40 ºC,-30ºC,-20 ºC,-10ºC,0ºCHumidity Range10%,20%,30%~95%Temp. constancy±0.5ºCHumidity constancy±2.5%R.HTemp. uniformity±2.0ºCHumidity uniformity±5.0%R.HAmbient Temp.+5ºC~+35ºCWiring methodAC 380±10%50Hz ,3 phase 4 wires +Ground WiresHeat up time +20ºC~+80ºC,Within 60 minPull down time +20ºC~-55ºC-40ºC-20ºC-10ºC,Within 120 or 90 or 60  minInterior materialStainless Steel Plate(SUS 304)Exterior materialBaked Painting Steel Or Stainless steel(SUS304)Insulation materialRigid polyurethane foamDoor size (mm)Single wing:W800*H1800;Double wing:W1600*H1800;Note:1. We reserve the right to change specifications without prior notice   2.Customized sizes and configurations available
Photos show

Customer on site photos

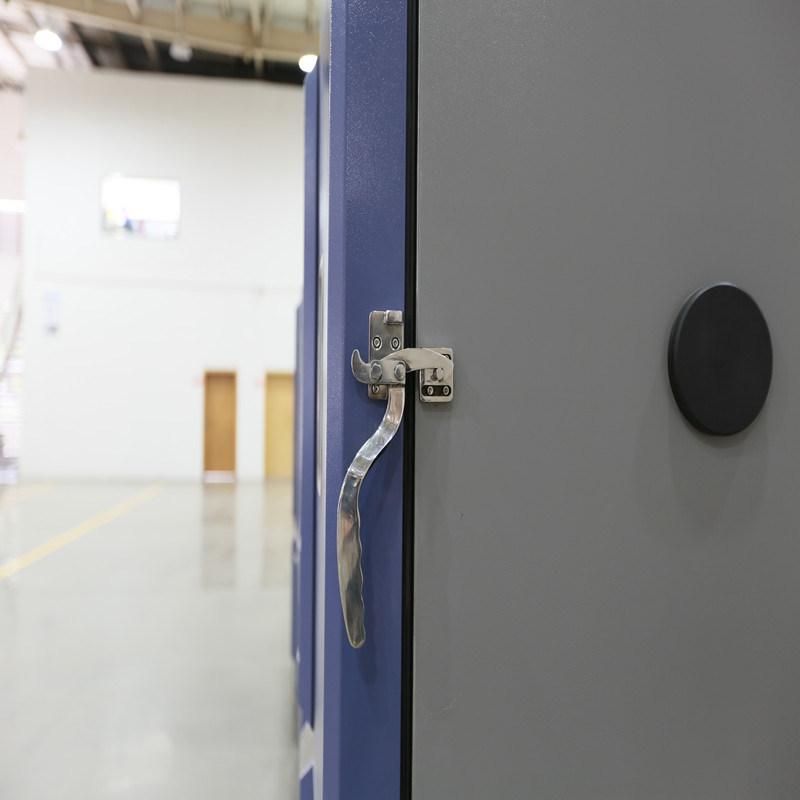

Details handle

Factory show
