• Temperature Range：Room-220
• Pressure：4kpa
• Heating Method：Double Sides
• Heating Block：100X40mm
• Working Stations：3
• Transport Package：Export Package
• Trademark：DARONG
• Origin：China
• HS Code：9024800000
• Production Capacity：2000sets,Month

Basic Info.

Temperature Range Room-220 Pressure 4kpa Heating Method Double Sides Heating Block 100X40mm Working Stations 3 Transport Package Export Package Trademark DARONG Origin China HS Code 9024800000 Production Capacity 2000sets/Month

Product Description

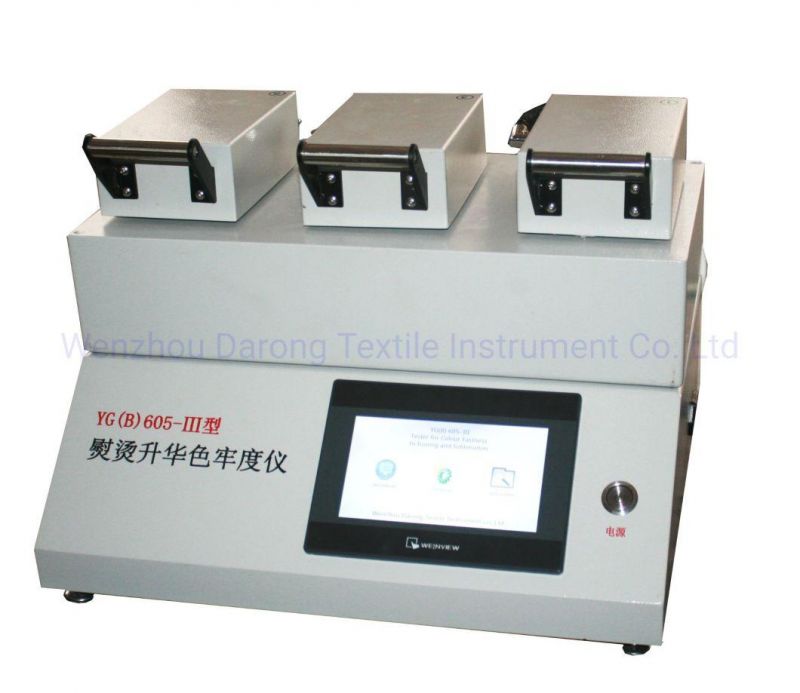

YG(B)605-3 Fabric hot pressing color fastness testing equipment[Scope of application] It is used for testing the color fastness to ironing and sublimation of all kinds of colored textiles.

[Related standards]
Aatcc92/114/117/133 L0854 BS1006 PO1&X11 DIN54022/54060 GB/T5718, GB/T6152, ISO 105-X11, M&S P10 X11&P01 JIS L0850, L0879, etc.
[Technical features]
1. Color touch screen display and control, easy to operate;
2. Three station can work independently;
3. Using imported chips, high precision temperature sensor;
4. Heating plate surface hard oxidation treatment.
[Technical parameters]
1. Heating method: sublimation (double-sided heating); Iron (heat on one side)
2. Number of stations: three stations
3. Heating block working surface size :(108×48)mm
4. Sample size :(100 x 40)mm
5. Gravity value of the upper heating block :(16±4)N
6. Selection of sample pressing time :(0 ~ 65535)s
7. Preheating time: < 10min (110ºC)
8. Heating temperature selection: room temperature ~ 250ºC
9. The heating block surface temperature error: < ±2ºC
10. The instrument working environment: room temperature, no vibration, no corrosive gas.
11. Power supply voltage: AC220V±10% 50Hz 1kW
12. Overall size: 500mm×400mm×360mm (L×W×H)
13. Weight: about 27kg.
