• Model NO.：TH9520

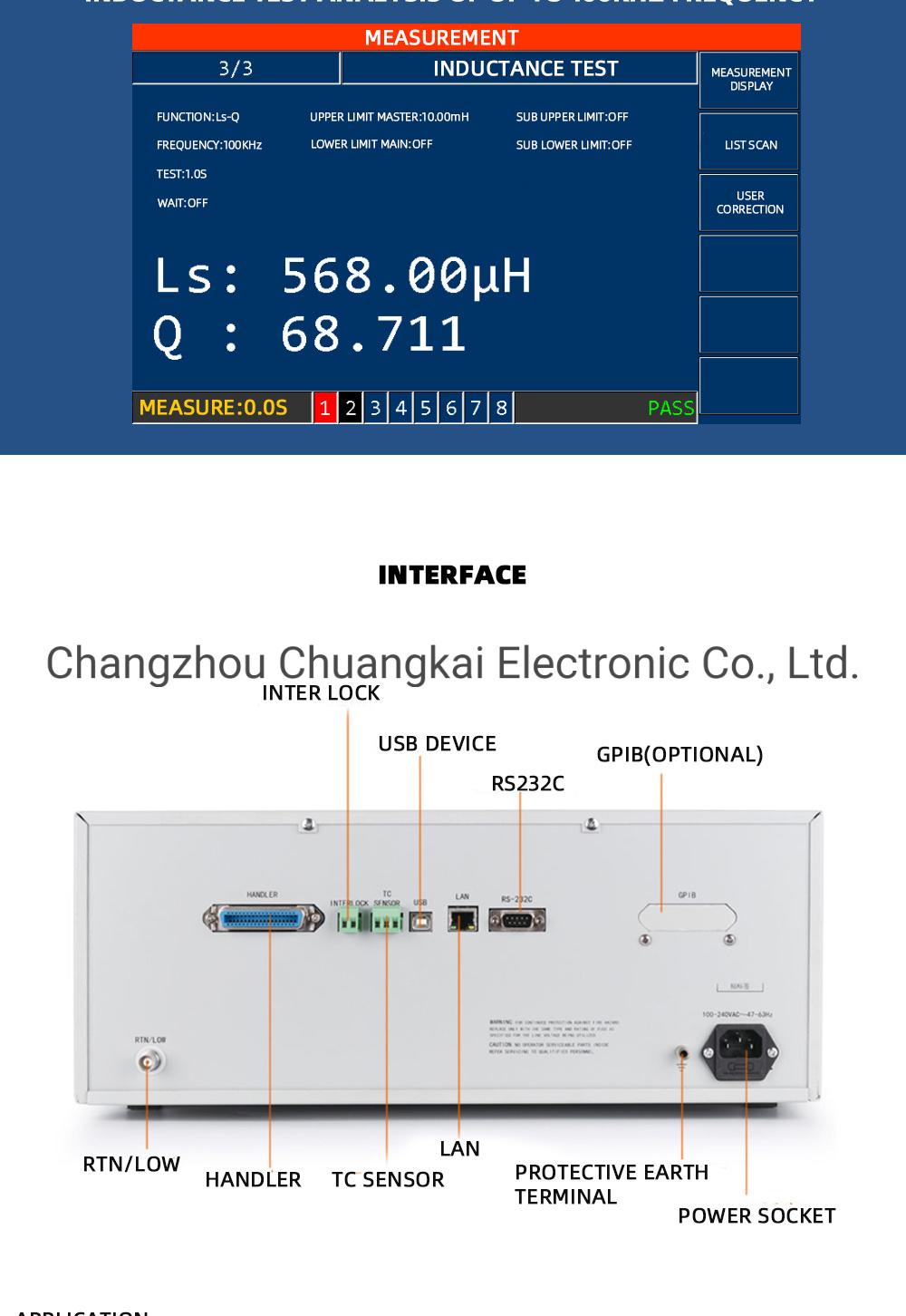

• Interface：RS232, USB, LAN, Handler, Tc (Option), Gpib (Optio
• Rise Time：off, 0.1s -999.9s, Step 0.1s
• Test Time：0.1s - 999.9s, Step 0.1s
• Fall Time：off, 0.1s - 999.9s, Step 0.1s
• Waiting Time：off, 0.1s - 999.9s, Step 0.1s
• Output Power：AC: 500va; DC: 120va
• Transport Package：Carton
• Specification：62x45x32cm
• Trademark：CKT
• Origin：China
• HS Code：9030332000
• Production Capacity：3000 Sets Per Month

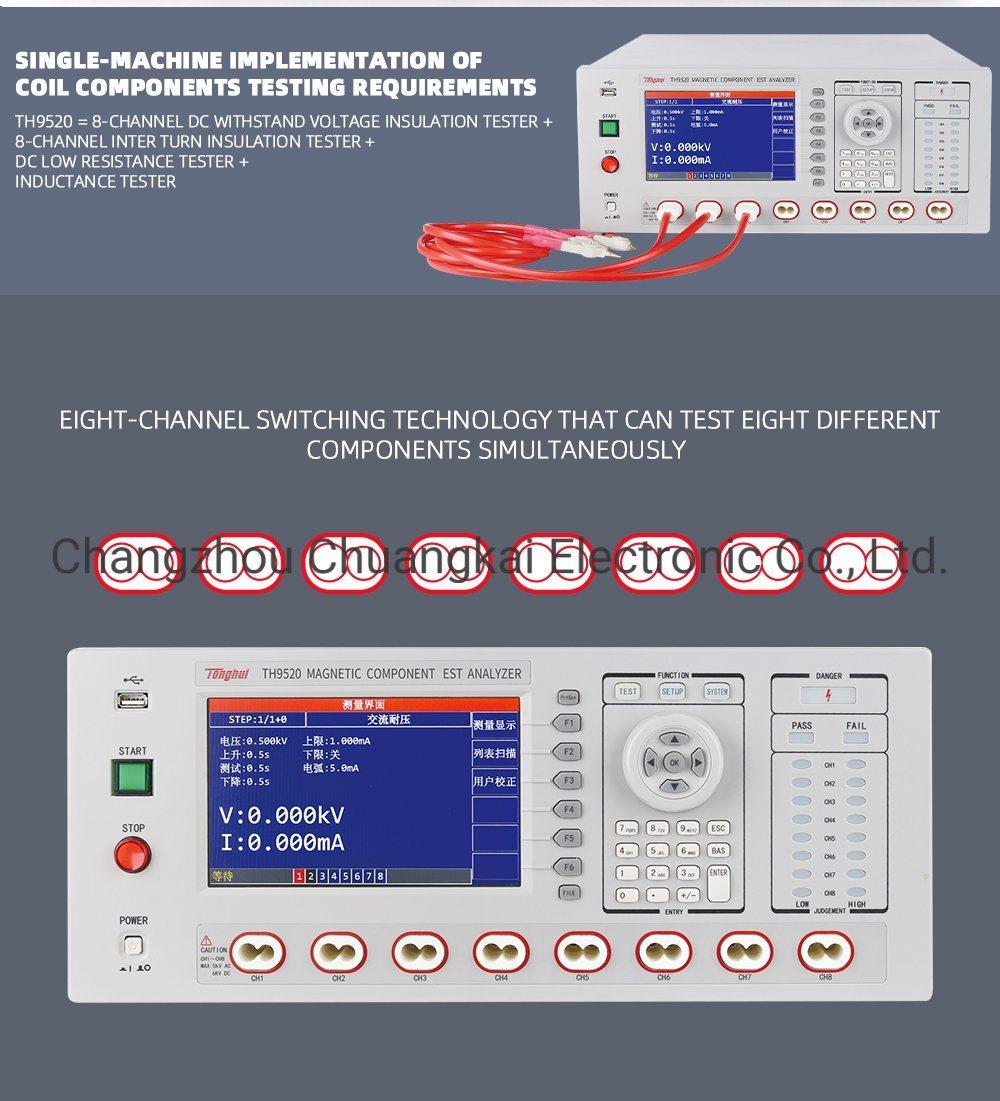

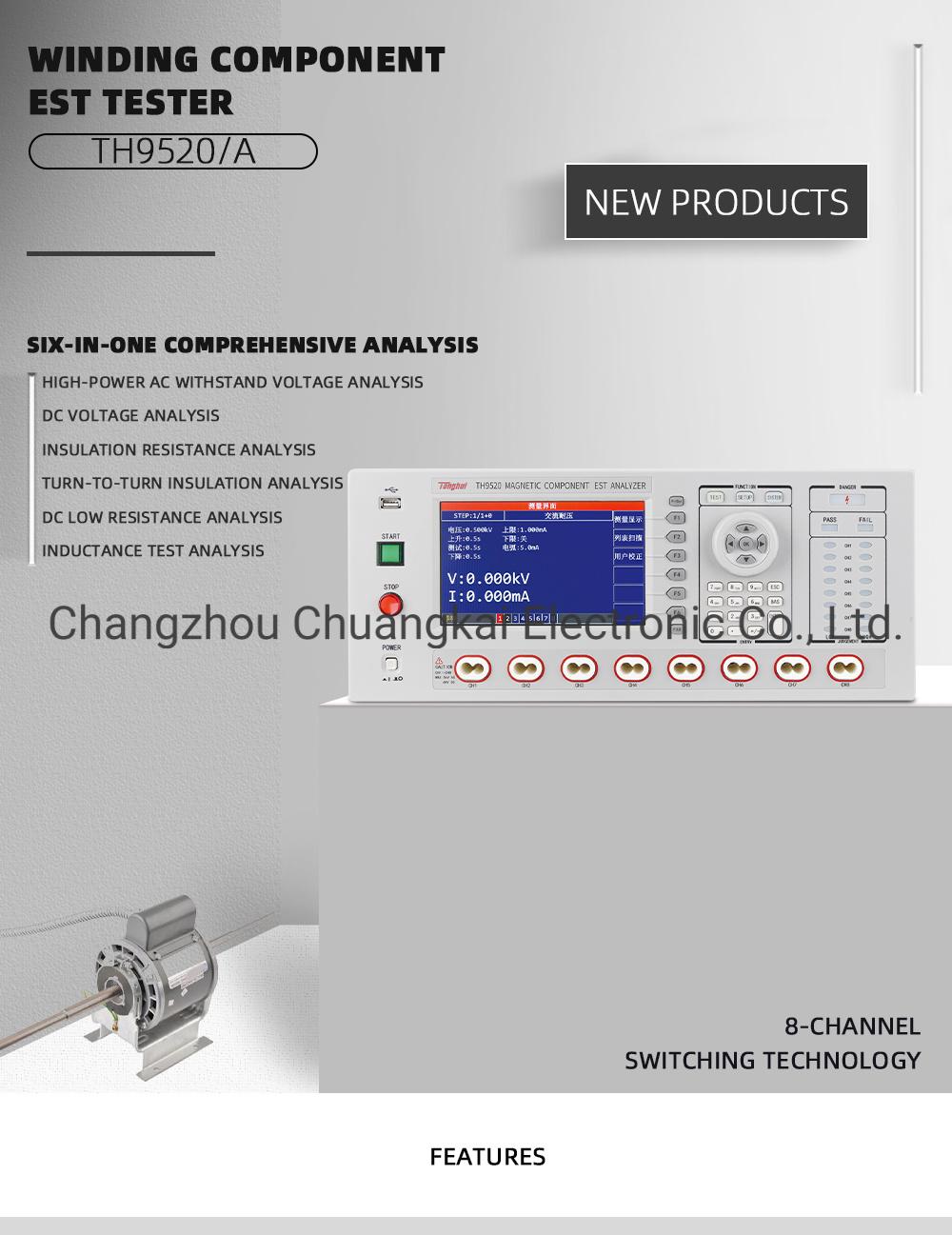

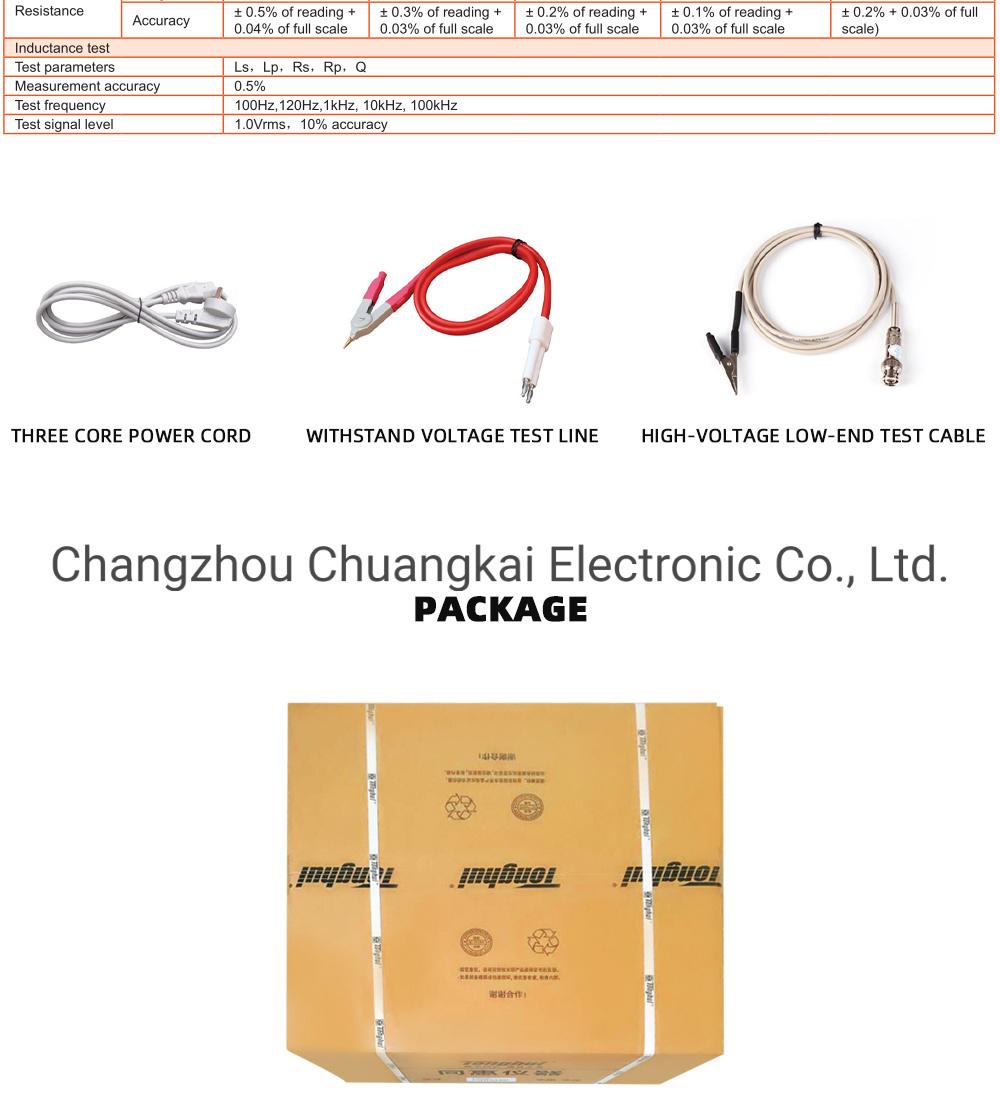

Overview Product Description

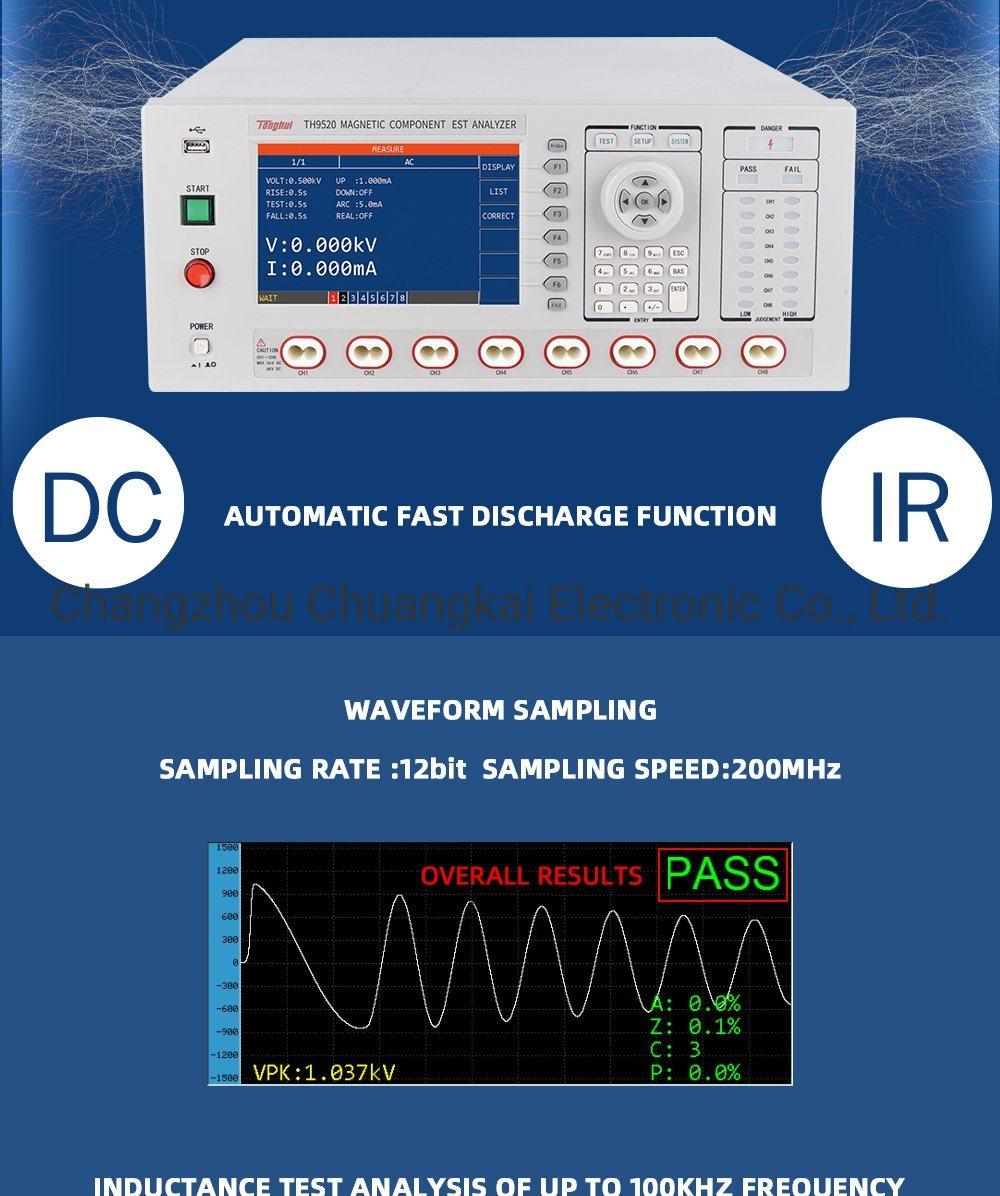

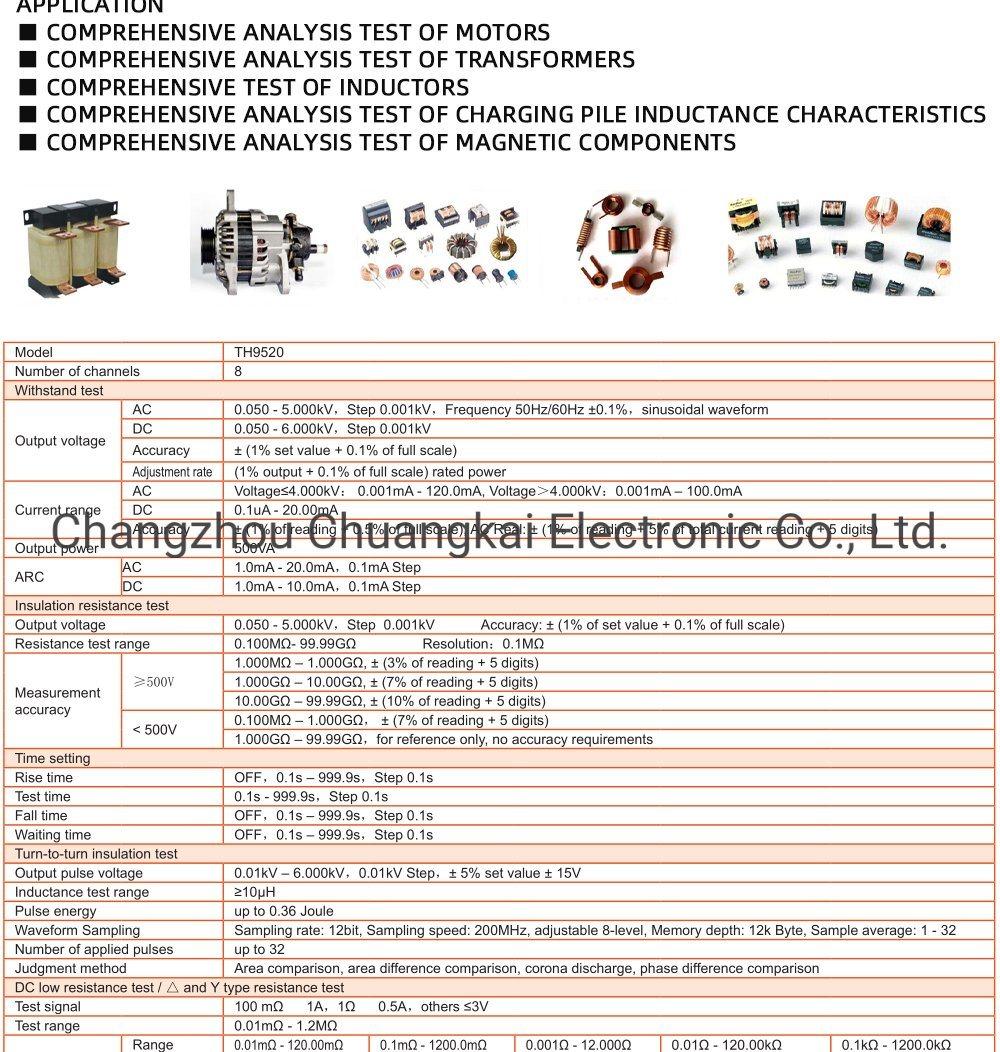

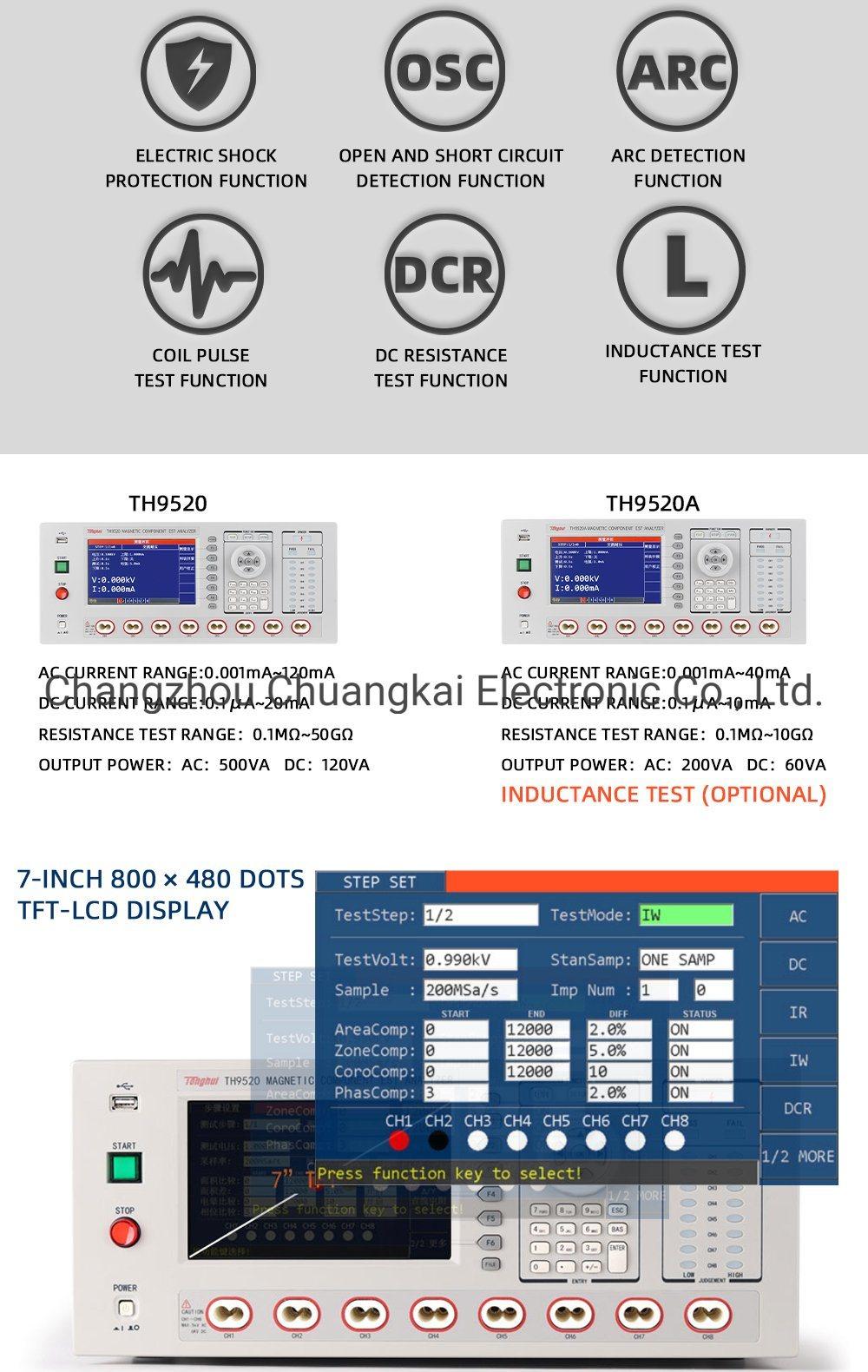

ModelTH9520Number of Channels8Withstand TestOutput VoltageAC0.050 - 5.000kV,Step 0.001kV,Frequency 50Hz/60Hz ±0.1%,sinusoidal waveformDC0.050 - 6.000kV,Step 0.001kVAccuracy± (1% set value + 0.1% of full scale)Adjustment Rate(1% output + 0.1% of full scale) rated powerCurrent RangeACVoltage≤4.000kV: 0.001mA - 120.0mA, Voltage>4.000kV:0.001mA - 100.0mADC0.1uA - 20.00mAAccuracy± (1% of reading + 0.5% of full scale), AC Real: ± (1% of reading + 5% of total current reading + 5 digits)Output PowerAC: 500VA; DC: 120VAARCAC1.0mA - 20.0mA,0.1mA StepDC1.0mA - 10.0mA,0.1mA StepInsulation Resistance TestOutput Voltage0.050 - 5.000kV,Step  0.001kV            Accuracy: ± (1% of set value + 0.1% of full scale)Resistance Test Range0.100MΩ- 99.99GΩ                 Resolution:0.1MΩMeasurement Accuracy≥500V1.000MΩ - 1.000GΩ, ± (3% of reading + 5 digits)1.000GΩ - 10.00GΩ, ± (7% of reading + 5 digits)10.00GΩ - 99.99GΩ, ± (10% of reading + 5 digits)< 500V0.100MΩ - 1.000GΩ, ± (7% of reading + 5 digits)1.000GΩ - 99.99GΩ,for reference only, no accuracy requirementsTime SettingRise TimeOFF,0.1s - 999.9s,Step 0.1sTest Time0.1s - 999.9s,Step 0.1sFall TimeOFF,0.1s - 999.9s,Step 0.1sWaiting TimeOFF,0.1s - 999.9s,Step 0.1sTurn-to-turn Insulation TestOutput Pulse Voltage0.01kV - 6.000kV,0.01kV Step,± 5% set value ± 15VInductance Test Range≥10μHPulse Energyup to 0.36 JouleWaveform SamplingSampling rate: 12bit, Sampling speed: 200MHz, adjustable 8-level, Memory depth: 12k Byte, Sample average: 1 - 32Number of Applied Pulsesup to 32Judgment MethodArea comparison, area difference comparison, corona discharge, phase difference comparisonLow Resistance Test / △ and Y Type Resistance TestTest SignalmΩ             1A,1Ω     0.5A,others ≤3VTest Range0.01mΩ - 1.2MΩResistanceRange0.01mΩ - 120.00mΩ0.1mΩ - 1200.0mΩ0.001Ω - 12.000Ω0.01Ω - 120.00kΩ0.1kΩ - 1200.0kΩAccuracy± 0.5% of reading +0.04% of full scale± 0.3% of reading +0.03% of full scale± 0.2% of reading +0.03% of full scale± 0.1% of reading +0.03% of full scale± 0.2% + 0.03% of full scale)Inductance TestTest ParametersLs,Lp,Rs,Rp,QMeasurement Accuracy0.5%Test Frequency100Hz,120Hz,1kHz, 10kHz, 100kHzTest Signal Level1.0Vrms,10% accuracy Detailed Photos
