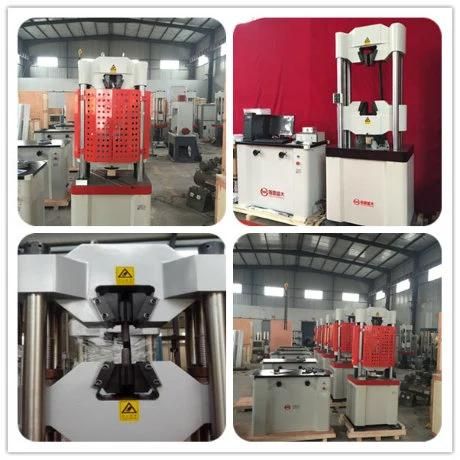

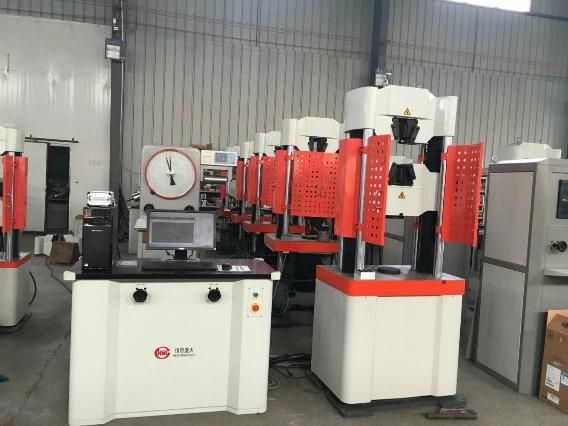

• Model NO.：WEW-100D
• Control：Manual Control
• Weight：1000-2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Sample Clamp：Hydraulic Grips
• Tension Space：650mm
• Compression Space：500mm
• Sampel Grips：Customized
• Safe：Protection Net
• Color：Blue or White
• Transport Package：Standard Sea Shipping Case
• Specification：740x580x2035mm
• Trademark：Hensgrand or OEM
• Origin：Jinan, Shandong
• HS Code：9031809090
• Production Capacity：500 Sets,Month

WEW-100DWEW-300DWEW-600DWEW-1000DstructureTwo column Two ball screwControl modeloading process manual control,computer automatic data dealingMax. Load100KN300KN600KN1000KNLoad range2%~100%FSForce resolution1/300000Load accuracy≤±1%Test force resolution value0.01KNDeformation Measurement Range2% ~100% of extensometer measurement rangeDeformation indication error ±0.5% of indicating valueDeformation resolution1/300000 mmDisplacement
Indication Error1%of indicating valueDisplace test range0~250mmDisplacement Resolution0.01mmExtensometer gauge length50mmClamping MethodHydraulic clampingLower beam movement speed120 mm/minMas piston moving speed70mm/minGantry adjust speed150mm/minMax piston stoke 250mmMax. Tensile Test Space750mm  500mmRound Sample Clamping DiameterΦ6-Φ13mmΦ10-Φ32mmΦ13-Φ26mmΦ13-Φ40mmFlat Sample Clamping Diameter0-15mm0-15mm0-15mm0-30mmClamping width of flat sample70mm75mm75mm75mmPressure Plate SizeΦ160mm or 204x204 mm (optional)Bending Test Branch Roller Width140mmRoller distance of bending30-600mmVoltage380V  50Hz  3Phase  1.5kw (can be customized)Overall Dimension660×500×1800mm810×560×2050mm820×660×2250mmJean type oil source control cabinet960×630×900mm
