• Model NO.：STSZ-ZD
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Electric Digital
• Weight：300
• Power Source：380V ,220V
• Oil Cylinder Position：No
• Product Name：Automatic Triaxial Test Set
• Axial Force：0-10kn, Measurement Accuracy: ±1%
• Shear Rate：0.001-5.000mm,Min
• Specimen Size：Dia39.1X80mm
• Confining Pressure：0-1MPa
• Back Pressure：0-1MPa
• Aperture Pressure：0-1MPa
• Volume Change：0-50ml
• Features：Computer Control, Curves and Test Reports Can Be P
• Transport Package：Wooden Case
• Specification：1.5CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STSZ-ZD Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Electric Digital Weight 300 Power Source 380V /220V Oil Cylinder Position No Product Name Automatic Triaxial Test Set Axial Force 0-10kn, Measurement Accuracy: ±1% Shear Rate 0.001-5.000mm/Min Specimen Size Dia39.1X80mm Confining Pressure 0-1MPa Back Pressure 0-1MPa Aperture Pressure 0-1MPa Volume Change 0-50ml Features Computer Control, Curves and Test Reports Can Be P Transport Package Wooden Case Specification 1.5CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

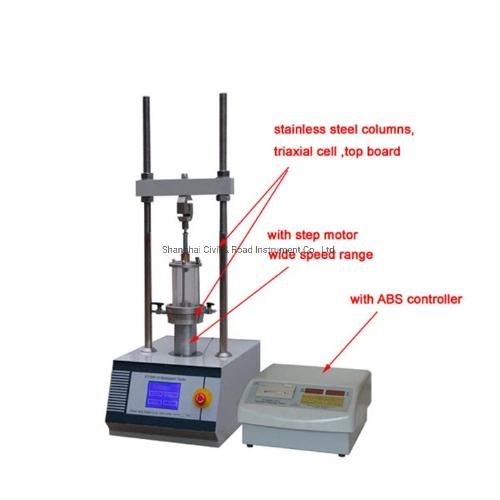

STSZ-ZD Automatic Triaxial Test Set (Ball screw rod structure)

Standard: BS 1377:7, ASTM D2850

Application:
The Strain Controlled Triaxial Test Apparatus is designed for laboratory and educational use as well as institute for civil engineering test.
The Strain Controlled Triaxial Test Apparatus is a type of strain controlled apparatus to determine the specimen with maximum confining pressure of 1MPa and sample diameter of Ø39.1 x 80mm.
The Strain Controlled Triaxial Test Apparatus can perform the strength and deformation characteristics testing of soil specimen under the static axial load and unconsolidated-undrained test (UU), consolidated-undrained test (CU) and consolidated-drained (CD) test.

Feature:Controlled by singlechip, data setting of confining pressure and backpressure is by keyboard input., elavation of main frame is controlled. Main frame is driven by servo motor, and shearing rate is variable.
Parameters:


Product Model	STSZ-ZD
Axial force	0-10kN, measurement accuracy: ±1%
Shear rate	0.001-5.000mm/min
Specimen size	Φ39.1×80mm
Confining pressure	0-1MPa
Back pressure	0-1MPa
Aperture pressure	0-1MPa
Volume change	0-50ml
Features	computer control, curves and test reports can be printed
