300kn Labortory Equipment Universal Tensile Testing Machine (WAW-300D)

Jinan Kason Testing Equipment Co., Ltd.
  • Mass Scope of Workpiece：<900kg
  • Type：Universal Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：1
  • Load Way：Hydraulic
  • Loading Method：Static Load

Base Info

  • Model NO.：WAW-300D
  • Display：Computer
  • Control：Computer Control
  • Weight：1000-2000Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Under
  • Delivery Time：10 Working Days After Get Tt Payment
  • Max Load：300kn
  • Load Accuracy：1%
  • Load Resolution：1,300000
  • Transport Package：Standard Export Packing
  • Specification：1100*780*2200mm
  • Trademark：HST
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：8000 Sets Per Year

Description

Basic Info.

Model NO. WAW-300D Display Computer Control Computer Control Weight 1000-2000Kg Power Source AC220V Oil Cylinder Position Under Delivery Time 10 Working Days After Get Tt Payment Max Load 300kn Load Accuracy 1% Load Resolution 1/300000 Transport Package Standard Export Packing Specification 1100*780*2200mm Trademark HST Origin China HS Code 9031809090 Production Capacity 8000 Sets Per Year

Product Description

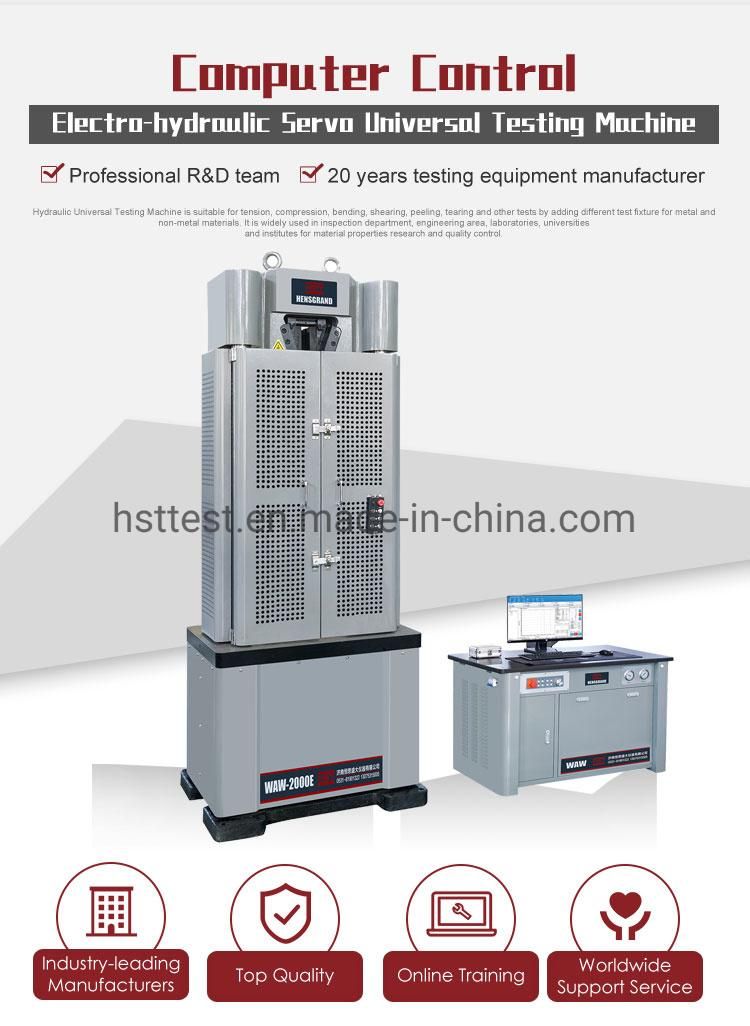

300KN Labortory Equipment Universal Tensile Testing Machine (WAW-300D)
300kn Labortory Equipment Universal Tensile Testing Machine (WAW-300D)300kn Labortory Equipment Universal Tensile Testing Machine (WAW-300D)300kn Labortory Equipment Universal Tensile Testing Machine (WAW-300D)300kn Labortory Equipment Universal Tensile Testing Machine (WAW-300D)

1.Application:

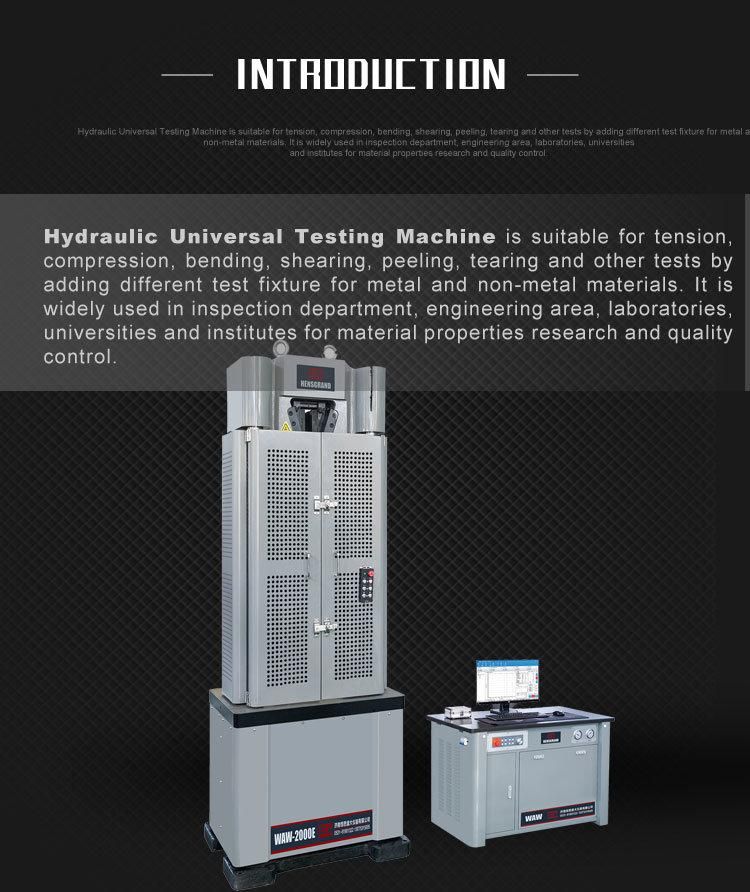

The machine adopts hydraulic loading, Computer Display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.
2. Standards:
ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
3. Specifications:
ModelWAW-300D
Structure4 columns and 2 screws
Control wayConstant stress uniform deformation constant displacement three closed loop control and program control dealing
Max.load (kN)300kN
Load accuracy≤±1%
Load range2%-100%FS
Load resolution1/300000
Deformation Measurement Range2%~100%FS
Deformation accuracy≤±1%
Displacement resolution (mm)0.01
Displacement error≤±0.5%
Max.piston stroke(mm)250
Max piston moving speed0-90mm/min stepless speed adjusting
Crosshead lifting speed200mm/min
Max. tension test space750mm (can customize)
Max.Compression Test Space600mm (can customize)

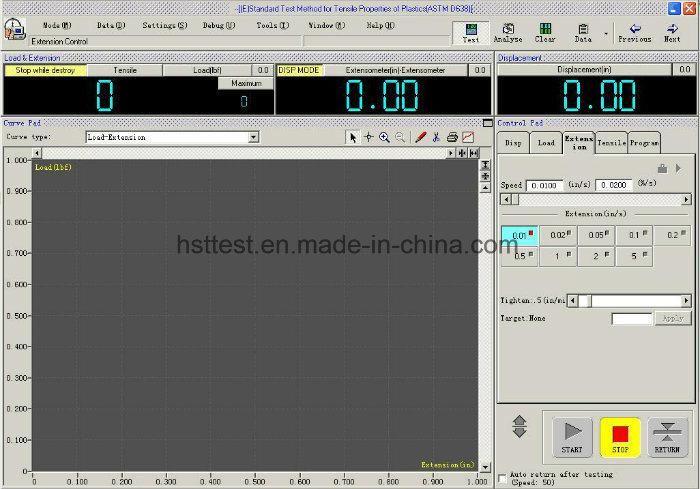

Software show:
300kn Labortory Equipment Universal Tensile Testing Machine (WAW-300D)

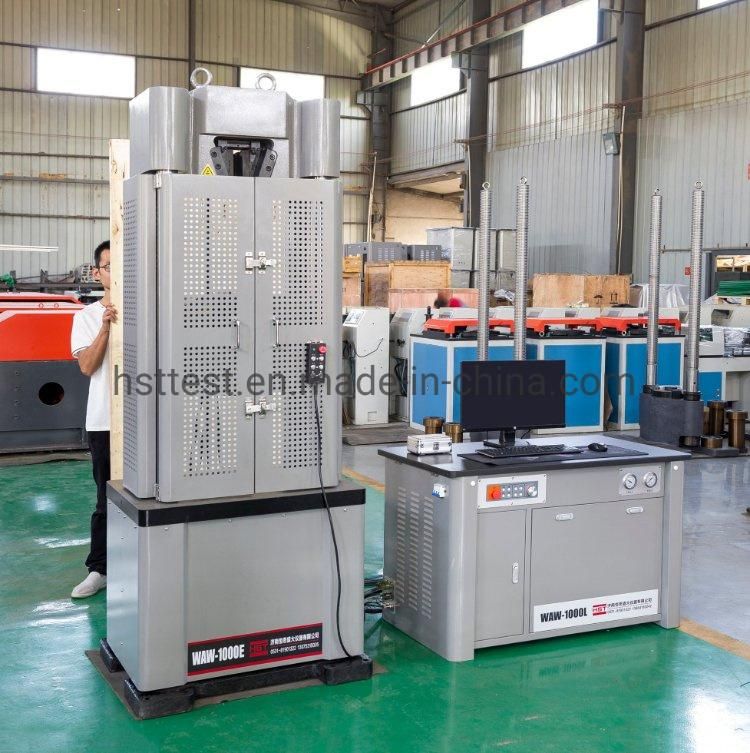

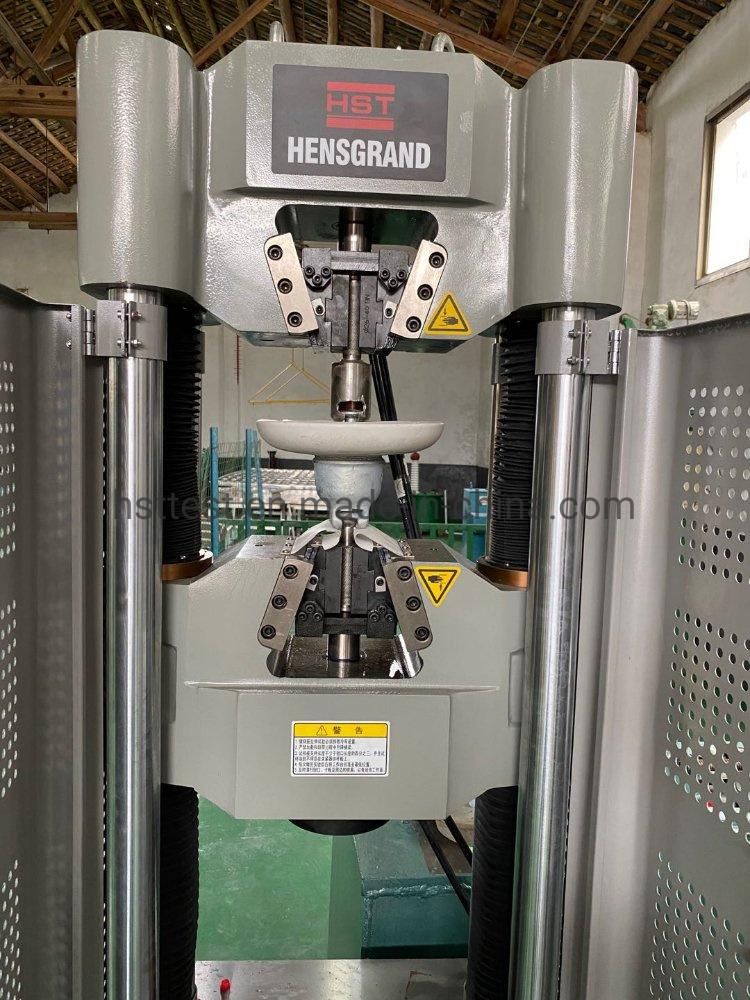

Machine in test show:
300kn Labortory Equipment Universal Tensile Testing Machine (WAW-300D)300kn Labortory Equipment Universal Tensile Testing Machine (WAW-300D)300kn Labortory Equipment Universal Tensile Testing Machine (WAW-300D)300kn Labortory Equipment Universal Tensile Testing Machine (WAW-300D)300kn Labortory Equipment Universal Tensile Testing Machine (WAW-300D)300kn Labortory Equipment Universal Tensile Testing Machine (WAW-300D)

Dear customers, we could recommend suitable machines for your special demand, and we have our own aftersale services team to supply overseas services. Welcome to your inquiry . We will reply in time.
