Horizontal Balancing Machine for Impeller Blades (PHQ-50)

Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd.
  • Mass Scope of Workpiece：50kg
  • Type：Balancing Machine

Base Info

  • Model NO.：PHQ-50A
  • Maxcapacity：>1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：AC380V
  • Warranty：1 Year
  • Color：Blue
  • Transport Package：Fumigated Wood Box
  • Specification：ISO9001: 2008
  • Trademark：Jp
  • Origin：Shanghai China
  • HS Code：90311000
  • Production Capacity：500 Sets,Month

Description

Basic Info.

Model NO. PHQ-50A Maxcapacity >1000KN Accuracy Grade 0.5 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC380V Warranty 1 Year Color Blue Transport Package Fumigated Wood Box Specification ISO9001: 2008 Trademark Jp Origin Shanghai China HS Code 90311000 Production Capacity 500 Sets/Month

Product Description

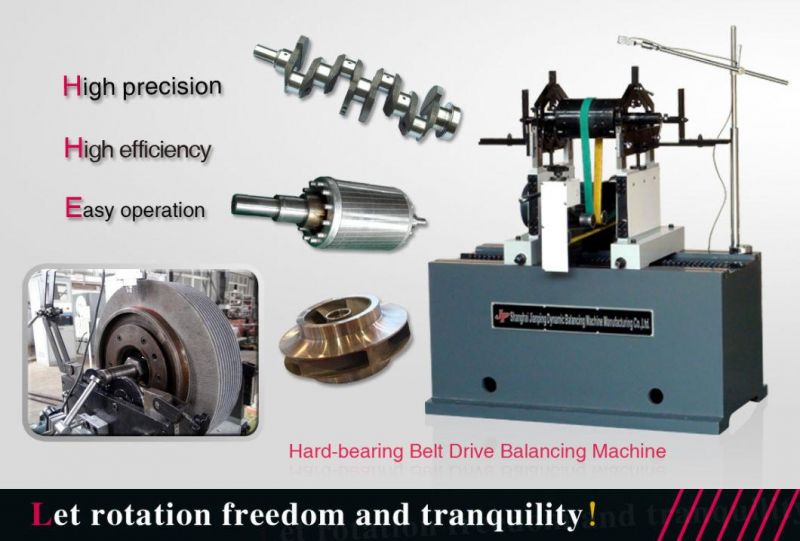

Horizontal Balancing Machine for Impeller blades

Production Description:

Specially designed brackets transmit mechanical force with low vibration damping

Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application

Special Features:

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments

Horizontal Balancing Machine for Impeller Blades (PHQ-50)

Range of Application:

This balancing machine is widely used in balancing rotatable bodies, such as kinds of medium-sized and small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by belt, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency

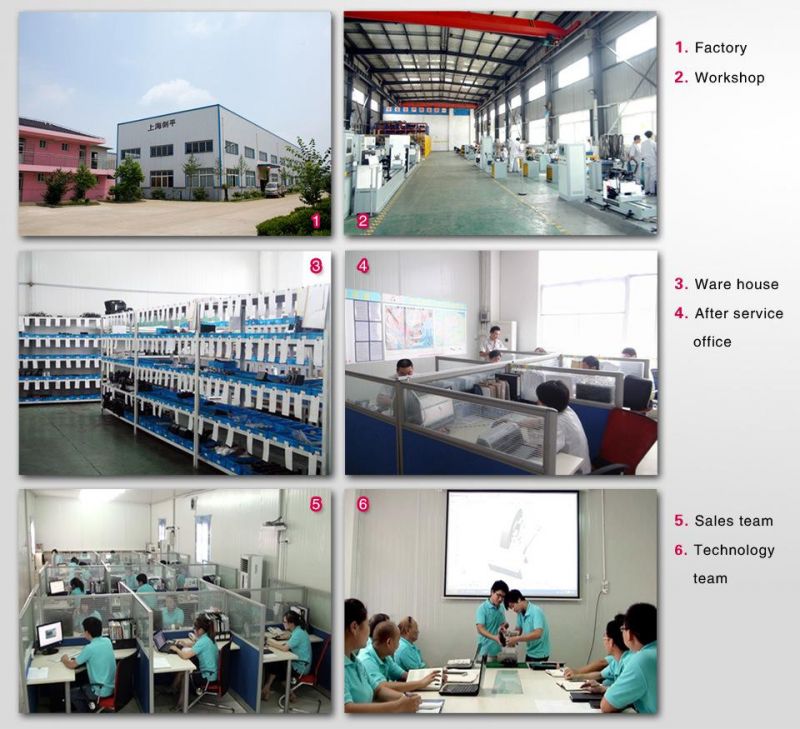

Factory Outlook:


Horizontal Balancing Machine for Impeller Blades (PHQ-50)

Certificates:

Horizontal Balancing Machine for Impeller Blades (PHQ-50)
 Production Parameters:

Technical data at a glancePHQ-50
Max Mass of Workpiece (kg)50
Max Diameter of Workpiece (mm)700
Distance between Two Support Bearings (mm)80--700
Journal Diameter Scope of Workpiece (mm)8~80
Diameter Scope of Driving Belt (mm)18~200
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min) 700/1050 Stepless speed regulation
Motor Power (kw)0.75 Frequency conversion
Min Achievable Residual Unbalance Amount (emar)0.5g. mm/kg
