Belt Drive Rotor Dynamic Balancing Machine
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd.- Type:Vibration Testing Machine
- Maxcapacity:<1000KN
- Accuracy Grade:1
- Load Way:Electronic Load
- Loading Method:Dynamic Load
- Display:Digital
Base Info
- Model NO.:PHQ-160,300,500
- Control:Computer Control
- Weight:100-500Kg
- Power Source:AC380V
- Oil Cylinder Position:Top
- Power:Electronic
- Output Power:0.55,0.75kw
- Supply Ability:1000 Set,Sets Per Month Negotiation
- Maximum Weight of Workpiece:160,300,500
- Maximum Diameter of Workpiece:1000,1220,1500
- Packaging Details:Packed in Fumigated Wood Box
- Delivery Detail:Within 10 Days After The Order
- Transport Package:Packed in Fumigated Wood Box
- Specification:ISO9001: 2008
- Trademark:JP
- Origin:Shanghai
- HS Code:90311000
- Production Capacity:1000 Set,Month
Description
Basic Info.
Model NO. PHQ-160/300/500 Control Computer Control Weight 100-500Kg Power Source AC380V Oil Cylinder Position Top Power Electronic Output Power 0.55/0.75kw Supply Ability 1000 Set/Sets Per Month Negotiation Maximum Weight of Workpiece 160/300/500 Maximum Diameter of Workpiece 1000/1220/1500 Packaging Details Packed in Fumigated Wood Box Delivery Detail Within 10 Days After The Order Transport Package Packed in Fumigated Wood Box Specification ISO9001: 2008 Trademark JP Origin Shanghai HS Code 90311000 Production Capacity 1000 Set/MonthProduct Description

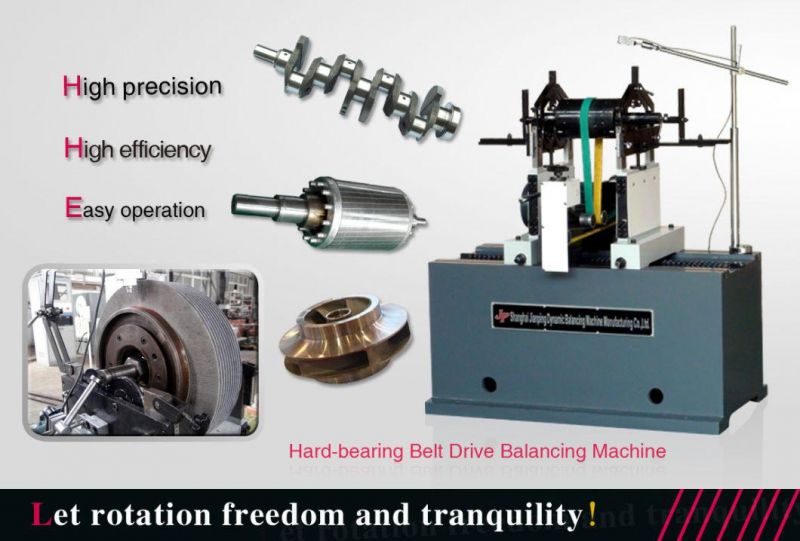

Belt Drive Rotor Dynamic Balancing Machine
Production Description:
Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application
Special Features:

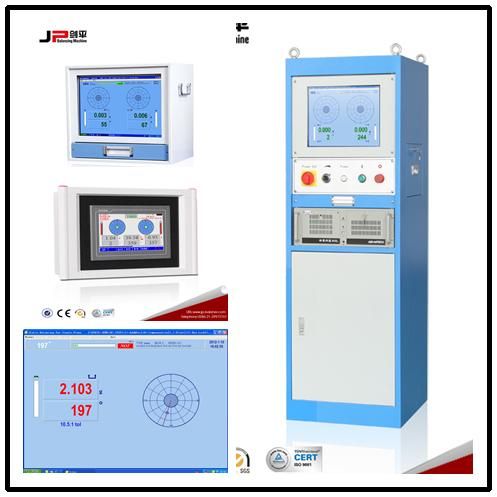

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments
Range of Application:
This balancing machine is widely used in balancing rotatable bodies, such as kinds of medium-sized and small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by belt, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency
Certificates:
Production Parameters:
Technical data at a glance | PHQ-160 | PHQ-300 | PHQ-500 |
Max Mass of Workpiece (kg) | 160 | 300 | 500 |
Max Diameter of Workpiece (mm) | 1000 | 1200 | 1500 |
Distance between Two Support Bearings (mm) | 150~1200 | 160~1500 | 160~1500 |
Journal Diameter Scope of Workpiece (mm) | 10~140 | 20~180 | 20~180 |
Diameter Scope of Driving Belt (mm) | 30~350 | 40~400 | 40~400 |
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min) | 756,1176 +Stepless speed regulation | 756,1176 +Stepless speed regulation | 840,1274 +Stepless speed regulation |
Motor Power (kw) | 1.5 Frequency conversion | 1.5 Frequency conversion | 2.2 Frequency conversion |
Min Achievable Residual Unbalance Amount(emar) | 0.5gmm/kg | 0.5g mm/kg | 0.5g mm/kg |
