• Model NO.：PHQ
• Width：700mm
• Height：1150mm
• Gross Weight：240kg
• Transport Package：Fumigated Wood Box
• Specification：ISO. CE. SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：100sets,Month

Basic Info.

Model NO. PHQ Width 700mm Height 1150mm Gross Weight 240kg Transport Package Fumigated Wood Box Specification ISO. CE. SGS Trademark JP Origin Shanghai China HS Code 90311000 Production Capacity 100sets/Month

Product Description

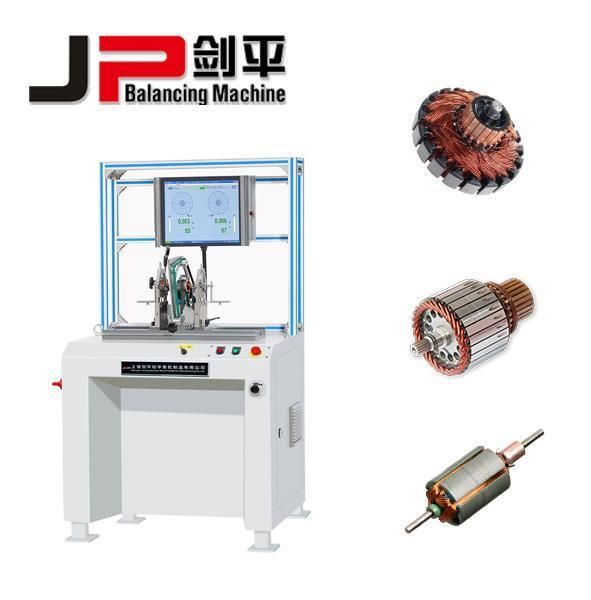

 Electric Armature Horizontal Balancing Machine (PHQ-5)

Production Description:

1) Specially designed brackets transmit mechanical force with low vibration damping
2) Durable and reliable sensor possesses good linearity
3) Permanent calibration brings high accuracy with a permission of large initial unbalance amount
4) Belt-driving offers higher precision and easier operation
5) Advanced electrical measuring system and friendly man-machine interface
6) Modular design offers a wide range of application


Range of Application:

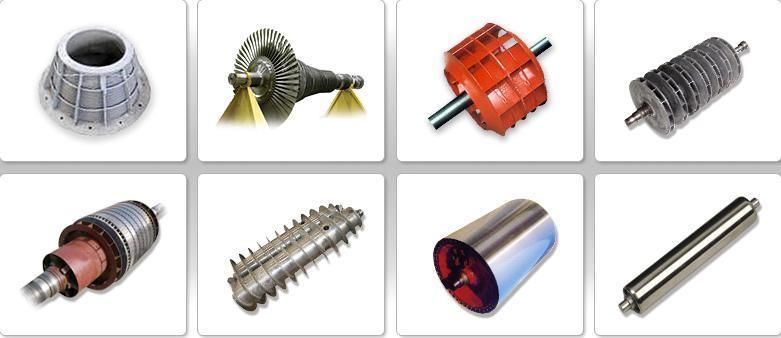

Horizontal Balancing Machine for Electric Armature (PHQ-5) is widely used in balancing rotatable bodies, such as kinds of micro-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool, textile machinery, tool, spindle, etc...Driven by belt, equipped with Variable speed motor to drive. Which ensures high quality balancing and precision. Quick booting, easy operation. And high efficiency

Special Features:

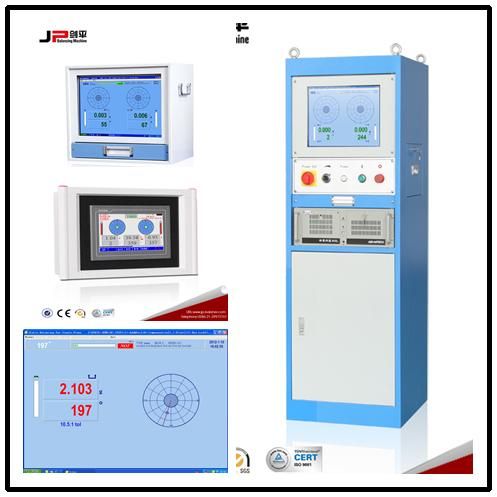

The measuring unit employs JP-580 Micro- computer Electric Measuring Instrumentation newly developed by ourselves with piezoelectric transducer as electromechanical sensor. The measuring unit can show rotating speed, measured value, and phase position intuitively with options of six support modes available while the piezoelectrical sensor possesses a large capacity of output, small volume and high stability.

Certificates:

Production Parameters:

Technical data at a glance	PHQ-5
Max Mass of Workpiece (kg)	5
Max Diameter of Workpiece (mm)	260
Distance between Two Support Bearings (mm)	15-400
Journal Diameter Scope of Workpiece (mm)	3~40
Diameter Scope of Driving Belt (mm)	20~85
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min)	185,335,390,700 Stepless speed regulation
Motor Power (kw)	0.15DC Stepless speed regulation
Min Achievable Residual Unbalance Amount (emar)	≤ 0.3g. mm/kg

Factory Outlook:shjpbalancer.en.made-in-china.com
