• Model NO.：JP-580
• Maxcapacity：<1000KN
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC380V
• Length：750 Mm
• Width：800 Mm
• Height：1950 Mm
• Gross Wieght：110 Kg
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO9001: 2008 CE SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：9027809900
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. JP-580 Maxcapacity <1000KN Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC380V Length 750 Mm Width 800 Mm Height 1950 Mm Gross Wieght 110 Kg Transport Package Packed in Fumigated Wood Box Specification ISO9001: 2008 CE SGS Trademark JP Origin Shanghai China HS Code 9027809900 Production Capacity 1000 Sets/Month

Product Description

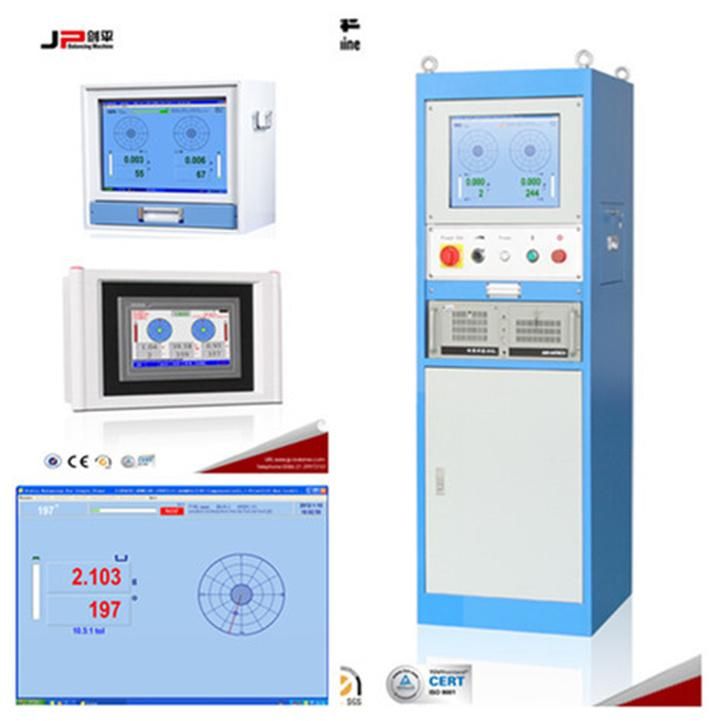

Piano Type Electric Testing System(JP-580)




JP-580 Piano Type Electric Testing System is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

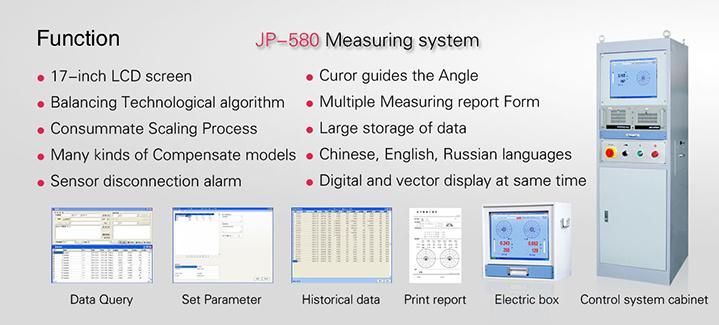

Features

LCD of 17 inches
Windows XP Operating System
Chinese or English Display
Storage for 1000 sorts of rotor parameter and 10000 items of measuring records
Sophisticated balancing software
Multi-methods of algorithms
10-stage calibration offers higher precision
Multi-methods of Compensation
Auxiliary display for drilling and cutting

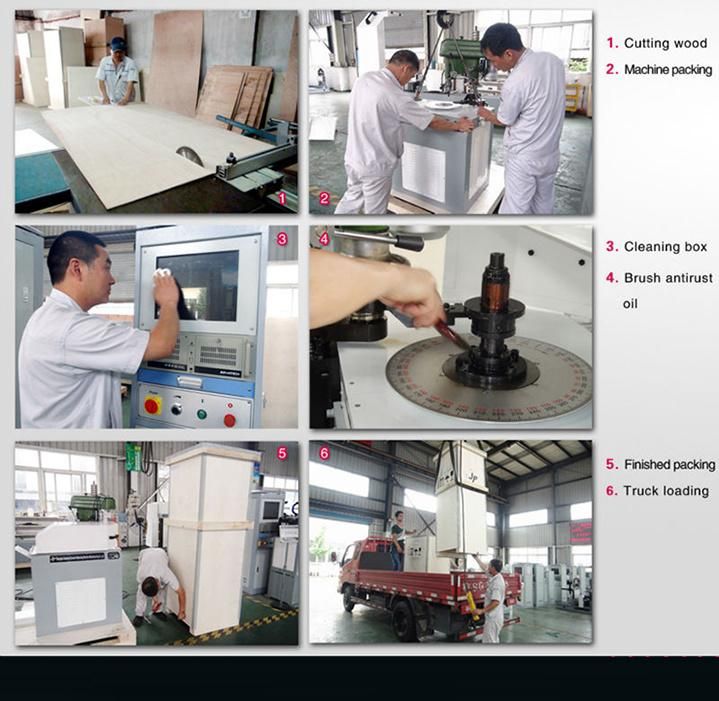

Package and transport



Technological Date:

Scope of RPM: 120-5000 r/min
Minimum resolution: 0.01mg
Shortest measuring time: 3s
Measurable dynamic range: 1: 100000

Delivery inspection



Features of products:

Various Measuring Methods: Dynamic balancing, static balancing or both, ten support
Modes, adding or reducing weight and CW or CCW rotating can be customized flexibly.
High Precision: Multi-Calibration coefficient combination, automatically adjust the
System sensitivity, no shift-skip, dual wave filtration by both hard and soft-ware, highspeed
Data compression, faster, more stable and accurate measurement.
DIY unit: Balance unit displayed, angle unit and precision displayed can be defined by
User. A real-time unit conversion is available to meet different requirement.
Complete compensation, flat key compensation, fixture compensation, up to 9 times of
Dislocation of fixtures.
Technological algorithm: Indexing Algorithm, Drilling Algorithm, Milling Algorithm and
Crankshaft Algorithm.
Consummate Calibration Process: Specialized Calibration interface is provides more
Convenience for maintenance. Up to 10 Calibration segments. Real-time verification of
Calibration with linear chart.
Sensor disconnection alarm: Automatic diagnosis of sensor disconnection, Prompt
Evading of false balance.
Bilingual: Optional language of English or Chinese for display and report form printing.
Convenient Operation: Numeric and vector-combined display of measured values. Hint
For all the definings of parameter and the setup of domain.
Large storage of data: Database storage. Limitless storage of Rotor data, jig data and
10000 pieces of measured loop records.
History: Auto record of history, Optional methods of recording.
Good commonness of data: Database files can be opened in MS Office. Operations like"Find", "Stats", "Filter", "Classify" and "Leadout" are available via the ancillary software.
Multi-report Form of Measurement: Measurement report-form, Balance Report-form,
Single-plane Measurement Report-form, etc. Note information for motor data can be
Added anytime and displayed in report-form.

Certificates



Optional Configuration

General management of multi-balancer: Able to establish a monitor-center for
Synchronous monitoring work process of more than one balancer and effective
Manipulation of the data
Cursor Guides the Angle: The cursor can show the phase position of the rotor in the
Extra-added module, which can help user to find the unbalance point
