Soil Testing Equipment Triplex Lever Consolidation Test Apparatus
Zhuozhou Tianpeng Imp. & Exp. Trade Co., Ltd.- Mass Scope of Workpiece：100-200kg
- Type：Consolidation Test
- Load Way：Mechanical Load
- Display：Needle
- Control：Manual Control
- Power Source：No
Base Info
- Model NO.：WG-1C
- Sample Area：30 Cm2; or 50 Cm2
- Grade：Grade 8, Grade 7
- Product Name：Triplex Lever Consolidation Test Apparatus
- Transport Package：Wooden Case
- Trademark：C-TECH
- Origin：China
- HS Code：90248000
- Production Capacity：200sets,Month
Description
Basic Info.
Model NO. WG-1C Sample Area 30 Cm2; or 50 Cm2 Grade Grade 8, Grade 7 Product Name Triplex Lever Consolidation Test Apparatus Transport Package Wooden Case Trademark C-TECH Origin China HS Code 90248000 Production Capacity 200sets/MonthProduct Description
Description:

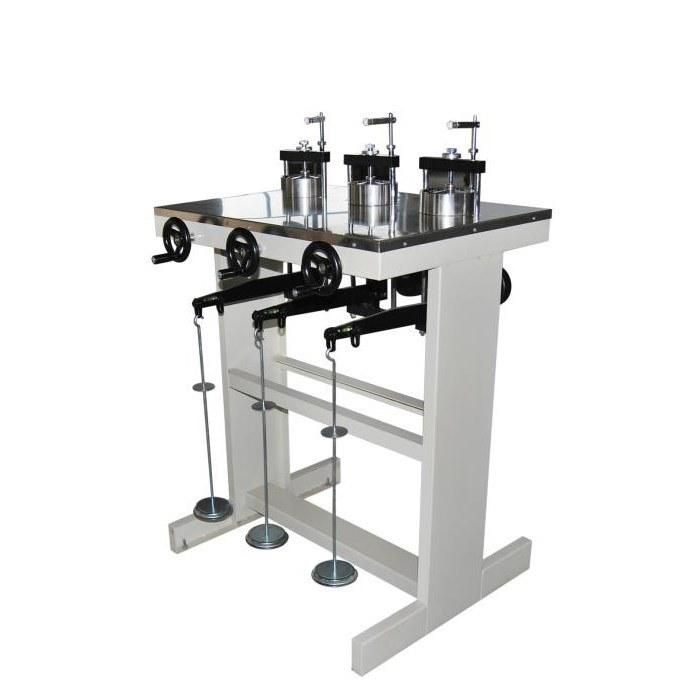

WG-1C Triplex Consolidation Apparatus is used for compression test of soil, and to determine the relationship between deformation and compression of soil, to calculate the unit sediment compression index, resilient index, as well as consolidation coefficient of soil, etc.
Specifictions:
Fream: | Steel structure |
Sample area: | 30 cm² or 50 cm² |
Sample's quantity: | Three |
Lever ratio: | 12: 1 (mid and low pressure) |
Consolidation container: | One beam, two beams, three beams |
Pressure range: | 12.5 kpa/750px² to 800 kpa/1250px², 12.5 kpa/750px² to 400 kpa/1250px² |
Grade: | Grade 8, grade 7 |
Load level(kpa): | 12.5, 25, 50, 100, 200, 300, 400, 800, 1600, 3200 |
