• Model NO.：EDG-2A
• HS Code：90248000
• Production Capacity：500sets,Month

Basic Info.

Model NO. EDG-2A HS Code 90248000 Production Capacity 500sets/Month

Product Description

Non-Nuclear Asphalt Density Gauge

Features:

No radioactive materials or special license required
Light weight and easy to use
24 hours of portable operation
Measures density in common units (Kg./M3)
Measures for asphalt temperature
Stores 4000 readings on internal Data Logger
Optional download to computer

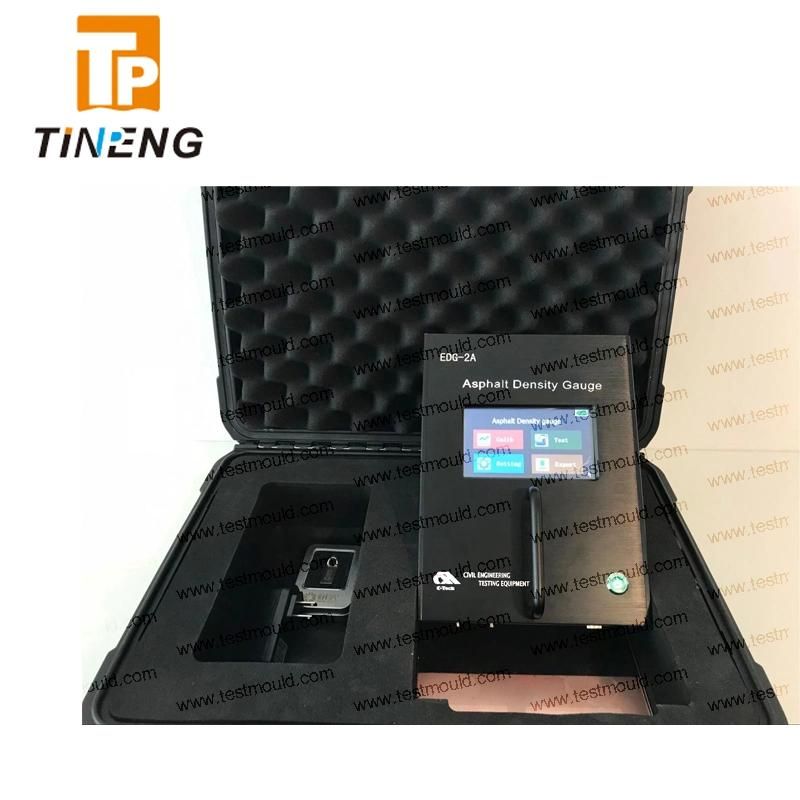

Packing List:

1. One storage case
2. One EDG-2A unit
3. One battery charger: 220V/50Hz
4. One USB data cable
5. User manual, warranty card, certificate

The density of asphalt pavement is directly proportional to the measured dielectric constant of the material. edg-2a uses electrical waves to measure dielectric constant using an innovative, toroidal electrical sensing field established by the sensing plate. the electronics in the edg-2a convert the field signals into material density readings and displays the results. Once calibrated, direct density readings can be consistently obtained. as shown below:

EDG-2A can be used in three different measurement or run modes, respectively:

Single reading mode continuous reading mode

Average reading mode

Single reading time less than five (5) seconds.

Average averages five (5) readings and stores data including date and time.

stores thousands of records continuous instantaneous density readings. segregation identifies variations in material density associated with segregation.

Function

density % compaction integrated

temperature sensing real-time temperature display 0° c to 350°c

calibration Mode

normal correlation offset to cores

Mesurement specification

Sensing area 11 inch dia. base allows optimum measurement on fine and coarse material types.

Max Measurement depth 110mm

Measurement display density, % compaction, surface temperature, Mix name & project name

Mechanical Specification

shipping Weight w/ case 9.00kg

shipping dimensions 490 x 220 x 390 mm

Electrical Specification

Battery 2.5 amp-hr niMh, 12 V recharge time 4 hours

Battery charger 12V/1000ma universal ac charge

computer ports 1 USB port
