• Model NO.：Module Breakage Testing machine
• Certificate：ISO9001:2008
• Impact Height：300mm-1220mm
• The Mass of Impactor：45.5kg
• Transport Package：Wooden Case
• Specification：IEC61730-2004
• Trademark：HOTOTECH
• Origin：Dongguan, Guangdong Province
• HS Code：9031809090
• Production Capacity：100 Sets , Month

Basic Info.

Model NO. Module Breakage Testing machine Certificate ISO9001:2008 Impact Height 300mm-1220mm The Mass of Impactor 45.5kg Transport Package Wooden Case Specification IEC61730-2004 Trademark HOTOTECH Origin Dongguan, Guangdong Province HS Code 9031809090 Production Capacity 100 Sets / Month

Product Description

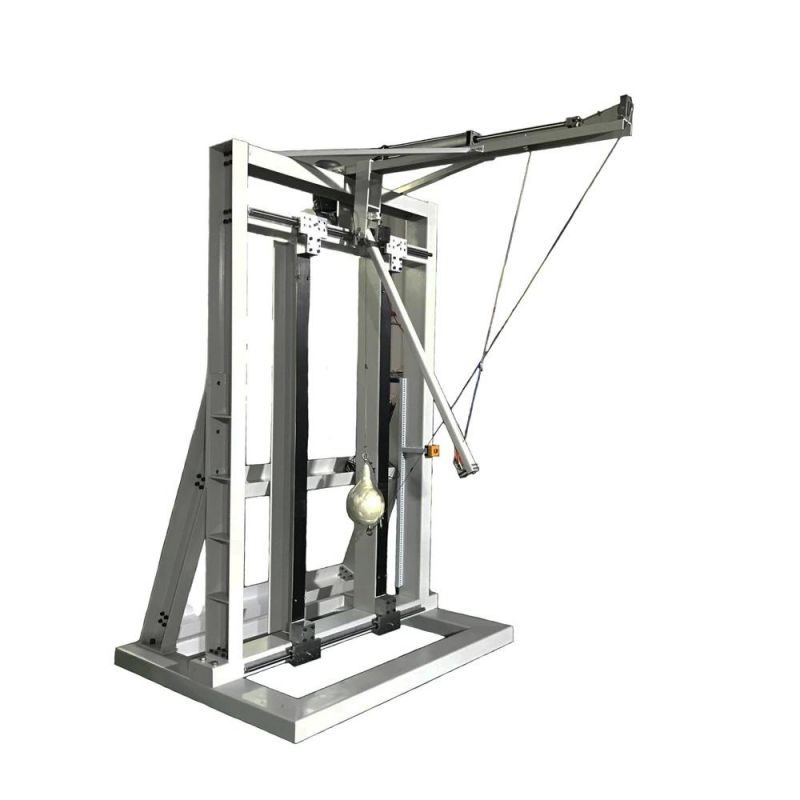

Glass Breakage impact Testing Machine

purpose
The purpose of this test is provide confidence that cutting or piercing injuries can be minimized if the module is broken

Background


The test described herein is derived from ANSI Z97.1 , impact test

apparatus
The apparatus is as follows :
1. Impactors shall be leather punching bags of similar shape and size. the bag shall be filled to the required weight suing chilled lead shot or pellets (2.5mm to 3.0mm in diameter, during testing , the impactor shall be completely covered with a 1.3cm wide glass filament reinforced pressure sensitive tape
2.Teh structure framing and bracing shall be steel channel (approximately C100mm*200mm) or larger and shall have a minimum moment of inertia of approximately 178cm4, the frame shall be welded or securely bolted at the corners of minimize twisting during impact. it shall also be bolted to the floor to prevent movement during impact testing
3.When a impactor bag is filled with lead shot. it will weigh approximately 45.5kg , and will be capable of delivering 542J of kinetic energy when swung through a 1.2m vertical drop

procedure

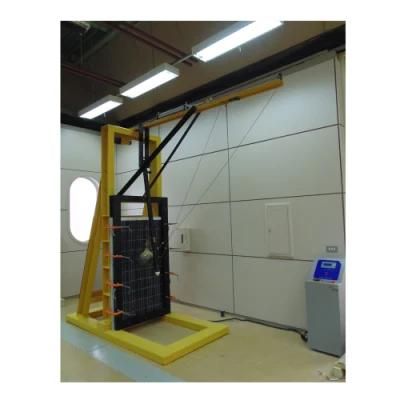

Mount the module sample so that it is centered and rigid on the test frame using the method described the manufacture, the procedure is as follow:
1.At rest , no more than 13mm from the surface of the module sample and no more than 50mm from the center of the module sample
2.Lift the impactor to a drop height of 300mm from the surface of the module sample, allow the impactor to stabilize , and then release it to striker the module sample
3.If no breakage occurs , reapet the sequence of b) from a drop height of 450mm, if still no breakage occurs , repeat from a distance of 1220mm
