Transformer Power Dissipation Tester, Transformer Load and No Load Loss Tester
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Product Name：Transformer Load and No Load Tester
- RMS of 3 Phase Voltage：Uab,Ubc,Uca
- RMS of 3 Phase Current：Ia,Ib,IC
- Frequency Range：40-65Hz
- Power Supply：AC220V ±10%
- Current Measurement Range：100mA-60A,Accuracy:Class 0.2
Base Info
- Model NO.：GDBR-P
- Voltage Range：10V-650V,Accuracy:Class 0.2
- Power Input：AC220V ± 10%
- Color：Black
- Warranty：12 Month
- Transport Package：Standard Wooden Case
- Specification：30kg
- Trademark：Gold
- Origin：China
- HS Code：9031809090
- Production Capacity：200set,Month
Description
Features:
- Measure transformer No-load current, No-load loss, short circuit voltage, short circuit loss and capacity.
- Three meters testing methods.
- When making three phase transformer No-load, load test, the instrument will judge if the wiring is correct automatically,and shows three phase voltage, current vector diagram.
- Finish load test under 1600kVA below distribution transformer full current for single machine. Finish 2500kVA below distribution transformer load test under 1/3 rated current (Under 1/3 rated current, the instrument can be converted to load loss parameters under rated current.)
- All test results are corrected automatically. The instrument automatic correction as follows, waveform correction, temperature correction, Non rated voltage correction and non rated current correction. The test results are more accurate.
- 320*240 high brightness LCD screen, with brightness adjustment. Touch buttons make the operation more convenient.
- Real time clock, recording test date automatically, suitable for storage and management of test results.
- Built-in panel-type thermal printer, fast print test results.
- Power down store and browse data (test object set, measurement results, test time) functions. Store up to 500groups test results, data transmission online to PC.
- Allows extended range measurement for external voltage transformer and current transformer. Measure test object of any parameters.
Packing:

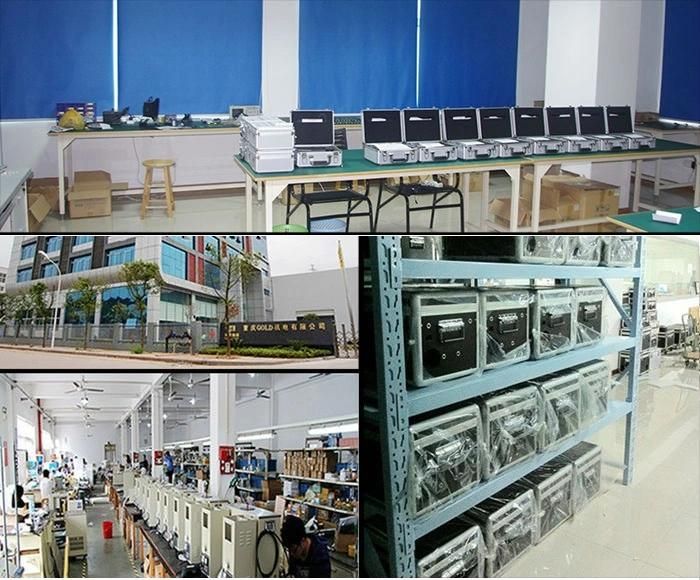

Company.
Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd is a high-tech enterprise for researching, designing, developing and producing scientific and measuring instruments. With its continuous drawing of lessonas, unremitting innovation and borrowing of advanced technology from both at home and abroad, our company is now becoming a professional manufacture of electric tester.
Exhibition.
Every year we participate in the various countries of the exhibition, will recommend our products to the needs of customers around the world.We have developed sales channels in many countries such as UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide.
And we have gained strong advantage and high reputation in international market.
