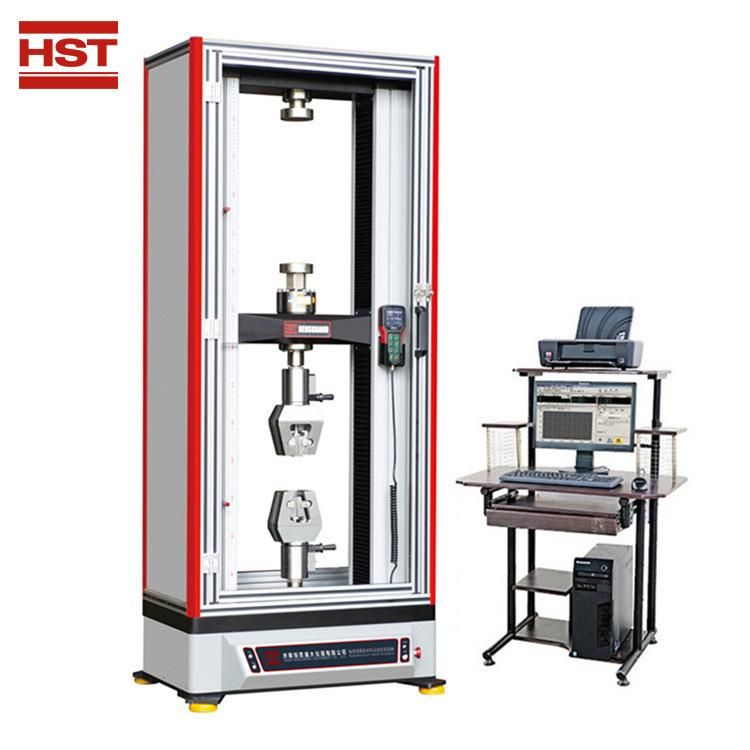

Wds-1digital Display Electronic Universal Testing Machine
Jinan Kason Testing Equipment Co., Ltd.- After-sales Service:24 Hours Technical Supply
- Warranty:12 Months
- Max Diameter of Workpiece:<500mm
- Mass Scope of Workpiece:<900kg
- Type:Tensile Testing Machine
- Maxcapacity:1kn
Base Info
- Model NO.:WDS-1
- Accuracy Grade:1
- Load Way:Electronic Load
- Loading Method:Dynamic Load
- Display:Digital
- Control:Manual Control
- Weight:100-500Kg
- Power Source:AC220V
- Oil Cylinder Position:Under
- Transport Package:Plywood
- Specification:300kg
- Trademark:HENSGRAND
- Origin:Jinan, China
- Production Capacity:1000
Description
Basic Info.
Model NO. WDS-1 Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Manual Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Transport Package Plywood Specification 300kg Trademark HENSGRAND Origin Jinan, China Production Capacity 1000Product Description
WDS-1Digital Display Electronic Universal Testing Machine1.Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle
test. Suitable for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and
training centers etc.
2.Standard:
ASTM, ISO, DIN, GB and other international standards.
3.Main Technical Parameters:
Model | WDS-1 |
Max. Load | 1KN |
Structure | Four-column Floor Model (Upper Is Compression And Lower Is Tensile OR Upper Is Tensile And Lower Is Compression) |
Control Method | Single Chip Control |
Load Accuracy | 1 Class |
Load Range | 2%~100%F·S (0.02KN~1KN) |
Displacement Resolution | 0.04um |
Test Speed | 1~1000mm/min |
Tensile Space | 800mm (Can be customized) |
Compression Space | 800mm (Can be customized) |
Test Width | 400mm (Can be customized) |
Power Supply | AC220V±10%, 50Hz (Can be customized) |
Grips | Wedge Type, Plate Type And Other Grips As Customers' Demand |
Weight | 160 KG |
Dimension | 740*420*1720mm |
