• Model NO.：KOV-216
• Temperature Range：-70oc~+150oc
• Humidity Constancy：+,-0.5%
• Cooling Rate：0.7oc~1.0oc,Min
• Pressure Range：Normal Pressure~1kp
• Pressurized Parts：High Quality Steel Plate(Rust Proof&Plastic Spray
• Insulation Material：High Quality Glass Wool
• Heater：Iron-Chrome Wire Heater
• Transport Package：Strong Plywood Case, Meet International Standards
• Specification：Standard and Customized
• Trademark：KOMEG
• Origin：Dongguan, China
• HS Code：90321000
• Production Capacity：100-500kg

Model noKUO--216LInterior Chamber sizeW 800 × H 900 × D 700mmExterior chamber sizeW 1610 × H 1990 × D 2250 mm approxTemp  range-40ºC~+150ºCTemp Uniformit<=±2.0ºC(Normal pressure,no load)Heating up time-40ºC → +150ºC  About70min  (Normal pressure,no load)Cooling time+20ºC → -40ºC   About 80min  (Normal pressure,no load)Humidity range20~98%R.HHumidity fluctuation<=±2.0%RHHumidity uniformity<=±5.0%RHPressure rangeNormal pressure~10kPaDepressurization timeNormal pressure to 10kPa  within 20min(Normal Temp, Inner chamber drying)

Remarks : Different temperature range , size , pressure range as per customer requirements .

Meet standard

GB-2423.2-2008 (IEC68-2-2) Test B: High temperature test method.
GJB360.8-2009 (MIL-STD.202F) high temperature life test.
GJBl50.3-2009 (MIL-STD-810D) high temperature test method

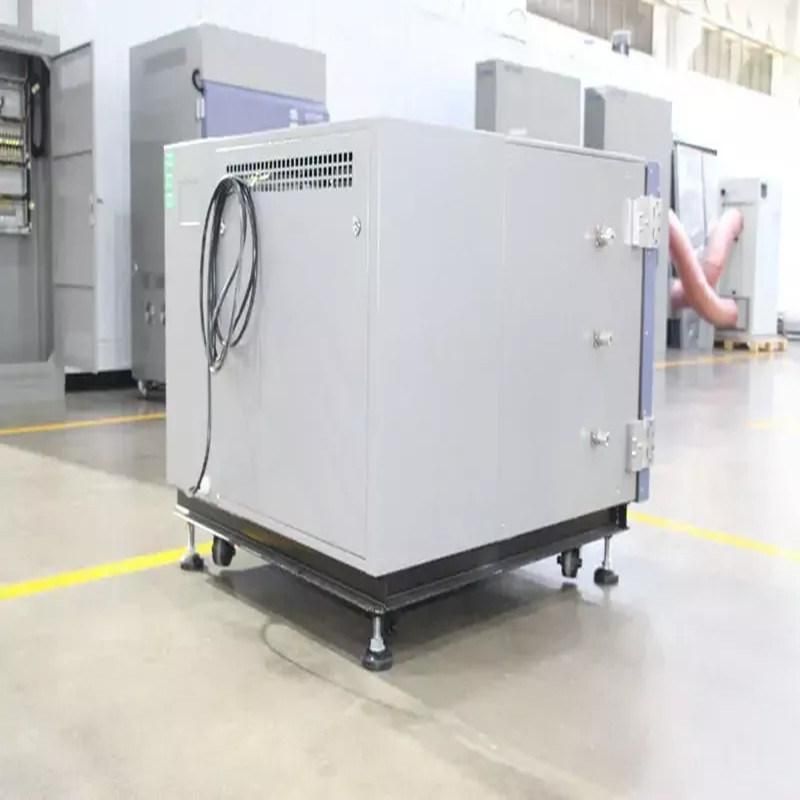

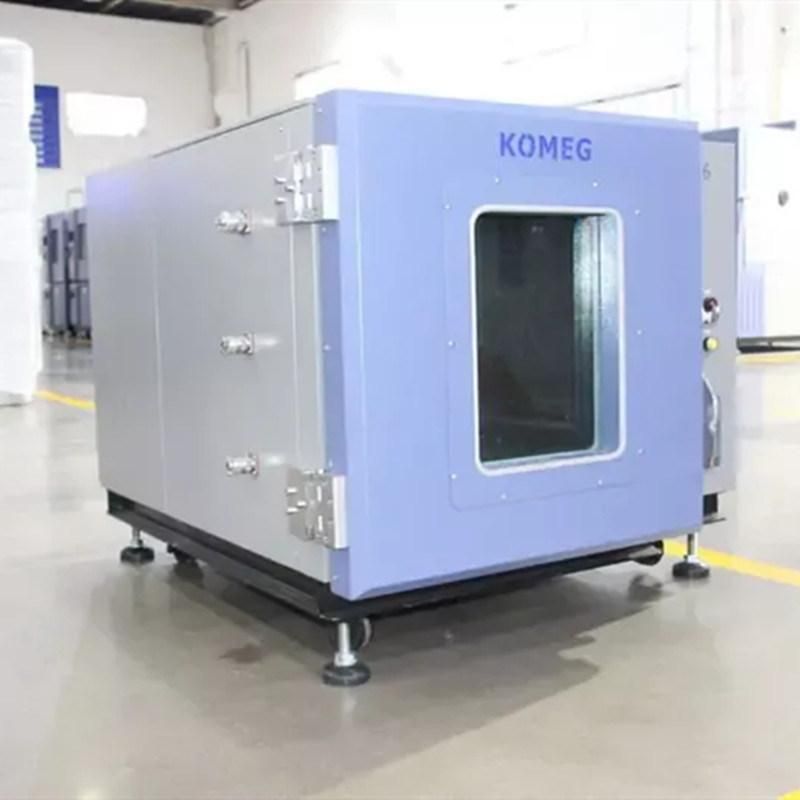

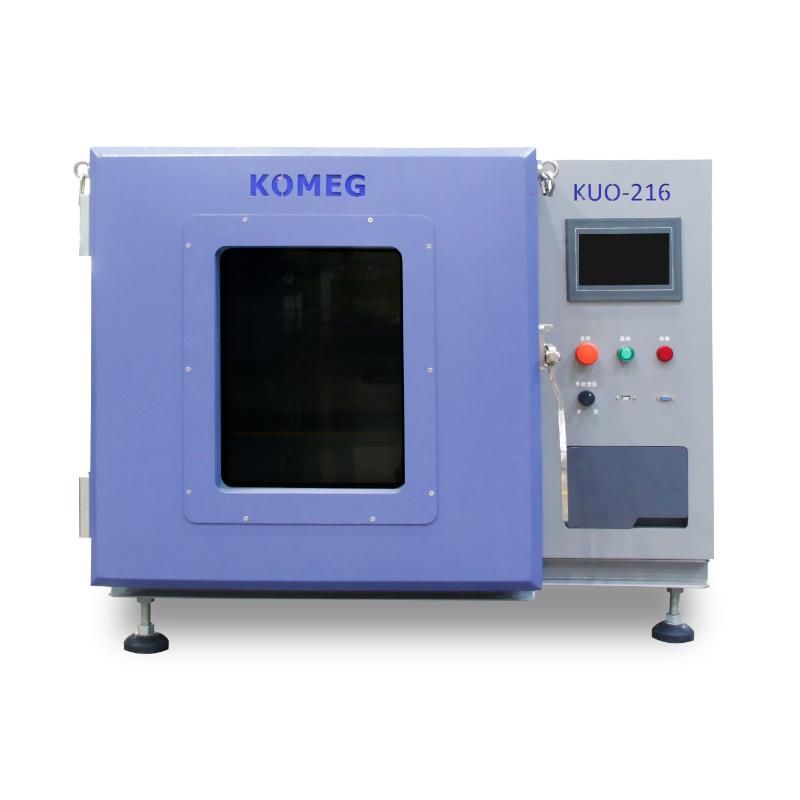

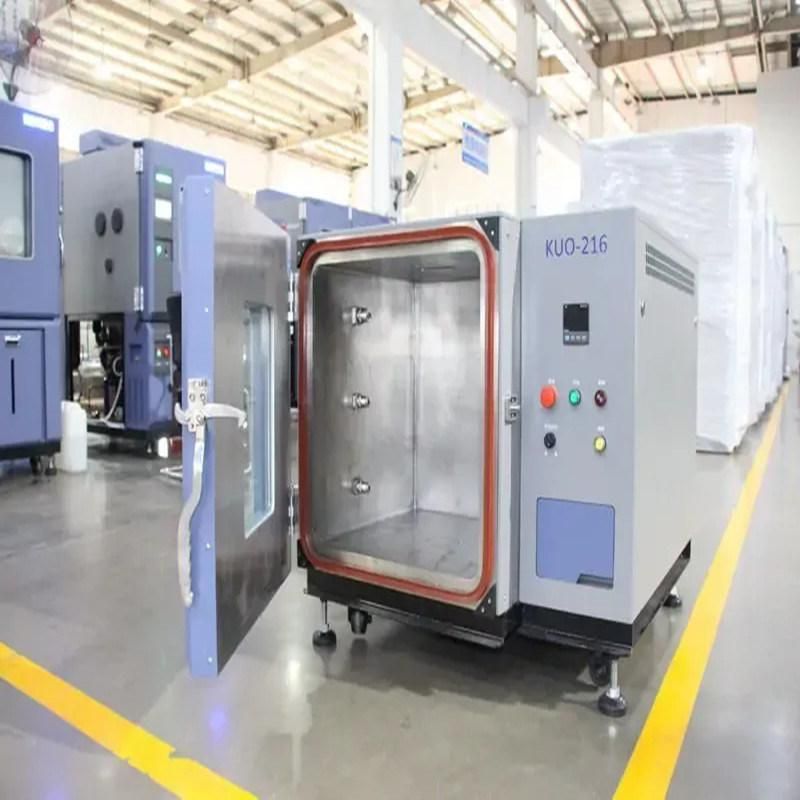

Photos show
