• Model NO.：ZLT-DCJ2
• Display：0
• Control：Manual Control
• Weight：0-100Kg
• Power Source：0
• Usage：Test Mechanical Strength in Cold
• Certification：ISO17025 Calibration Provided
• Material：Stainless Steel
• MOQ：1 PC
• Delivery：in 20-25 Days
• Transport Package：in Plywood Carton
• Specification：IEC60884-1 figure 27 and 42, IEC60811-1-4
• Trademark：ZLTJC
• Origin：Guangzhou, Guangdong, China
• HS Code：9031809090
• Production Capacity：Stock Available

Basic Info.

Model NO. ZLT-DCJ2 Display 0 Control Manual Control Weight 0-100Kg Power Source 0 Usage Test Mechanical Strength in Cold Certification ISO17025 Calibration Provided Material Stainless Steel MOQ 1 PC Delivery in 20-25 Days Transport Package in Plywood Carton Specification IEC60884-1 figure 27 and 42, IEC60811-1-4 Trademark ZLTJC Origin Guangzhou, Guangdong, China HS Code 9031809090 Production Capacity Stock Available

Product Description

Low Temperature Ram Impact Test Apparatus

Product details: Model ZLT-DCJ2:

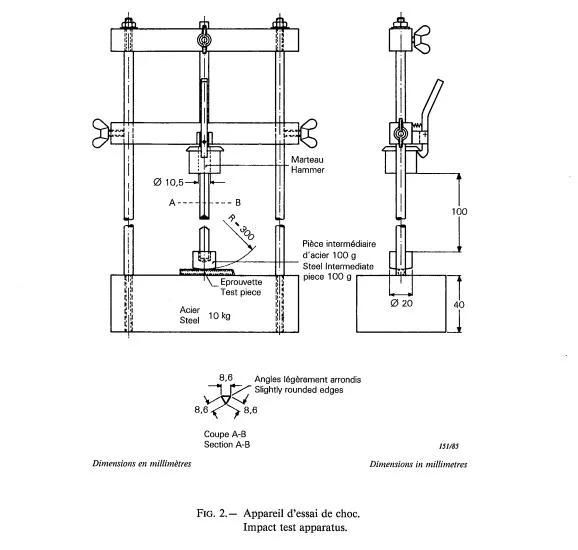

To determine the mechanical strength of insulated cords, cables, couplers, insulating sleeves and enclosures in the cold, according to IEC60811-1-4 figure 2, IEC60811-506:2012 figure 1.

Standard outfit:

1 steel block, height 40mm, width approx 200mm, mass 10kg,

2 columns, inclusive of upper crossbeam with fixing screw,

1 guide rod, threeedged, with slightly rounded edges, for heights of fall up to 100mm with maximum height of sample 40mm,

1 intermediate piece of steel, mass 100g,diameter 20mm, bottom side rounded R=300mm.

1 set mass of the falling weight is 100g, 200g, 300g, 400g, 500g, 600g, 750g, 1000g, 1250g, 1500g, impact height:10~250mm.

2 intermediate piece, of steel, mass 100 g, with striking bolt of diameter 20 mm and 6 mm, for impact tests according to IEC60811-506 Fig 1

  Mass of hammer for power cables in fixed installations


overall diameter		Mass of the hammer
4.0		100g
