Test Instrument

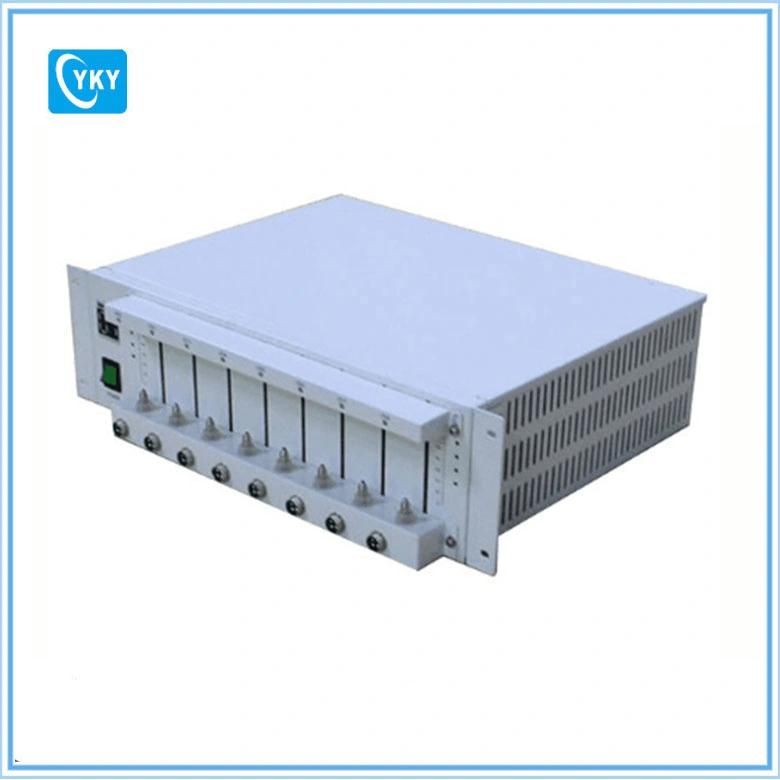

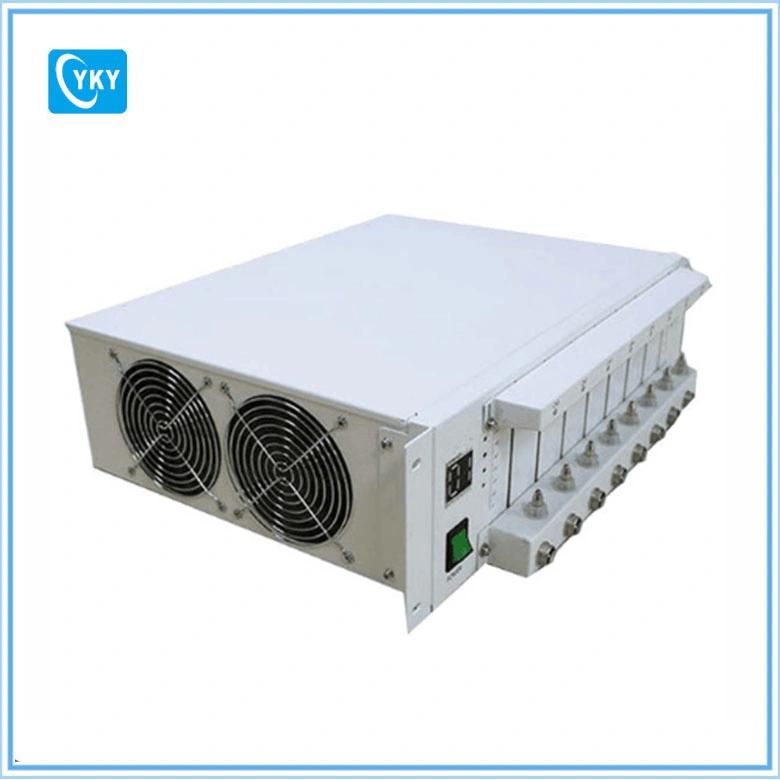

Coin Cell Tester 8 Channel Battery Analyzer for Lithium Battery

Zhengzhou CY Scientific Instrument Co., Ltd.
  • Transport Package:Standard Exporting Packing
  • Specification:Customized
  • Trademark:CYKY
  • Origin:China

Base Info

  • Model NO.:CY-3008n-5V6A-S
  • HS Code:9030332000
  • Production Capacity:300

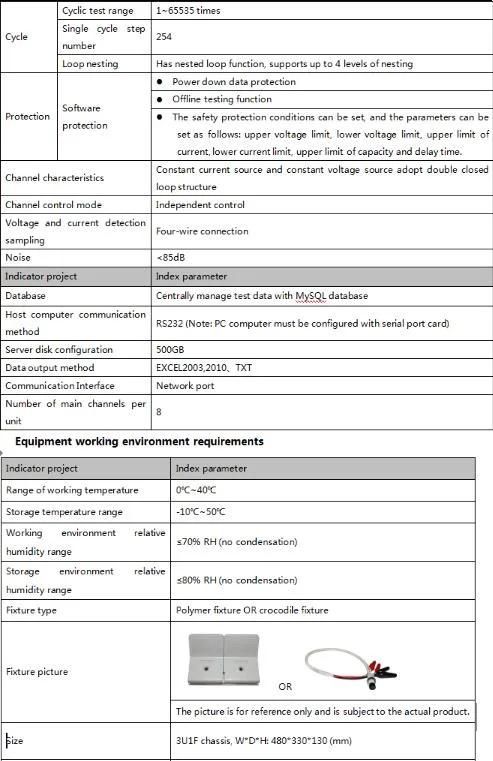

Description

Indicator project

Index parameter

Input power

AC 220V ±10% / 50Hz

Input active power

400W

input resistance

≥1MΩ

Resolution

AD:16bit;DA:16bit

Voltage

Constant voltage range control

0.1V~4.9V

Minimum discharge voltage

Both ends of the upper and lower clamps can be discharged to 1.0V, and the length of 2m line can be up to 1.2V.

Precision

± 0.05% of FS

Stability

± 0.05% of FS

Current

Output range per channel

30mA~6000mA

Precision

± 0.1% of FS

Constant voltage cutoff current

12mA

Stability

± 0.05% of FS

Power

Single channel output power

30000mW

Stability

±0.02% of FS

Time

Current response time

Maximum current rise time <20ms

Step time range

≤ (365 * 24) hours / steps

Data record

Data recording condition

Minimum sampling time: 1s

Lowest sampling voltage: 10mV

Minimum sampling current: 0.001A

Recording frequency

1Hz

Charging

Charging mode

Constant current charging, constant voltage charging, constant current constant voltage charging, constant power charging, constant resistance charging

Closing condition

Voltage, current, relative time, capacity, -V

Discharge

Discharge mode

Constant current discharge, constant power discharge, constant resistance discharge, constant voltage discharge

Closing condition

Voltage, current, relative time, capacity, -V


Coin Cell Tester 8 Channel Battery Analyzer for Lithium Battery

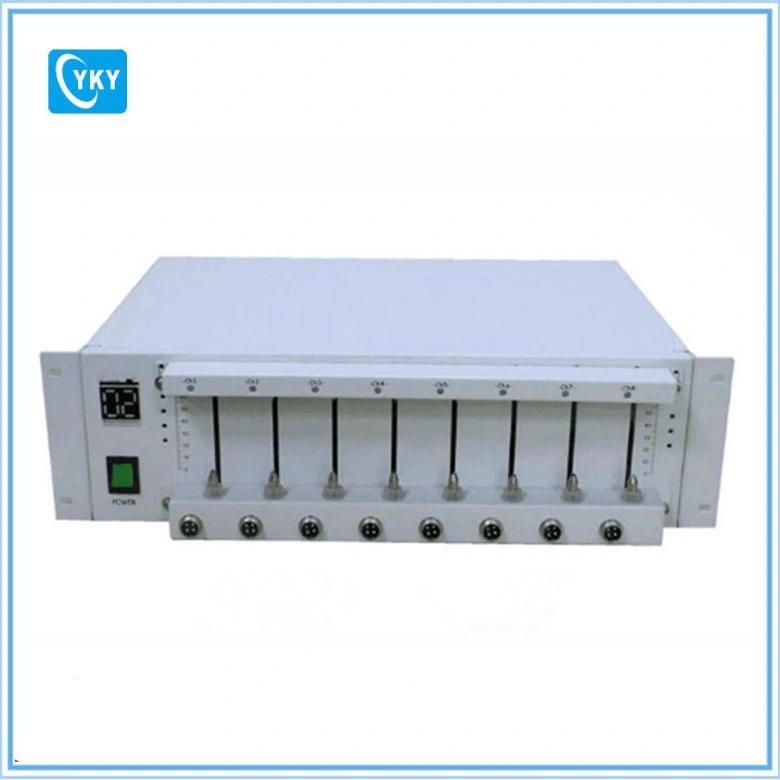

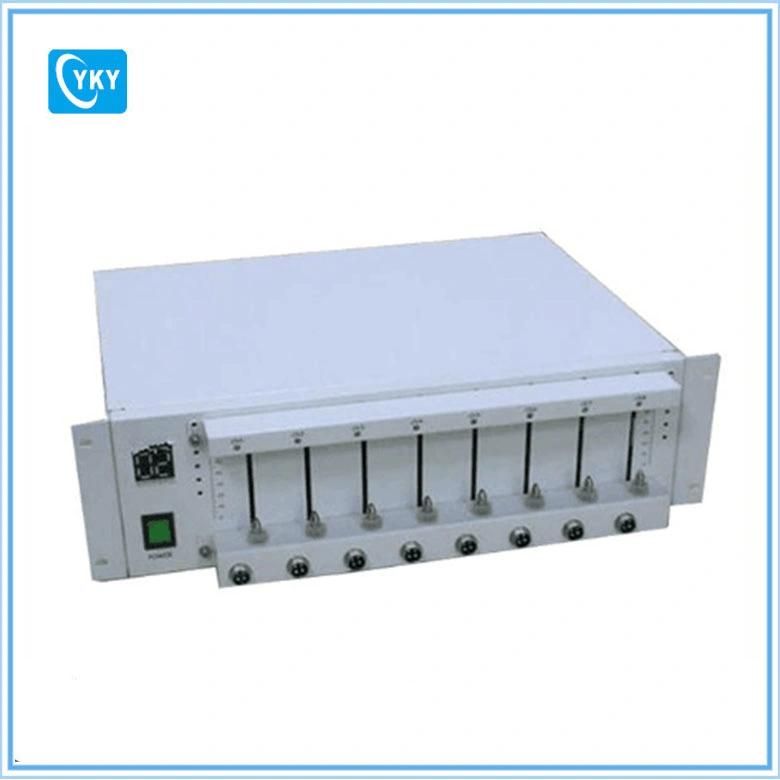

Pictures:
