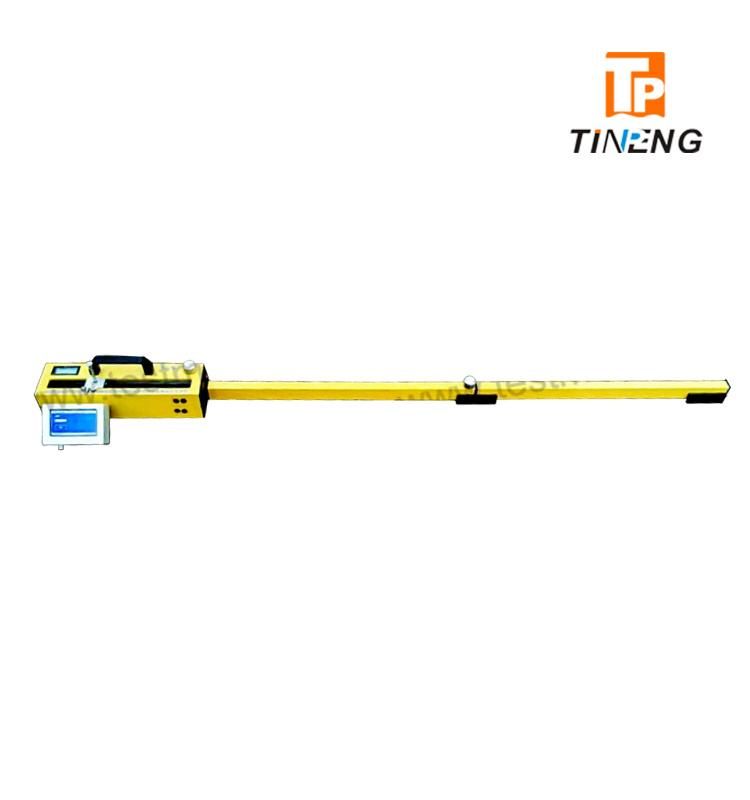

Turnout & Switch Gauge
Zhuozhou Tianpeng Imp. & Exp. Trade Co., Ltd.- Transport Package:Portable Instrument Case
- Specification:1500*120*140mm
- Trademark:C-Tech
- Origin:China Mainland
Base Info
- Model NO.:C-Tech
Description
Basic Info.
Model NO. C-TechProduct Description
overview
Turnout & switch gauge is used for the detection and maintenance of the turnout, and can be used for the comparison and analysis of the real-time measurement data and the historical measurement data, so as to improve the work efficiency and ensure the quality and technical requirements of the turnout construction.
Assembly
The measuring instrument is a separate structure with data acquisition host, measuring host and measuring bracket.
Data acquisition host: handheld PDA;
Measuring host includes: vertical displacement measurement and display module;
Measuring bracket: horizontal bar placed between rails, mainly supporting the function of measuring host;
