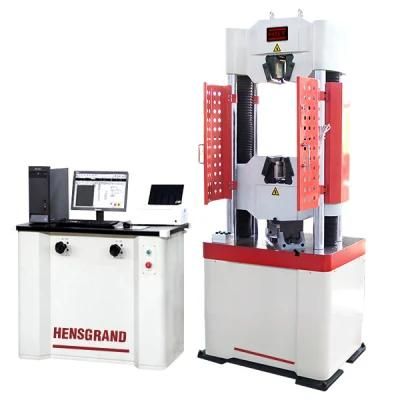

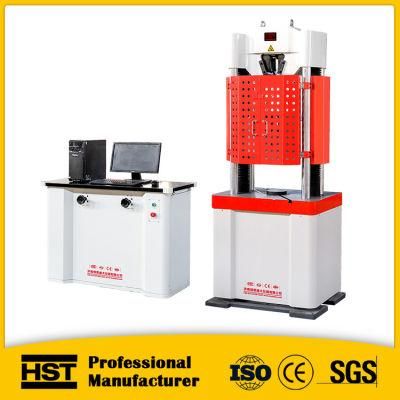

Computer Control Hydraulic Universal Tensile Testing Machine 300kn

Jinan Kason Testing Equipment Co., Ltd.
  • Type：Universal Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Mechanical Load
  • Loading Method：Static Load
  • Display：Computer

Base Info

  • Model NO.：WAW-300D
  • Control：Computer Control
  • Weight：1000-2000Kg
  • Power Source：AC380V
  • Oil Cylinder Position：Under
  • Sample Clamp：Hydraulic Grips
  • Tension Space：650mm
  • Compression Space：500mm
  • Sampel Grips：Customized
  • Safe：Protection Net
  • Color：Blue or White
  • Transport Package：Standard Sea Shipping Case
  • Specification：740x580x2035mm
  • Trademark：Hensgrand or OEM
  • Origin：Jinan, Shandong
  • HS Code：9031809090
  • Production Capacity：500 Sets,Month

Description

WAW-
300DWAW-
600DWAW-
1000DWAW-
1500DWAW-
2000DMax Test Force300kn600kn1000kn1500kn2000knStructure6 columnControl wayConstant stress uniform deformation constant displacement three closed loop control and program controlMax.load 2000kNMiddle cross beam adjust methodNut rotateLoad accuracy≤±1% /≤± 0.5% Load range2%-100%FS /0.4%-100%FS Load resolution1/300000Deformation Measurement Range 2%~100%FSDeformation accuracy≤±1%/± 0.5%Displacement resolution 0.01mmDisplacement error≤±0.5%Max.piston stroke250mmMax piston moving speed 0-50mm/min stepless speed adjustingCrosshead lifting speed200mm/minMax. tension test space 8008008008501000Max.Compression Test Space650650600650750 Distance between columns460530650650780Clamping methodHydraulic clampRound specimen clamping range10-3213-4013-6013-60Φ12-Φ70Flat specimen clamping range0-150-150-200-200-35Flat specimen clamping width115mmCompression plate size Φ240mmBending roller distance450mmWidth of bending rollers 160mmPower supply3-phase,AC380V, 50Hz(can be customized)     Computer Control Hydraulic Universal Tensile Testing Machine 300kn
6. Our Business Scope
A: Universal Testing Machine: Electronic/hydraulic    Single column/door tye WDS/WDW/WE/WEW/WAW
B: Impact Testing Machine: JB-300B/500B JBS-300B/500B  150J to 750J
C: Compression Testing Machine: YES-2000/3000/3000D  YAW-300
D: Hardness Testing Machine: Rockwell, Brinell, Vicker, Universal, Portable-leeb/webster/shore
E: Force Gauge/Tension Meter: NK DTF HF ATG etc.
F: Friction/Wear  Resistance Tester: MMW  MRH   MMU
G: Metallographic Equipments:cutting machine, polishing and grinding machine, mounting machine, microscopes.
