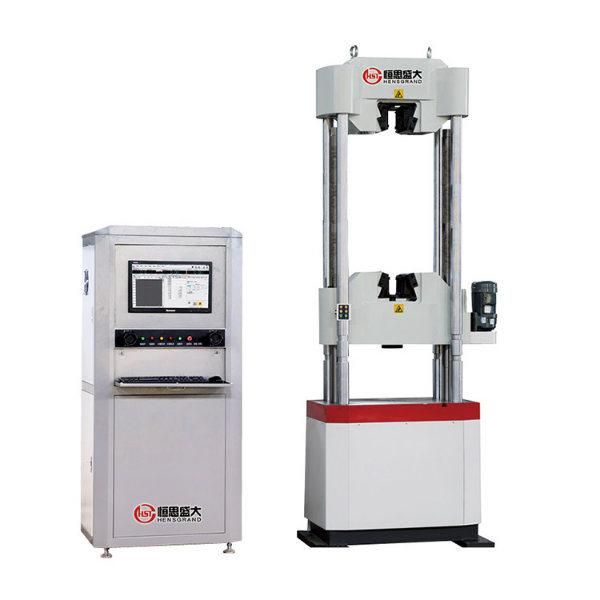

• Model NO.：HST-2000D
• Control：Manual Control
• Weight：1000-2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Max.Load (Kn)：2000kn
• Max. Tension Test Space：850mm
• Sample Clamp：Hydraulic Grips
• Compression Space：500mm
• Sampel Grips：Customized
• Safe：Protection Net
• Max.Compression Test Space：650mm
• Color：Red and White
• Load Resolution：1,300000
• Deformation Accuracy：1%
• Transport Package：Standard Sea Shipping Case
• Specification：740x580x2035mm
• Trademark：HST
• Origin：Jinan, Shandong
• HS Code：9031809090
• Production Capacity：500 Sets,Month

HST-
300DHST-
600DHST-
1000DHST-
1500DHST-

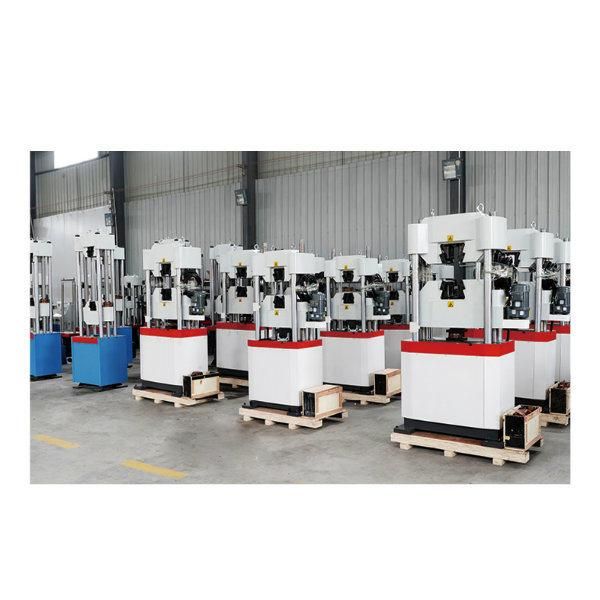

2000DMax Test Force300kn600kn1000kn1500kn2000knStructure6 columnControl wayloading process manual control,computer automatic data dealingMax.load 2000kNMiddle cross beam adjust methodNut rotateLoad accuracy≤±1% /≤± 0.5% Load range2%-100%FS /0.4%-100%FS Load resolution1/300000Deformation Measurement Range 2%~100%FSDeformation accuracy≤±1%/± 0.5%Displacement resolution 0.01mmDisplacement error≤±0.5%Max.piston stroke250mmMax piston moving speed 0-50mm/min stepless speed adjustingCrosshead lifting speed200mm/minMax. tension test space 800800800850850Max.Compression Test Space650650600650650Distance between columns460530650650780Clamping methodHydraulic clampRound specimen clamping range10-3213-4013-6013-60Φ12-Φ70Flat specimen clamping range0-150-150-200-200-35Flat specimen clamping width115mmCompression plate size Φ240mmBending roller distance450mmWidth of bending rollers 160mmPower supply3-phase,AC380V, 50Hz(can be customized)5. Hydraulic testing machines in factory:
