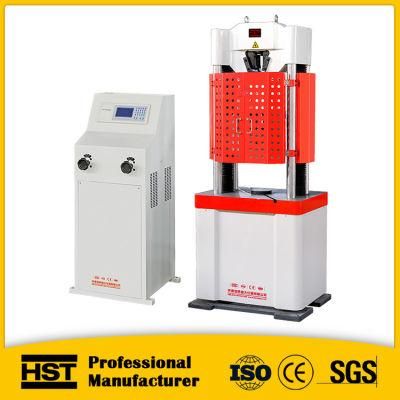

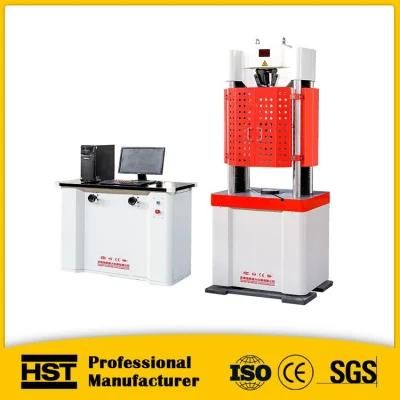

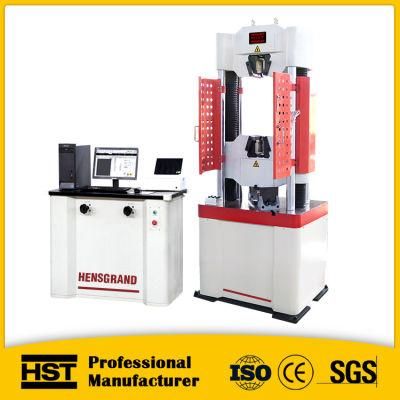

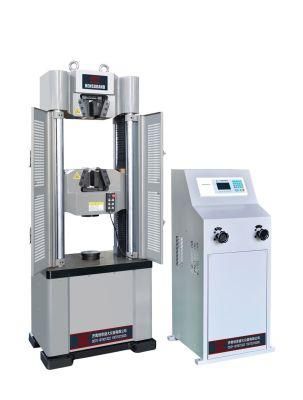

Waw-2000A Hydraulic Universal Tensile Compression Testing Machine
Jinan Kason Testing Equipment Co., Ltd.- After-sales Service：Online Technical Support
- Warranty：1 Year
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：>20000kg
- Type：Universal Testing Machine
- Maxcapacity：>1000KN
Base Info
- Model NO.：WaW-2000A
- Accuracy Grade：0.5
- Load Way：Mechanical Load
- Loading Method：Static Load
- Display：Computer
- Control：Manual Control
- Weight：1000-2000Kg
- Power Source：AC380V
- Oil Cylinder Position：Under
- Sample Clamp：Hydraulic Grips
- Tension Space：650mm
- Compression Space：500mm
- Sampel Grips：Customized
- Safe：Protection Net
- Color：Blue or White
- Transport Package：Standard Sea Shipping Case
- Specification：740x580x2035mm
- Trademark：Hensgrand or OEM
- Origin：Jinan, Shandong
- HS Code：9031809090
- Production Capacity：500 Sets,Month
Description
0-80
Max. Tension Test Space (mm)
1400
1400
1000
Compression space
1200
1200
800
Nominal maximum specimen sizes Diamater(mm)
Φ13-26,Φ26-45,
Φ45-60
Φ13-26,Φ26-45,
Φ45-60
Φ20~Φ50, Φ50~Φ80, Φ80~Φ110
Nominal maximum specimen sizes Thickness(mm)
5~20, 20~40
5~30, 30~60
5~50, 50~100
Column Effective Spacing(mm)
850
850
1000
Platen dimensions(mm)
204
204
204
Load frame(mm)
1200*800*3620
1200*800*3620
1510*1040*4500
(5500)
Weight(kg)
6000
6000
6500
