High Precision Servo Motor Wire Tensile Testing/Test Machine

Dongguan Haida Equipment Co., Ltd.
  • Type：Tensile Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital

Base Info

  • Model NO.：HD-604B-S
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Load Accuracy：Within 0.5%
  • Motor：Panasonic Servo Motor
  • Resolution：1,250, 000
  • Test Speed：0.1-500mm,Min (Adjustable )
  • Warranty Period：One Year
  • Delivery Time：15 Days After Receive The Deposit
  • Screw：High Precise Ball Screw
  • Delivery Term：15 Days After Receive The Deposit
  • Sensor：Celtron Load Cell
  • Power：1phase, AC220V, 50Hz
  • Transport Package：Strong Wooden Case
  • Specification：ASTM D903 GB,T16491 GB,T1040 GB,T8808 GB13022 GB,T
  • Trademark：Haida
  • Origin：Dongguan, China
  • HS Code：9024109000
  • Production Capacity：150 Sets Per Month

Description

ItemDescriptionMax. Force2000 kg (20KN)Load cellGermany brand load cell for high accuracyControl systemPC with windows 7 systemMotorPanasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rodForce readingkgf, Ibf, N, KN, T etcStoke1200mm including fixtureLoad cell Resolution1/250,000Load Precision≤0.5%Test speed0.1~500mm/min (adjustable by PC)Test width≤400mmSoftwareTM 2101Curves displayLoad- elongation, Elongation-time, Time-elongation, Stress-strainData displayMax. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…Safety featuresE-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat  shearing:
ASTM B565 Shear Aluminum Products Test Equipment
ASTM C273 Shear - Sandwich Materials - Flatwise Test Equipment
ASTM D1002 Lap Shear Testing for Adhesively Bonded Metals
ASTM D3163 Lap Shear Rigid Plastic Test Equipment
ASTM D3164 Lap-Shear Sandwich Testing Machine
ASTM D3528 Tension Strength of Double Lap Shear Adhesive Joints
ASTM D4255 In-Plane Rail Shear of Polymer Matrix Composite Materials
ASTM D5868 Lap Shear Adhesion Plastic Bonding
ASTM D732 Shear Punch Test Equipment for Plastics
ASTM D905 Wood Adhesive Bonds in Shear by Compression Loading
ASTM E229 Shear Strength Testing of Structural Ashesives
ISO 13445 Block-Shear Method for Shear Strength of Adhesive Bonds between Rigid Substrates
ISO 4587 Tensile Lap-Shear Strength of Rigid-to-Rigid Bonded Assemblies

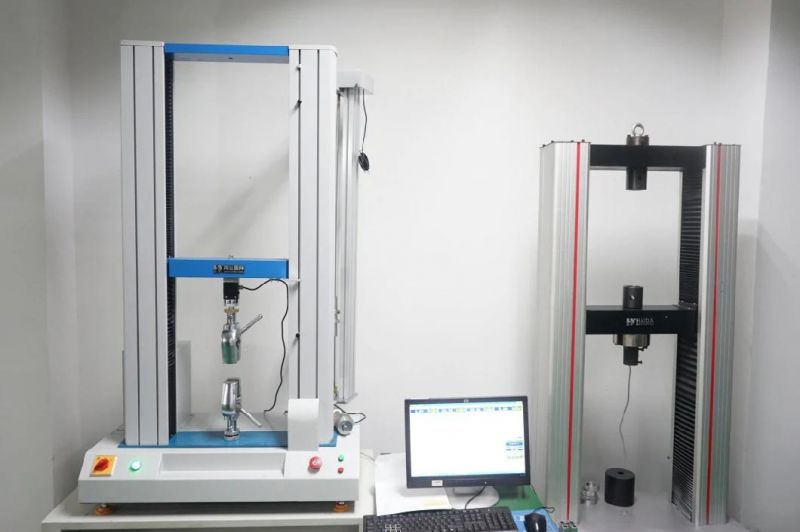

High Precision Servo Motor Wire Tensile Testing/Test Machine

High Precision Servo Motor Wire Tensile Testing/Test Machine

Packaging & Shipping:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

Our Services:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
