• Model NO.：XL-1000
• Illumination Intensity：340nm ~Full Spectrum
• Bpt：40~120degree C(+,-3degree C)
• Bst：38~120degree C(+,-3degree C)
• Sunlight Exposure Cycle：0.01~999 Hours 59mins
• Spray Water Flow (L/Min)：1~2.4
• Explore Area (Cm2)：7500
• Transport Package：Wooden Case
• Specification：CE Certified
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：90312000
• Production Capacity：100 Sets,Month

ModelXL - 1000

Internal Dimension WxHxD (mm)

1000x1000x1000


External Dimension WxHxD (mm)

1550x2150x1550
 Tube Using Life (H)1500Tube Power1KW/6KWIllumination  Intensity340nm
0.4~1.5w/m²Full spectrum
1200±200w/m²Lighting Filter TypeInner filterQuartzOuter filterQuartz

Simulated Test Status

 Test samples: Explore under outer space

Cooling System

Water cooled or wind cooled

Temperature Control

Range of the Test Cabinet

RT+15°C~80°C

Humidity Control Range of the Test Cabinet

30%~98%

Rotating Speed of the Samples

Holder (RPM)

1~5 adjustableDiameter of Sample Shelf(mm)500±50

Sunlight Exposure Cycle

0.01~999 hours 59mins

Raining Period/ Time

Raining Period:1~240mins,discontinuous-type, adjustableRaining Time:1~9999mins, adjustable, water spray pressure 70~130Kpa

Spray water flow(L/min)

1~2.4Explore Area(cm2)7500Power AC 380 V(±10%),50/60HZ ,3ph 5 Lines

Special customized Xenon Accelerated Weathering Meter :

  1)Temperature, Humidity Range:

    Temperature : -40°C ~ 200°C (under the condition without water spray;Adjustable and Controllable )

    Humidity:  30%~98%R.H (under the condition without water spray;Adjustable and Controllable )

  2)Accuracy:

 Temp. Fluctuation:±0.5°C;  Temp. Uniformity: ±3°C;

 Humidity Fluctuation:±2.5%R.H.  ;   Humidity Uniformity:±5%R.H.  ;

 Irradiance Tolerance: ±15% w / m² ;

 (Note: above accuracy under the condition without water spray)

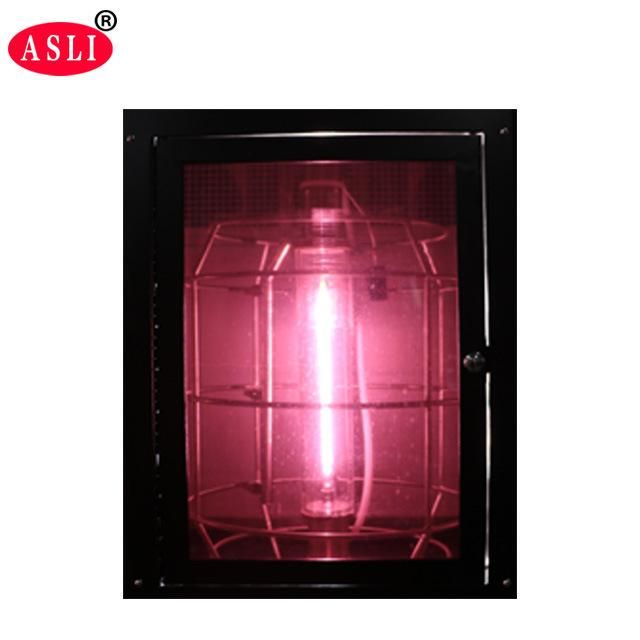

  3) Light Source

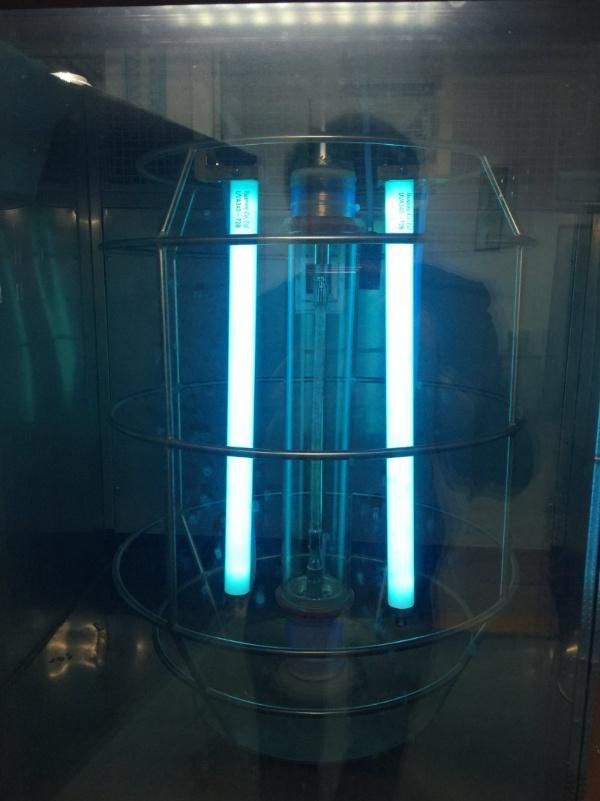

    Wave length of UV light tube, 340nm, fixed can not changeable (tube dia.38mm, power 40w)

   Irradiation of UV light tuble,,0.5~1.5w/m² ( adjustable)

   Rainfall Time : 1~9999min  (adjustable )

   Rainfall Cycle: 1~240 min ( adjustable )

   Light Source Band:  290nm~800nm( fixed,unadjustable )

   Distance between arc center to sample shelf:200-400mm (Non-standard sample except)

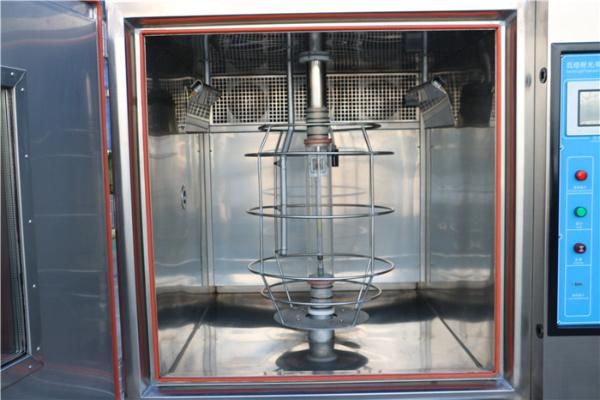

  Sample Shelf Rotating Speed:1~3r/min ( Stepless speed regulation)

  Water Spray Time: 0~9999min, continuous and adjustable ;

  Water spray stop time:0~9999min ,continuous and adjustable;

  Illumination Time:available for continuous programming and controllable when programmed ; uncontrollable when running with fixed value ;

  Black Panel Temperature: Inner Test ZoneTemperature add 2~30°C (Can not adjustable)

Cooling Method: Mechanical air cooling or water cooling

(Note : Above technical parameters was the measured data is after two hours constant temperature humidity without loading under room temperature (26°C),Relative Humidity ≤85%R.H (without condensing), and good ventilation. )

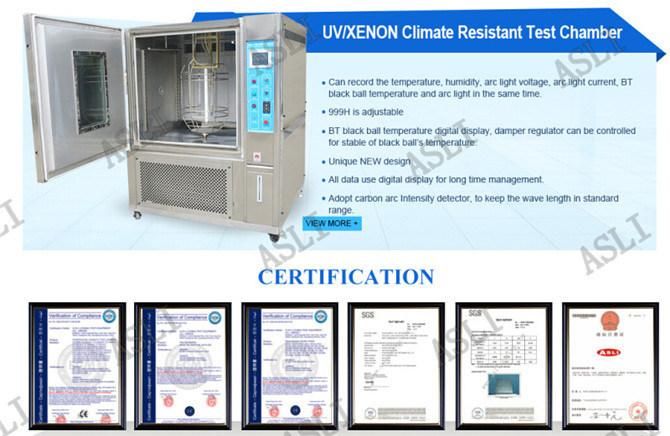

Environmental Xenon Arc Lamp Accelerated Climate Testing Chamber For Paints And Coating
