• Model NO.：ES-10
• Weight：1000-2000Kg
• Power Source：AC380V
• Vibration Wave：Sine, Random, Shock
• Vibration Directions：Vertical & Horizontal
• Frequency Range：5Hz to 3500Hz
• Max. Acceleration：1000m,S2
• Max. Speed：1.8m,S
• Impact Displacement：51mm
• Moving Coil Weight：14kg
• Moving Coil Size：Dia. 240 mm
• Transport Package：Wooden Case
• Specification：ES-10
• Trademark：ASLI
• Origin：China
• HS Code：90312000
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. ES-10 Weight 1000-2000Kg Power Source AC380V Vibration Wave Sine, Random, Shock Vibration Directions Vertical & Horizontal Frequency Range 5Hz to 3500Hz Max. Acceleration 1000m/S2 Max. Speed 1.8m/S Impact Displacement 51mm Moving Coil Weight 14kg Moving Coil Size Dia. 240 mm Transport Package Wooden Case Specification ES-10 Trademark ASLI Origin China HS Code 90312000 Production Capacity 100 Sets/Year

Product Description

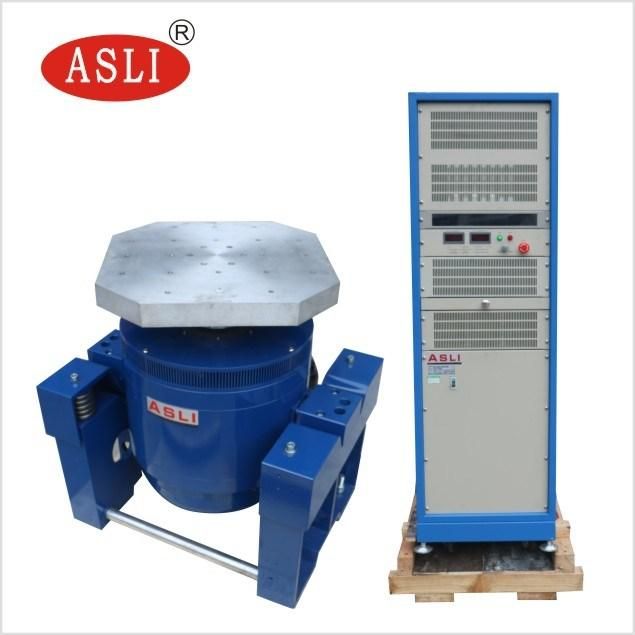

High Frequency Vibration Shaker and Shock Test Machine For PCB Vibration Test

Product Description

Model	Rated Sine Force (N)	Rated Random	Force (N)	Frequency Range (Hz)	Rated Acceleration (m/s2)	Rated Speed (m/s)	Rated displacement (p-p) mm	Max. Loading (Kg)	moving coil (Kg)
ES-3	3000	3000	3-3500	1000	1.6	25	100	3.5	Φ150
ES-3a	3000	3000	3-3500	400	1.6	40	120	9	Φ230
ES-6	6000	6000	3-3500	1000	1.6	25	180	6.5	Φ230
ES-6a	6000	6000	3-3500	1000	1.6	51	250	12	Φ230
ES-10	10000	10000	3-3000	1000	1.8	51	270	14	Φ240
ES-20	20000	20000	3-3000	1000	1.8	51	300	30	Φ320
ES-30	30000	30000	3-2800	1000	1.8	5l	450	40	Φ450
ES-40	40000	40000	3-2800	1000	1.8	51	500	50	Φ450
ES-50	50000	50000	3-2700	1000	1.8	51	750	50	Φ450

High Frequency Vibration Shaker and Shock Test Machine For PCB Vibration Test is used to educational, research, and laboratory environments. Adopted the double- magnetic circuit structure, self-generated skeleton action circles, Airborne Support and roller bearings and linear guidance, trunnion isolation advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.


High Frequency Vibration Shaker and Shock Test Machine For PCB Vibration Test Features:

1 The careful design of the moving coil skeleton, has higher first-order axial resonant frequency
2 Light armature, high stiffness, 3500 Hz frequency.
3 Computer connecting line control, immediately store materials.
4 Display controlling chart.
5 Low resistance and high performance design, high efficiency, low cost.
6 High reliability, low fault.

Packing Detail:

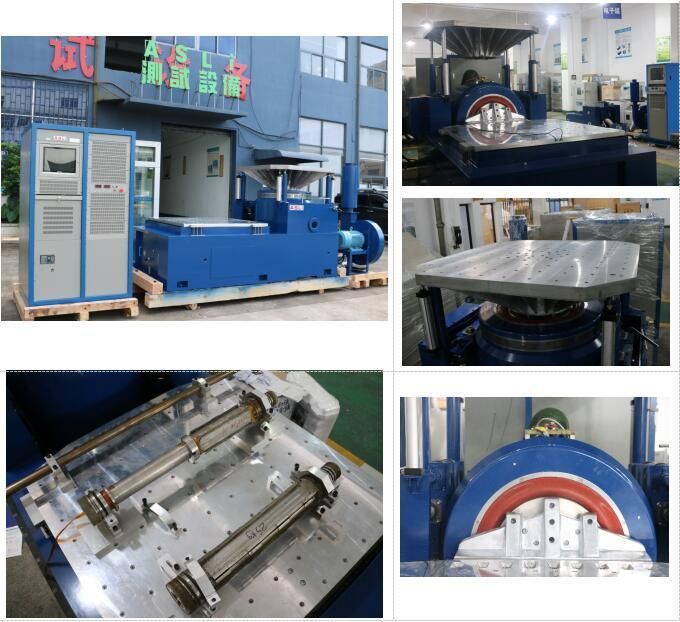

For Vertical Expander:
VT vertical extended-bench and specified clamps, precision calculated, elaborate design, to ensure the customer acquired the best performance according to perfect structure, high quality material and workmanship.

 For Horizontalk Vibration

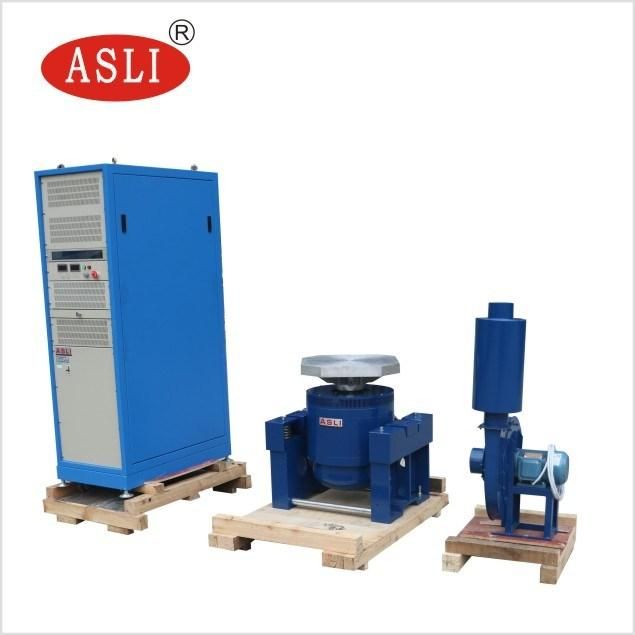

Air Cooling Energy-Efficient High Acceleration Electro-Dynamic Shaker Systems with Fixture
