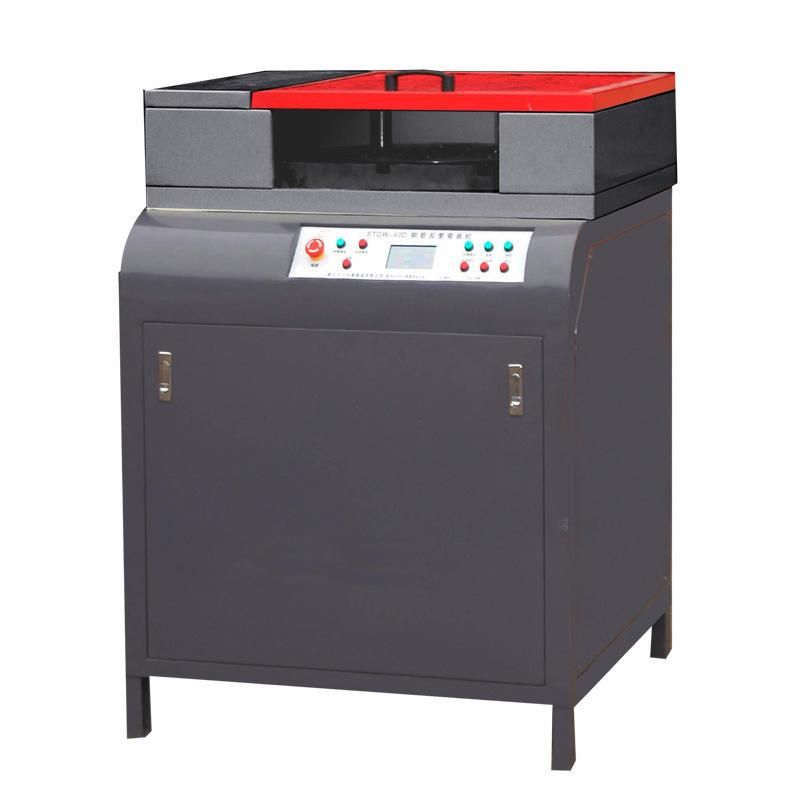

Stgw-40d Steel Bar Bending Machine
Shanghai Civil & Road Instrument Co., Ltd.- After-sales Service：24 Hours Online Support
- Warranty：1 Year
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Bending Testing Machine
- Maxcapacity：0
Base Info
- Model NO.：STGW-40D
- Accuracy Grade：1
- Load Way：Electronic Load
- Loading Method：Dynamic Load
- Display：Digital
- Control：Manual Control
- Weight：161kg
- Power Source：AC380V
- Oil Cylinder Position：Under
- Product Name：Stgw-40d Steel Bar Bending Machine
- Curved Steel Bar Diameter Range：Dia10-Dia40mm
- Positive Bending Angle：0-180deg;S Set Arbitrary
- Reverse Bending Angle：0-20 Degree Set Arbitrary
- Working Disc Speed：1.4r,Min
- Motor Power：1.5kw
- Transport Package：Wooden Case
- Specification：55x45x65cm
- Trademark：SHTG
- Origin：China
- HS Code：9031809090
- Production Capacity：100PCS,Month
Description
