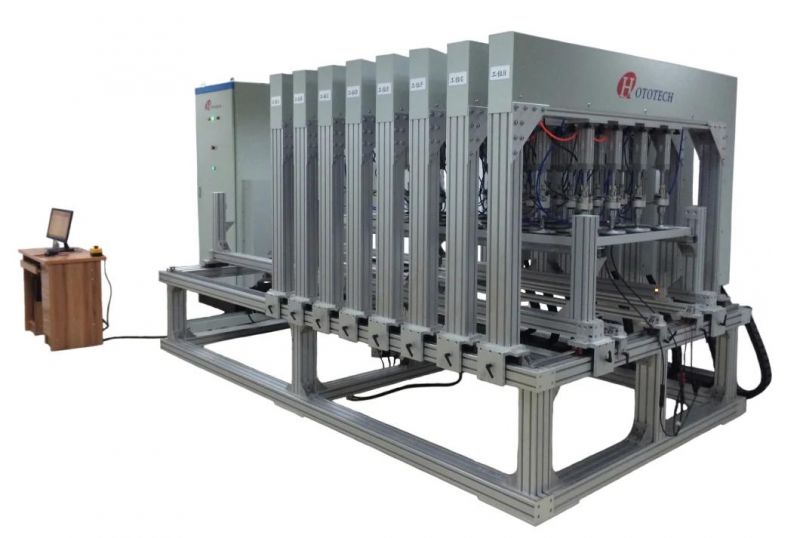

PV Module Mechanical Load Tester

Dongguan Hong Tu Instrument Co., Ltd.
  • Warranty：12 Months
  • Loading Method：Dynamic & Static
  • Display：Digital
  • Control：Computer Control
  • Weight：1000-2000Kg
  • Power Source：Can Customization

Base Info

  • Model NO.：HTPV-08
  • Power：220V 50Hz
  • Delivery：30 Working Days
  • Testing Positive Load：5400 PA
  • The Reverse Load：2400 PA
  • Cycle Times：Free Setting
  • Dynamic Load Test Frequency：7s
  • Dynamic Load：1000PA 1000tims
  • Pressure Control Accrate：5%
  • Transport Package：Wooden Case
  • Specification：280*180*195cm
  • Trademark：HOTOTECH
  • Origin：Dongguan,China
  • HS Code：9013809000
  • Production Capacity：500 Set a Month

Description

dimensionL 280 × D 180 × H 195 cm loadPositive load 5400Pa, reverse load :2400Pa (Pressure can setting)Cycle timesfree settingDynamic load test frequency7s±3sDynamic load1000Pa,1000timsPressure control accurate5%Pneumatic and force value feedback ways

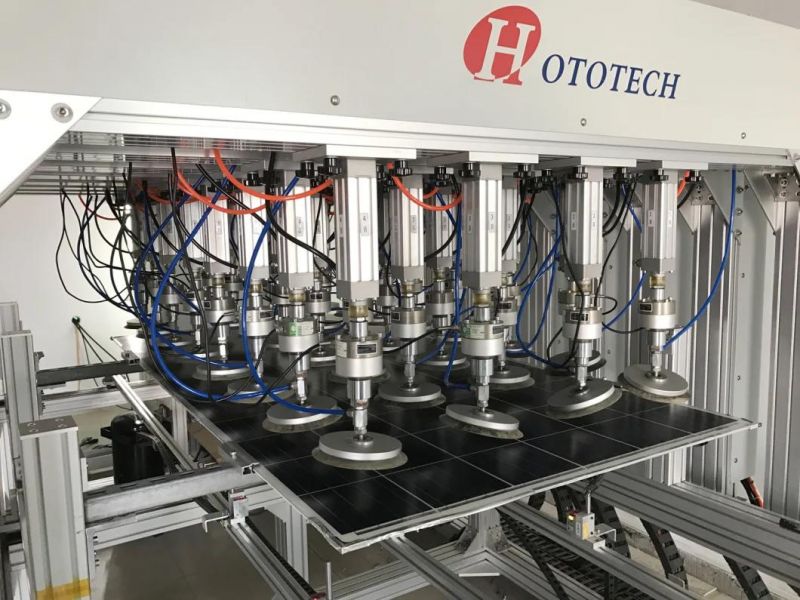

low friction force cylinder,tensile pressure sensor(accurate:0.1N)

The maximum test dimension 2000mm×1000mm(can Customized)Current continuity system DC power, DC 120V/20A Cylinder 4 groups , in total 8 piecesSingle the maximum output> 200 kgTelescopic stroke150mmSucker diameter120mmSucker(with cylinder) space horizontal and vertical≤200mm rotation angle≥15°Report support outputWorld, Excel, PDF , JPG etc format
