• Model NO.：HTPV-07
• Specification：IEC61215, IEC61646, GB,T 18911and GB,T9535
• Trademark：HOTOTECH
• Origin：Dongguan, Guangdong Province
• HS Code：9031809090
• Production Capacity：100 Sets , Month

Basic Info.

Model NO. HTPV-07 Specification IEC61215, IEC61646, GB/T 18911and GB/T9535 Trademark HOTOTECH Origin Dongguan, Guangdong Province HS Code 9031809090 Production Capacity 100 Sets / Month

Product Description

Solar PV Module Wet Leakage Current Tester

Solar PV Module Wet Leakage Current Tester Standard
It's satisfy IEC61215 standard

Solar PV Module Wet Leakage Current Tester purpose
It's to evaluate the insulation of the module under wet operating conditions and verify that moisture from rain, fog, dew or melted snow does not enter the active parts of the module circuitry , where it might cause corrosion , a ground fault or a safety hazard

Solar PV Module Wet Leakage Current Tester Feature
1.Test Tank
1)Sixe:2100*1000*250mm (W*D*H) , thick :15mm
2)Material: Insulation resistance PP material , nice strength , high insulation, corrosion reistance
2.Constant temperature system, by HOTOTECH reaearch and development, can heating and cooling temperature:22±3ºC
3.Liquid resistivity :leass than 3500Ω.cm
4.Liquid surface tension: Less than 3N.m
Spray system : spray adopt UL lab special spray 3 pieces, every spray with water pressure gauge and water flow control value, it's can doing multi direction spray water pressure and water flow can be adjusted for the junction box
5.Programmable insulation withstand voltage tester :
5.1 Out put current the max 0-5000V (adjustable) ,
5.2 Leakage current the max limit value:5mA
5.3 Output speed rate:500V/S
5.4 Insulation resistance test range:1MΩ~9999MΩ
5.5 Leakage current test range :0.001~5.000mA (DC)

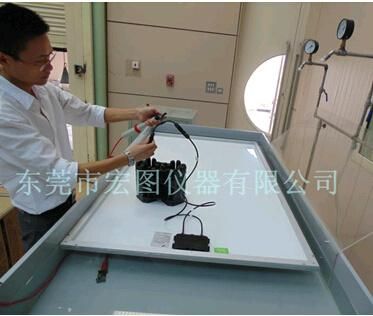

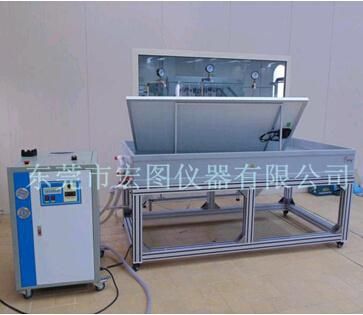

Solar PV Module Wet Leakage current tester picturer





Company Introduction

  Dongguan HongTu Instrument Co.,Ltd specilizes in developing and producing testing machines

  We treasure the value of good quality , reasonable price and efficient service with customer satisfaction. we expert ourselves in providing our customers the best suitable testing designs and high quality testing machines to make you the utmost profit

 Please feel free to contact us for any enquiries from our wide range of products
