• Model NO.：SXWG
• Loading Method：Static Load
• Display：LCD
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC 110V,220V at Customized
• Accuracy：±5%
• Test Voltage：2500V
• Shot Circuit Current：>20mA
• Transport Package：Plywood Case
• Specification：ISO9001 SGS
• Trademark：Sansion
• Origin：Wuhan, China
• HS Code：9030899090
• Production Capacity：100 Units

Basic Info.

Model NO. SXWG Loading Method Static Load Display LCD Control Computer Control Weight 0-100Kg Power Source AC 110V/220V at Customized Accuracy ±5% Test Voltage 2500V Shot Circuit Current >20mA Transport Package Plywood Case Specification ISO9001 SGS Trademark Sansion Origin Wuhan, China HS Code 9030899090 Production Capacity 100 Units

Product Description

General Information:

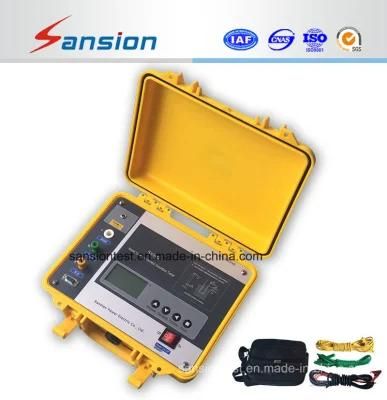

SXWG Water Cooled Generator Insulation Tester is designed to test for water cooled generator, and insulation test onsite or laboratory.

Features:
√ LCD screen, English interface, easy to operate.
√ Auto calculates absorption ratio, and auto save the data per 15 seconds/ 1 minute/ 2 minutes/ 10 minutes.
√ Large output current, short circuit current is more than 20mA.
√ HV generating module is enclosed completely, build-in protective resistor, safe and reliable.
√ High anti-interference ability, suitable for onsite operating at HV substation.
√ Auto discharging after test completed, and discharging process to be monitored by real time.
√ Rechargeable battery, continuous working duty is 10-12 hours. Packing with charger.

Specifications:
√ Accuracy:±5%
√ Measuring range: 0.1M~1TΩ
√ Test voltage:2500V
√ Shot circuit current:>20mA
√ Measuring duration:1 minute~10 minutes(depends on measuring method)
√ Recharging supply: 180~270VAC  ,50Hz/60Hz±1% (Mains supply or generator)
√ Battery: Large capacity Lithium battery(4000mAH/36V)
√ RS232 port.(option)
√ Working condition: Temperature -10~40ºC,Relative humidity 20~80%

Warranty: One year quality guarantee after shipment.
More details please kindly contact with Sansion Power.Thank you!
