• Model NO.：PHQ-300H
• Maxcapacity：<1000KN
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Length：1700mm
• Width：750mm
• Height：110mm
• Gross Weight：650kg
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO. CE. SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. PHQ-300H Maxcapacity <1000KN Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC380V Oil Cylinder Position Under Length 1700mm Width 750mm Height 110mm Gross Weight 650kg Transport Package Packed in Fumigated Wood Box Specification ISO. CE. SGS Trademark JP Origin Shanghai China HS Code 90311000 Production Capacity 1000 Sets/Month

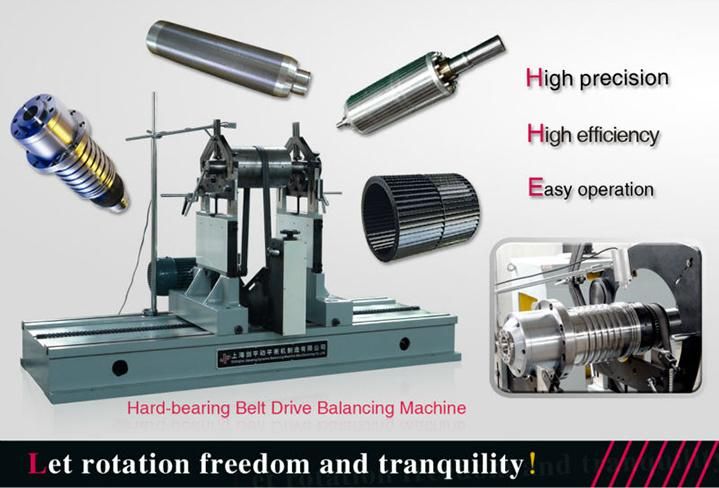

Product Description

Production Description

Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application

Delivery inspection



Range of Application

This balancing machine is widely used in balancing rotatable bodies, such as kinds of medium-sized and small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool, textile machinery, tool, spindle, etc...Driven by belt, equipped with Variable speed motor to drive. Which ensures high quality balancing and precision. Quick booting, easy operation. And high efficiency

Factory Outlook



Special Features

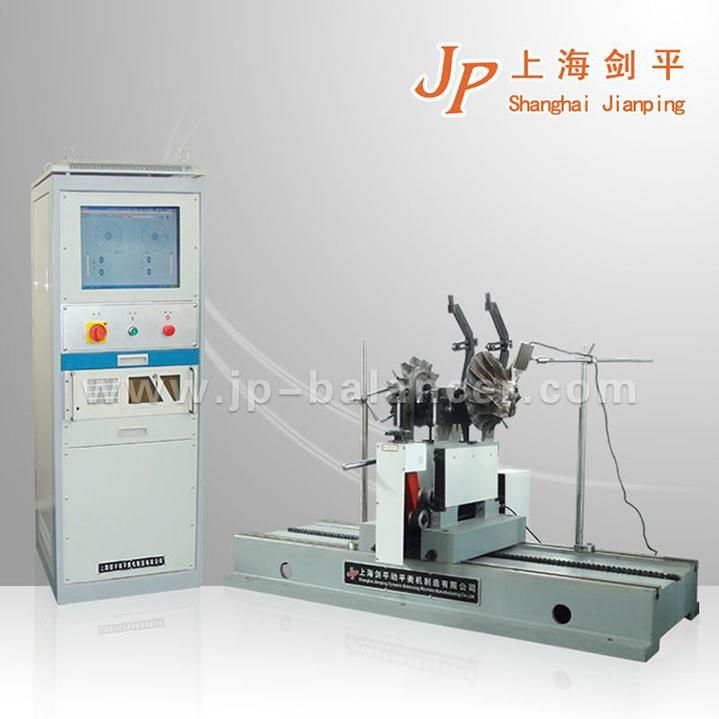

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments

Workshop debugging



Certificates



Production Parameters


Technical data at a glance	PHQ-160	PHQ-300	PHQ-500
Max Mass of Workpiece (kg)	160	300	500
Max Diameter of Workpiece (mm)	1000	1220	1500
Distance between Two Support Bearings (mm)	150~1200	150~1200	150~1200
Journal Diameter Scope of Workpiece (mm)	15-75(can increase to75-180)	15-75(can increase to75-180)	15-75(can increase to75-180)
Diameter Scope of Driving Belt (mm)	30~350	40~400	40~400
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min)	756,1176 +Stepless speed regulation	756,1176 +Stepless speed regulation	756,1176 +Stepless speed regulation
Motor Power (kw)	1.5 Frequency conversion	1.5 Frequency conversion	2.2 Frequency conversion
Min Achievable Residual Unbalance Amount(emar)	0.5g.mm/kg	0.5g. mm/kg	0.5g. mm/kg
