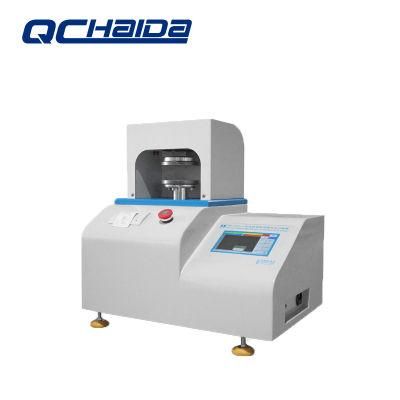

Automatic Paper Ring Crush and Edge Compressive Testing Machine

Dongguan Haida Equipment Co., Ltd.
  • Type：Compression Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital

Base Info

  • Model NO.：HD-A513-2
  • Control：Computer Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Platen Parallelism：± 0.05 mm
  • Precision：< 0.5%
  • Ring Crush Sample：152×12.7 mm
  • Compressed Space：500 mm
  • Resolution：1,100,000
  • Edge Crush Sample：25×100 mm
  • Dimension (L*W*H)：790*510*1060 mm
  • Test Speed：12.7 mm,Min
  • Operation Mode：LCD
  • Display Mode：LCD
  • Transport Package：Strong Wooden Case
  • Specification：Tappi-T472; T808, T810, T811, T818
  • Trademark：HAIDA
  • Origin：China
  • HS Code：9024109000
  • Production Capacity：1000PCS,Year

Description

Capacity  (Optional)10, 20, 50, 100, 200 kgResolution1/100,000Precision< 0.5%Operation ModeComputerDisplay ModeLCDPlaten100×100 mm or depending on the diameter of the flat crush sampleCompressed Space500 mmPlaten Parallelism± 0.05 mmRing Crush Sample152×12.7 mmEdge Crush Sample25×100 mmTest Speed12.7 mm/minDimension (L×W×H)790×510×1060 mmWeight Approx. 51 kgPower AC220V, 1.5A

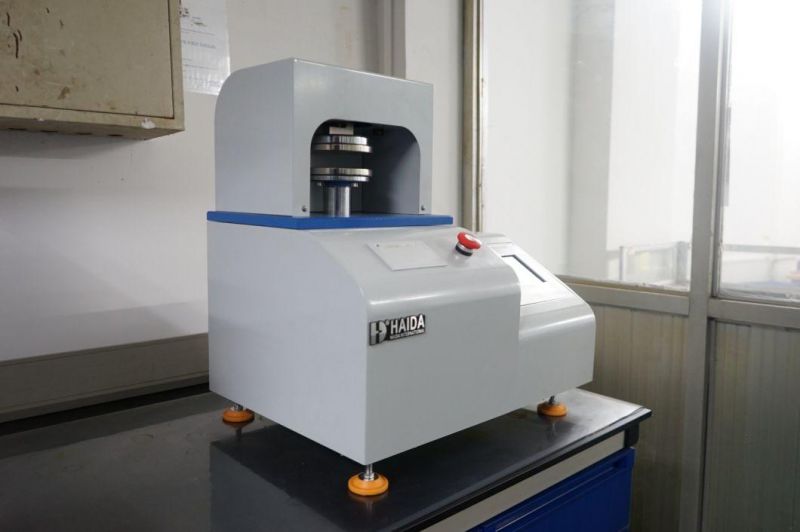

Automatic Paper Ring Crush and Edge Compressive Testing Machine

The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.

Automatic Paper Ring Crush and Edge Compressive Testing Machine
