• Model NO.：HD-A502S-1200
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC220V
• Resolution：1,100, 000
• Unit ( Switchable)：Kg, Lb, N
• Dimension (L*W*H)：2000*1200*2030mm
• Power：1phase, 220V, 50Hz
• Operation Mode：PC
• Stacking Test Machine：0.5%
• Load Cell：Celtron Sensor
• Test Space(L*W*H)：1200*1200*1200mm
• Speed of Compression：10 ± 3 mm,Min
• Maximum Capacity：2 Ton
• Transport Package：Strong Plywood Case
• Specification：ASTM D624, TAPPI, ISO
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9024800000
• Production Capacity：150 Set Per Month

Basic Info.

Model NO. HD-A502S-1200 Control Computer Control Weight 500-1000Kg Power Source AC220V Resolution 1/100, 000 Unit ( Switchable) Kg, Lb, N Dimension (L*W*H) 2000*1200*2030mm Power 1phase, 220V/ 50Hz Operation Mode PC Stacking Test Machine 0.5% Load Cell Celtron Sensor Test Space(L*W*H) 1200*1200*1200mm Speed of Compression 10 ± 3 mm/Min Maximum Capacity 2 Ton Transport Package Strong Plywood Case Specification ASTM D624, TAPPI, ISO Trademark Haida Origin Dongguan, China HS Code 9024800000 Production Capacity 150 Set Per Month

Product Description

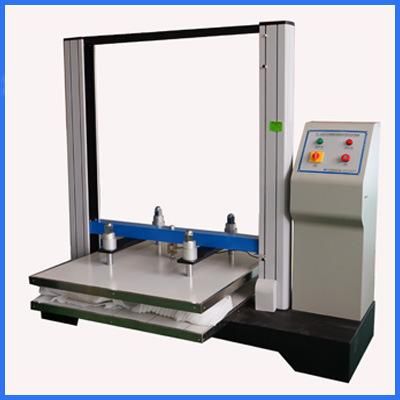

          Computer Servo Control Box Compression Testing Equipment

1. Usage
Corrugated Package Compression Strength Test Equipment mainly used in the various types of secondary normal size corrugated carton compressive strength test or other material made of compressive strength of packaging container FCL compressive strength test and test, such as food and beverage instant noodles packing, cosmetic packaging, beer packing, cereals and oil and so on the packaging. The instrument control accuracy is high, the development of advanced technology, for the present domestic the most cost-effective one universal carton compression tester.

2. Design criteria:
TAPPI-T804JIS-20212GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3GB/T4857.4

3. Test Principles:
Test samples in test enginery two parallel between linking piece, and then even to put pressure on record load and linking piece displacement, until the test sample fracture, or load or linking piece a says to the expected value so far.

4. Features of Corrugated Package Compression Strength Test Equipment:

1). Using a single-screen operation; do not need to switch the screen;

2). With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;

3). Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;

4). The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;

5). Choosing translational, comparative mode at the same time to make a number of curve data comparison;

6). With a variety of measurement units, Measure In Imperial & Metric are switchable;

7). With self-return & auto-correction function;

8). With automatic magnification function, in order to achieve the most appropriate size of the graphics;

9). With the user-defined Test methods; with experimental data analysis function;

10). It can do test of compression, bending, pressure holding & fatigue.

11). With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically;

12). Using a single-screen operation; do not need to switch the screen;

13). With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;

14). Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily.



5. The Main Parameters of Compression Strength Test Equipment:

Item	Description
Max. Force	2000 kg (20KN)
Load cell	1 load cell for highest accuracy
Control system	Windows 7, RS-232 interface
Motor	Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force reading	kgf, Ibf, N, KN, T etc
Load cell Resolution	1/250,000
Load Precision	within ±0.25%
Parallelism of Platens	Parallel within ±2.5mm
Effective test area	1000×1200×1000mm
Test speed	10 ±3mm/min (0.01~200mm/min adjustable)
Software	TM 2101
Data display	Load, displacement, speed, loading rate and elapsed time
Safety features	E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat

(The table parameters for the company Standard Model parameters, we support customer customization parameters)
