• Model NO.：HD-E808
• Power Source：AC220V
• Certificate：ISO9001: 2008,Ce
• Warranty Period：One Year
• Delivery Time：15 Days After Receive The Deposit
• pH：Nss Acss6.5~7.2 Cass 3.0~3.2
• Design Criteria：Cns, JIS, K5400, Z2371, ASTM
• Spray Quantity：1.0~2.0 Ml , 80cm2 , Hr
• Brine Temperature：35°c±1°c
• Test Chamber Temperature：Nss Acss 35±1°c Cass:50±1°c
• Temperature Precision：±1°c
• Power：AC220V
• Transport Package：Strong Wooden Case
• Specification：ISO9001: 2008, CE
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：9031809090
• Production Capacity：150 Sets,Month

Basic Info.

Model NO. HD-E808 Power Source AC220V Certificate ISO9001: 2008,Ce Warranty Period One Year Delivery Time 15 Days After Receive The Deposit pH Nss Acss6.5~7.2 Cass 3.0~3.2 Design Criteria Cns, JIS, K5400, Z2371, ASTM Spray Quantity 1.0~2.0 Ml / 80cm2 / Hr Brine Temperature 35°c±1°c Test Chamber Temperature Nss Acss 35±1°c Cass:50±1°c Temperature Precision ±1°c Power AC220V Transport Package Strong Wooden Case Specification ISO9001: 2008, CE Trademark Haida Origin Dongguan, China HS Code 9031809090 Production Capacity 150 Sets/Month

Product Description

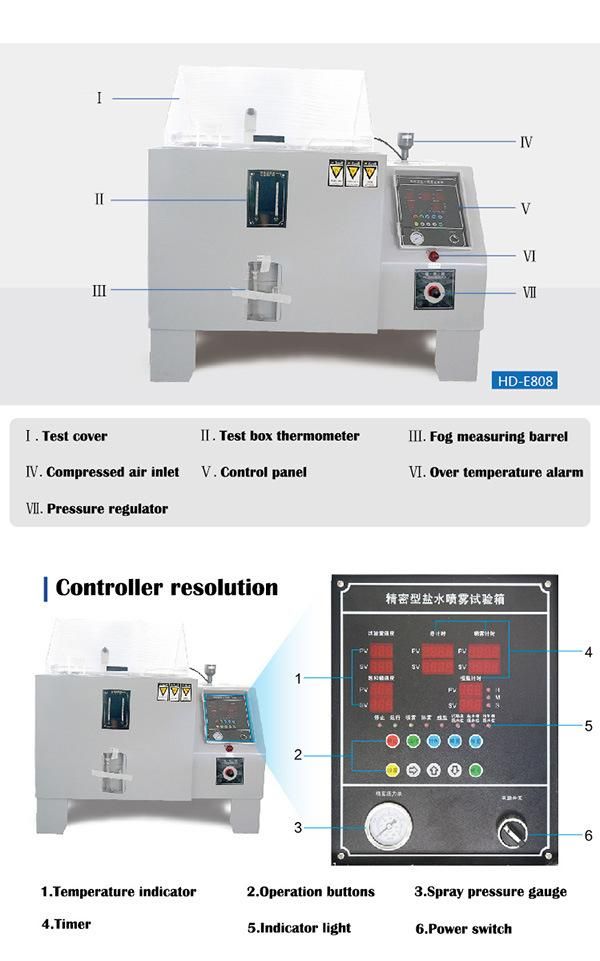

    Stainless Steel Accelerated Salt Spray Corrosion Testing Equipment


Product Description
Salt spray testing equipment adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on. After these anti-corrosive treatment, salt spray corrosion tester can test the corrosion resistance of their products.

GENERL SPECIFICATIONS
Packaging Dimensions: (WxDxH) 1260*680*1250mm
Power supply source: single-phase, 220V±10%, 50Hz (can be appointed)
Gross Weight: 140kg
HS Code: 8479899990


Mian Parameters

Model	HD-E808-60
Internal Dimension (W*D*H)	600*450*400mm
External Dimension(W*D*H)	1060*580*1050mm
Chamber material	P.V.C rigid plastic plate, thickness 8mm
Sample tray	Diameter 10mm glass fiber rod, anti-rust V-shape plastic steel to make sure sample in 15~30 degree inclined
Temperature Range	Room temperature ~ 55ºC
Temperature Fluctuations	≤±0.5ºC
Temperature Uniformity	≤±2ºC
Temperature Precision	±1ºC
Spraying method	Continuous and Periodic spray type
Test Chamber Temperature	Salt Spray Method (NSS ACSS)35±1ºC Corrosion-resistant Testing Method (CASS) 50±1ºC
Saturated air Barrel Temperature	Salt Spray Method (NSS ACSS)47±1ºC Corrosion-resistant Testing Method (CASS) 63±1ºC
Brine Temperature	35ºC±1ºC
Spray Quantity	1.0~2.0 ml / 80cm2 / hr
PH value	Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method(CASS)3.0~3.2
Lab Volume	108L
Brine Tank Capacity	25L
Multiple Safety Protection Devices	Current discharge protection, over pressure protection, over temperature protection, over load fuse protection
Accessories	Testing Salt/ Measuring tank/Nozzle Equipment x 1 set
Air source	1HP Air pump (provided by buyer)
Test criteria	ASTM B117-08, ISO 9227

PRODUCT FEATURES
1, Durable 8 mm PVC construction, anti-corrosion and easy to clean.
2, Reservoirs with mixing system on stand.
3, Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.
4, Exposure zone lined with corrosion-resistant PVC sheets.
5, Clear cover allows viewing of test conditions.
6, Peaked cover prevents dripping of condensation onto samples.
7, Water seal and water level protection system.
8, Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
9, Automatic DI water fills to humidifying tower.
10, Digital temperature control.
11, Integral over-protection on heaters.
12, Low water cut-off protection on humidifying tower.




Our Company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
