• Model NO.：GBW-60B
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Delivery Time：3 Days After Get Payment
• Certification：Ce ISO
• Transport Package：Standard Export Packing
• Trademark：HST
• Origin：China
• HS Code：9024101000
• Production Capacity：300 Sets Per Month

Basic Info.

Model NO. GBW-60B Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Delivery Time 3 Days After Get Payment Certification Ce ISO Transport Package Standard Export Packing Trademark HST Origin China HS Code 9024101000 Production Capacity 300 Sets Per Month

Product Description

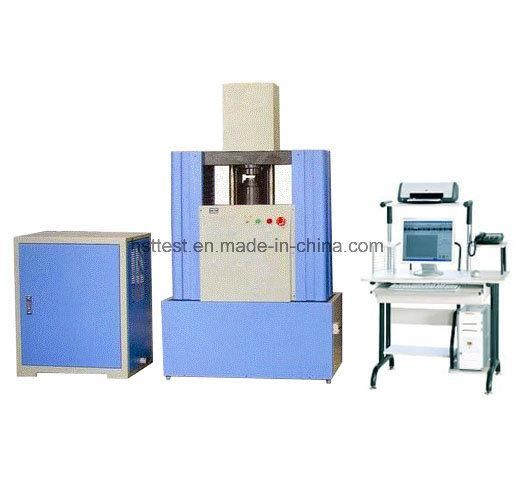

Computer Control Erichsen Cupping Testing Machine

Contact: sunny  Phone:+8615866777590


Application:
The Cupping testing Machine ( Erichsen Tester ) is precise technology testing machine which is used for sheet metal &  strip steel rolled stock etc. It can complete test of plastic deformation for sheet metal & strip steel rolled stock .

Standard:
It conforms to ASTM E 643-78 & GB4156-84 named Testing Machine for Metal Cupping test

Feature:
1, Computer control operation, according to the preset program and data, automatic clamping, stamping, measurement, calculation, parking
2, Auto stop when crack appears, convenient to observe the crack;
3, With computer controlled the test, user can easy get test report, and save, recall, print test result;
4, Turnover grips, punch and sample is easy to change;
5, With peak value memory function, like max. punch load, max. deformation deep etc;
6., Adopting a composite oil cylinder can meet hydraulic clamp and press piston and cylinder;

Specification:

Model	GBW-60B
Specimen thickness	Standard 0.1-2mm,( Non-Standard 0.1-3mm)
Max. Specimen Width	100mm
Max. Punch stroke	60mm
Clamping piston stroke	19-21mm
Max. Cupping Force	60kN
Max. Clamping Force	25kN
Test mold specifications (Standard)	Punch diameter:Φ20±0.05mm,cushion mold hole diameter : Φ33±0.1mm Fixed mold hole diameter: Φ27±0.05mm Standard press mold hole diameter : Φ27±0.05mm; ( Non-Standard )
Test mold specifications (Non-Standard)	Punch diameter : Φ15±0.05mm , Φ8±0.02mm, Φ3±0.02mm Press mold hole diameter : Φ18±0.1mm, Φ10±0.1mm ,Φ3.5±0.1mm Fixed mold hole diameter : Φ21±0.02mm ,Φ11±0.02mm , Φ5±0.02mm
Display resolution	0.01mm
Display value	Clamping force, stamping force, displacement and cup drawing value, speed rate, drawing force - displacement curve
Control method	Computer automatic test process
Structure features	Composite cylinder, double oil pump supply oil, grating measurement

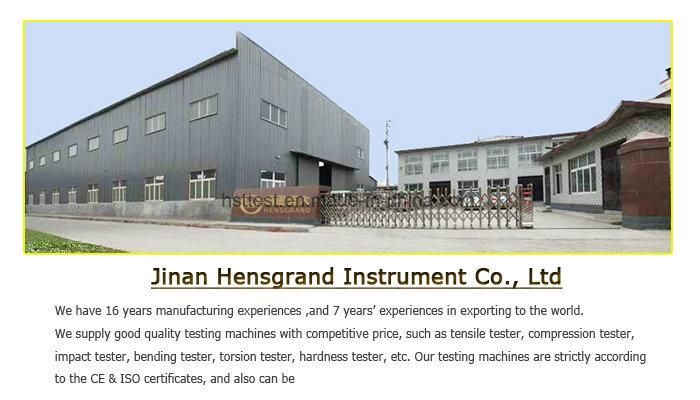

Our Factory:




Jinan Hensgrand Instrument Co., Ltd. was established in 2001, is specialized in developing and manufacturing of testing equipments. The machiens are designed to test mechanical property of metal, non-metal and composite materials.

Our main products are Hydraulic Universal Test Machine, Electronic Universal Test Machine, Compression Testing Machine, Spring Testing Machine, Impact Testing Machine, Torsion Testing Machine, Hardness Tester, Testing Machine Accessories, etc.

our Service:
Lifelong after-sales service & maintenance;
24 hours' consult pre-sale on line or by Phone
Overseas training, installation is avaliable.
F A Q
1.Are your company a trading one or a factory?
Factory + trade (integration),15 years focusing on test instruments field,6 years exporting experience.
2.After an order is placed, when to deliver?
Generally about 25 days,  If  we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
12 months warranty. Besides,we can help you to repair your problem controller freely,even it's not from our factory. What you need to do is to send us the controller.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in
a professional and timely.
4.What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
Product use training, each of our product provide video training to show you how to install & operate.
All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
♥ And welcome to our company! We display more new design in our showroom.
