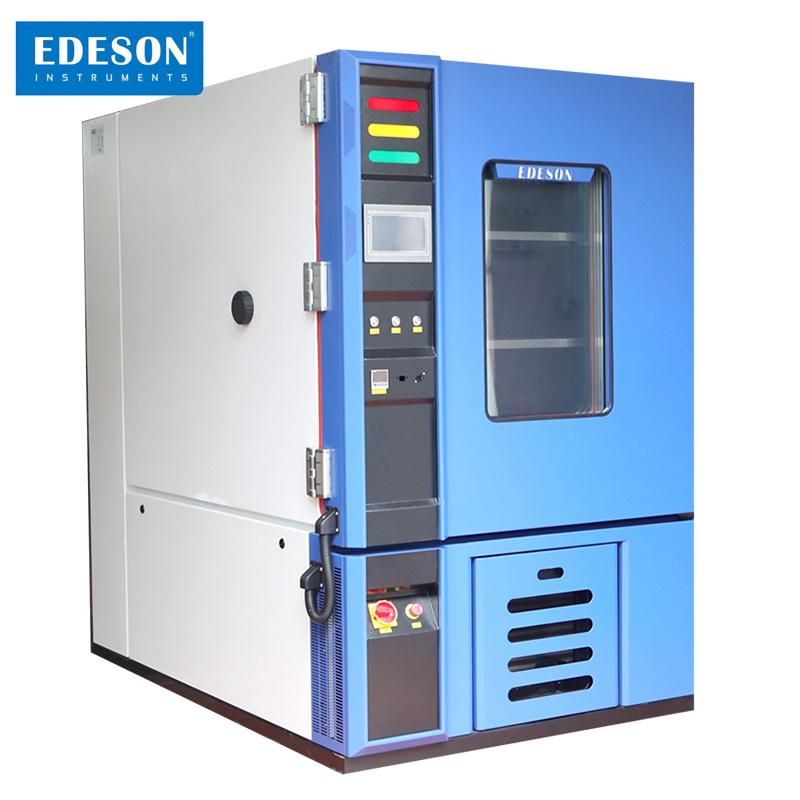

Fast Temperature Change Test for Electronics, Plastics, Auto Parts
Ningbo Edeson Instrument Co., Ltd.- After-sales Service：24 Hours on Line Services
- Power Supply：380V
- Warranty：1 Year
- Temperature Range：-55~+100ºC
- Temperature Fluctuation：±0.5ºC
- Temperature Deviation：±2.0ºC
Base Info
- Model NO.：ESS-100LC
- Humidity Range：20~98%Rh.(Optional)
- Humidity Deviation：±3.0%Rh(>75%Rh)
- Temp. Change Rate：5ºC,Min
- Internal Size：500*420*500
- External Size：750*1450*1650
- External Material：Cold Rolled Steel
- Internal Material：SUS304 Stainless Steel Plate
- Compressor：France "Tecumseh"
- Controller：7 Inch LCD Colorful Touch Screen
- Quality：Assurance
- Transport Package：Wooden Box
- Specification：Standard and Customized
- Trademark：EDESON
- Origin：Ningbo China
- HS Code：90321000
- Production Capacity：100PCS,Year
Description
1. All terms of temperature change rate are the average change rate of air in the whole
process, not the product temperature change rate;
2. The temperature change rate will vary according to the specimen load, specimen material structure and temperature range;3. The overall dimension is determined according to the temperature rise and fall rate
4. Cooling water temperature (ensuring cooling performance): 10 ~ 28 ºC, water pressure 0.1~ 0.3MPa.
