• Model NO.：WG-1C
• Accuracy Grade：1
• Load Way：No
• Loading Method：No
• Display：Digital
• Control：No
• Weight：300kg
• Power Source：No
• Oil Cylinder Position：No
• Product Name：Consolidation Apparatus and Oedometer Front Loadin
• Specimen Area：30cm2, 50cm2
• Specimen Number：3
• Pressure Range：12.5-800kpa, 12.5-400kpa
• Load Grade：12.5, 25, 50, 100, 200, 300, 400, 800
• Lever Ratio：12: 1 (MID and Low Pressure) Lever Ratio : 12:1 (M
• Frame：Steel Structure
• Transport Package：Wooden Case
• Specification：1.1CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. WG-1C Accuracy Grade 1 Load Way No Loading Method No Display Digital Control No Weight 300kg Power Source No Oil Cylinder Position No Product Name Consolidation Apparatus and Oedometer Front Loadin Specimen Area 30cm2, 50cm2 Specimen Number 3 Pressure Range 12.5-800kpa, 12.5-400kpa Load Grade 12.5, 25, 50, 100, 200, 300, 400, 800 Lever Ratio 12: 1 (MID and Low Pressure) Lever Ratio : 12:1 (M Frame Steel Structure Transport Package Wooden Case Specification 1.1CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

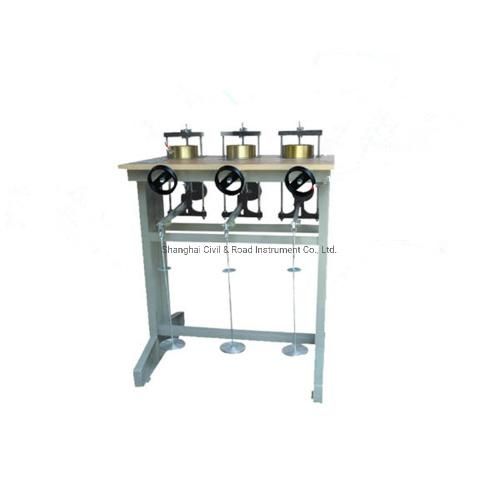

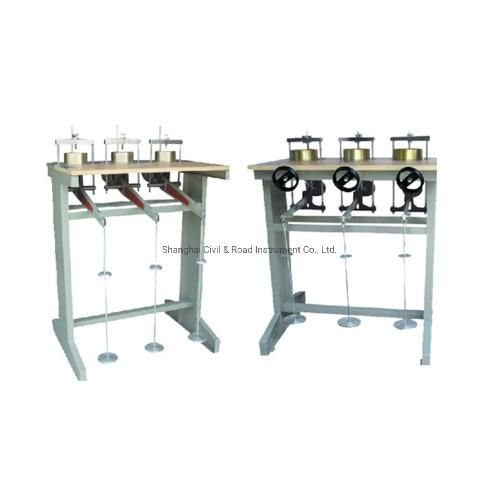

WG-1C Low Pressure Consolidation Apparatus and Oedometer front loading

Standard:BS 1377:5  ASTM D2435, D3877

Application:
The instrument is used to carry out the compression test of soil, determine the relationship between soil deformation and pressure or pore ratio and pressure, and the relationship between deformation and time, calculate the unit settlement of soil, compression coefficient and index, rebound index, compression modulus, Consolidation factor, etc., the measurement items are determined by engineering needs.

It is a midium pressure consolidation instrument after the low pressure consolidation instrument. It can be used for both low pressure test and medium pressure test.
Features: This machine is mainly composed of compression containers and pressurized equipment, weight, etc. In the tripli form.Stress points use bearing structure.
Technical Parameters:

Specimen area	30cm2, 50cm2
Specimen number	3
Pressure range	12.5-800KPa, 12.5-400KPa
Load grade	12.5, 25, 50, 100, 200, 300, 400, 800
Lever ratio	12: 1 (mid and low pressure) Lever ratio : 12:1 (Mid and low pressure) 20:1, 24:1 (High pressure)
Frame	Steel structure
