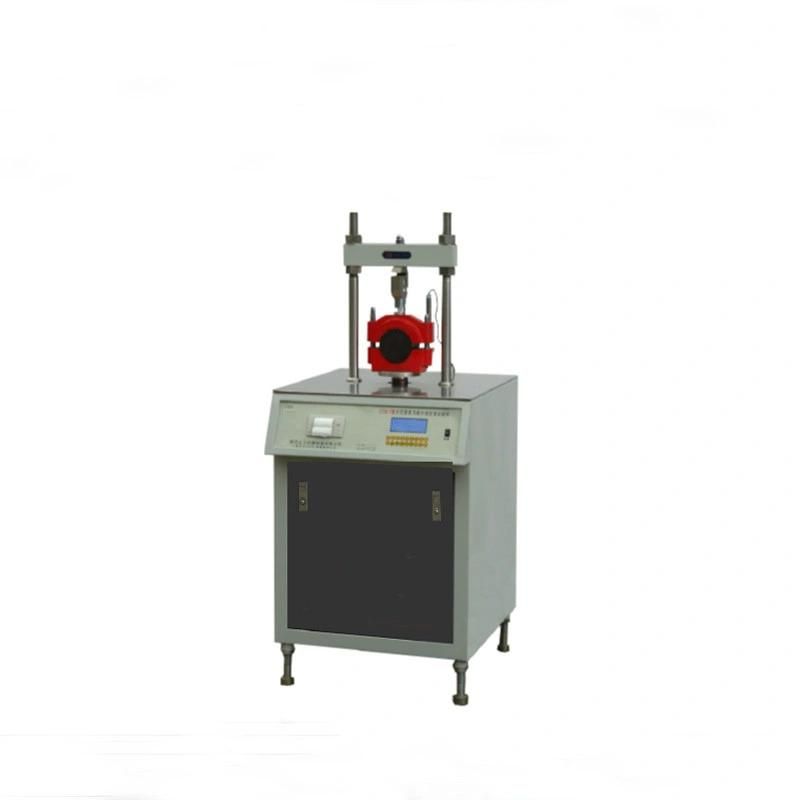

Stm-7 Marshall/Indirect Tensile Digital Compression Tester
Shanghai Civil & Road Instrument Co., Ltd.- After-sales Service：24 Hours Online Support
- Warranty：1 Year
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Marshall Stability Tester
- Maxcapacity：No
Base Info
- Model NO.：STM-7
- Accuracy Grade：1
- Load Way：No
- Loading Method：No
- Display：Needle
- Control：Digital Display
- Weight：135kg
- Power Source：AC220V
- Oil Cylinder Position：No
- Product Name：Stm-7 Marshall,Indirect Tensile Digital Compressio
- Complies to：ASTM D1559
- Loading：0-50kn; Loading Error: ±0.05% (F.S)
- Displacement：0-10mm; Displacement Error:± 0.05% (F.S)
- Loading Speed：50.8mm,Min
- Environment：Temperature: -10c-35c; Relative Humidity: No Highe
- Supplied with One Breaking Head：Diameter 101.6mm or 152.4mm
- Features：Equipped with One S Shape Load Cell and Displacem
- Transport Package：Wooden Case
- Specification：0.45CBM
- Trademark：SHTG
- Origin：China
- HS Code：9031809090
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. STM-7 Accuracy Grade 1 Load Way No Loading Method No Display Needle Control Digital Display Weight 135kg Power Source AC220V Oil Cylinder Position No Product Name Stm-7 Marshall/Indirect Tensile Digital Compressio Complies to ASTM D1559 Loading 0-50kn; Loading Error: ±0.05% (F.S) Displacement 0-10mm; Displacement Error:± 0.05% (F.S) Loading Speed 50.8mm/Min Environment Temperature: -10c-35c; Relative Humidity: No Highe Supplied with One Breaking Head Diameter 101.6mm or 152.4mm Features Equipped with One S Shape Load Cell and Displacem Transport Package Wooden Case Specification 0.45CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/MonthProduct Description
STM-7 Marshall/Indirect tensile digital compression testerParameters.
| Product name | STM-7 Marshall/Indirect tensile digital compression tester |
| Complies to | ASTM D1559 |
| Loading | 0-50kN; Loading error: ±0.05% (F.S) |
| Displacement | 0-10mm; Displacement error:± 0.05% (F.S) |
| Loading speed | 50.8mm/min. |
| Environment | Temperature: -10ºC-35ºC; Relative Humidity: no higher than 85% |
| Supplied with one breaking head | diameter 101.6mm or 152.4mm |
| Features | Equipped with one S shape load cell and displacement sensors, peak value automatically preserved and printing, the prin cipal axis automatically fall after printing |
