Single Phase or Three Phase Transformer Voltage Ratio/Connection Group Test Automatic Turns Ratio Tester

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Turns Ratio Measurement Range：1~10000
  • Group Measurement Range：1~12 Points
  • Test Standards：IEC76-1,IEC60044
  • Excitation Current Measurement Range：0~200mA
  • Excitation Current Measurement Error：<0.1mA
  • Product：Gdbc-901transformer Turns Ratio Tester

Base Info

  • Model NO.：GDBC-901
  • Transport Package：Plywood Case
  • Specification：22kg
  • Trademark：GOLD
  • Origin：Chongqing, China
  • HS Code：9030849000
  • Production Capacity：500 Pieces,Month

Description

1Turns ratio measurement range1~100002Group measurement range1~12 points3Phase angle measurement error<2 degrees4Transformation ratio measurement error1~1000±0.2%RDG,
1000~10000±0.5%RDG5Excitation current measurement range0~200mA6Excitation current measurement error<0.1mA7Display size7 inches8Input powerAC220V±10%, 50Hz/60Hz

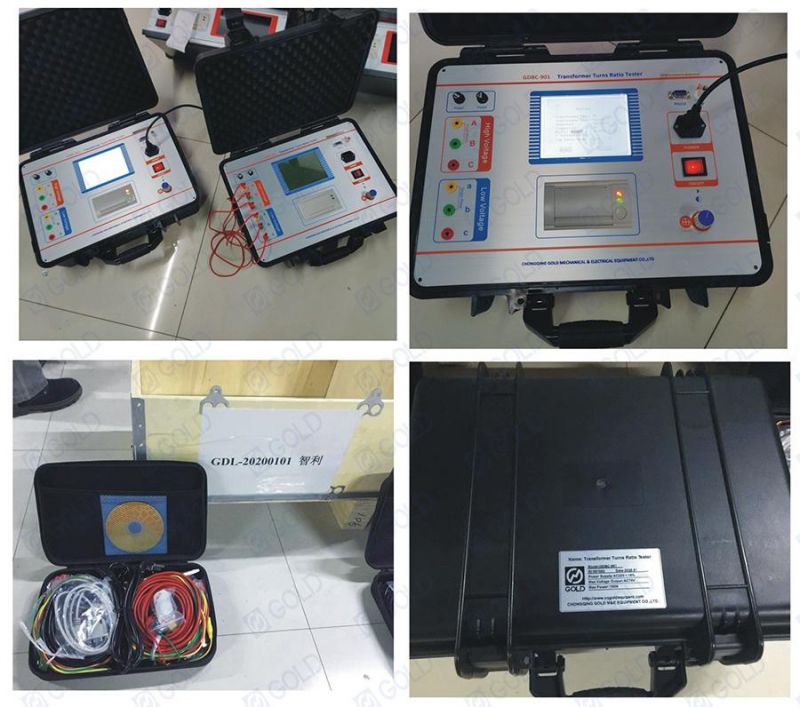

Pictures

Single Phase or Three Phase Transformer Voltage Ratio/Connection Group Test Automatic Turns Ratio Tester

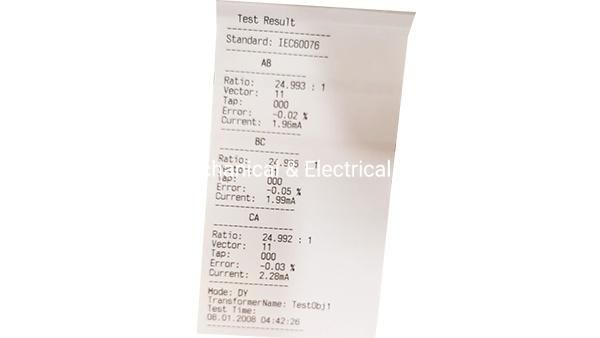

Test Results
Single Phase or Three Phase Transformer Voltage Ratio/Connection Group Test Automatic Turns Ratio Tester

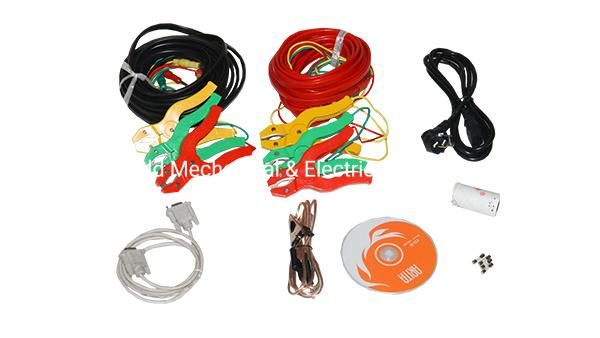

Spare Parts

Single Phase or Three Phase Transformer Voltage Ratio/Connection Group Test Automatic Turns Ratio Tester
